Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A

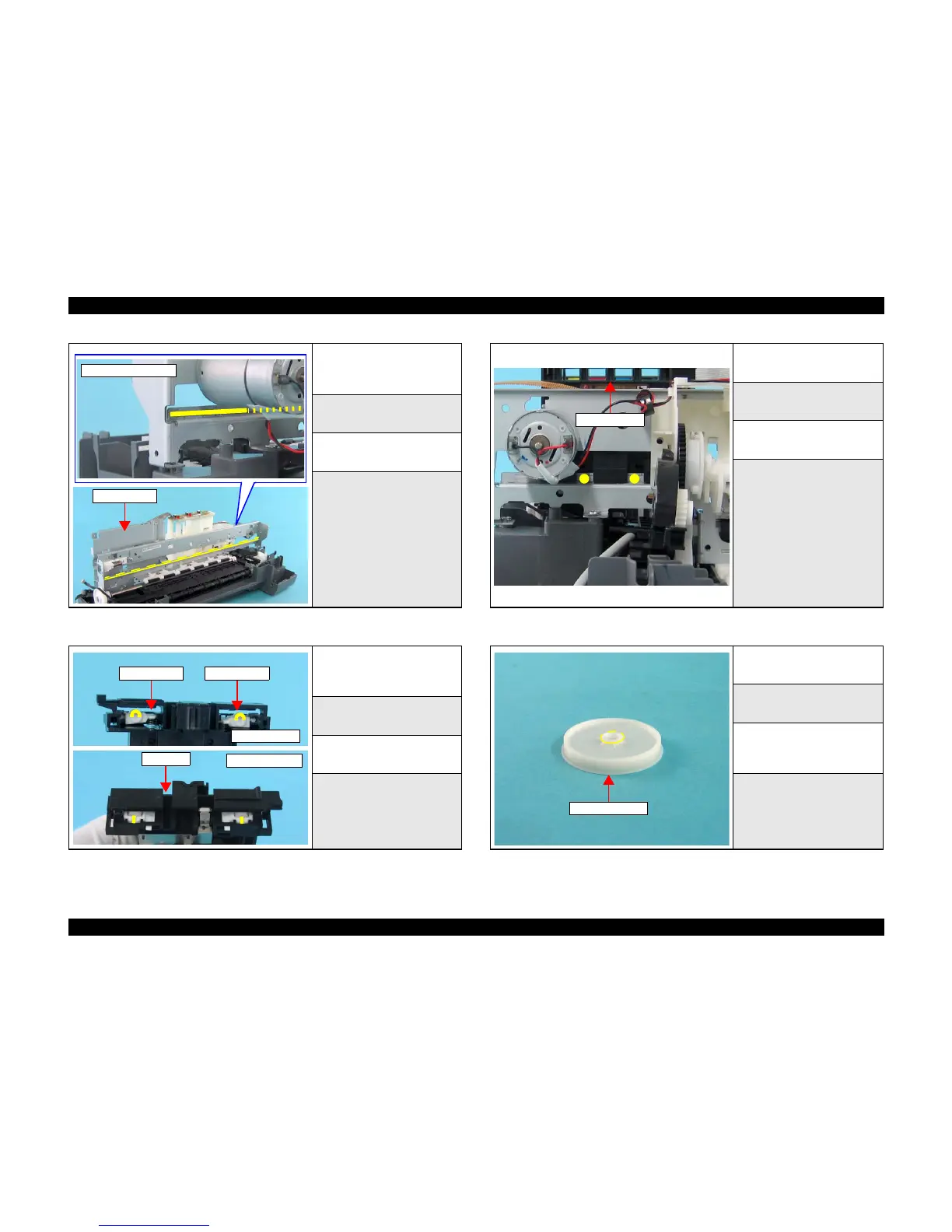

MAINTENANCE Overview 93
Figure 6-6. Lubrication on Main Frame
Figure 6-7. Lubrication on Roller Guide
Figure 6-8. Lubrication on I/C Holder
Figure 6-9. Lubrication on EJ drive pulley
<Lubrication Point>
Front and rear faces of the Main
Frame Carriage Slide
<Lubrication Type>
G-58
<Lubrication Amount>
360 mm x 2 face
<Remarks>
• G-58 moust not be adhered to
other parts.
<Lubrication Point>
Contact point between Roller
Guide and Roller Unit
<Lubrication Type>
G-58
<Lubrication Amount>
φ1 mm x 4 points
<Remarks>
Use a injector to apply.
• G-58 moust not be adhered to
other parts.
Main Frame
Rear side view
Roller Guide
Upper side view
Roller Unit
PrintHead
Bottom side view
<Lubrication Point>
Back side slit of I/C Holder
<Lubrication Type>
G-71
<Lubrication Point>
φ 3mm x 3mmφ
<Remarks>
• G-58 moust not be adhered to
other parts.
<Lubrication Point>
EJ drive pulley Shaft Surface
<Lubrication Type>
G-58
<Lubrication Amount>
φ1 mm x diameter of EJ drive
pulley
<Remarks>
• G-58 moust not be adhered to
other parts.
I/C Holder
EJ drive pulley
