Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A
MAINTENANCE Overview 94

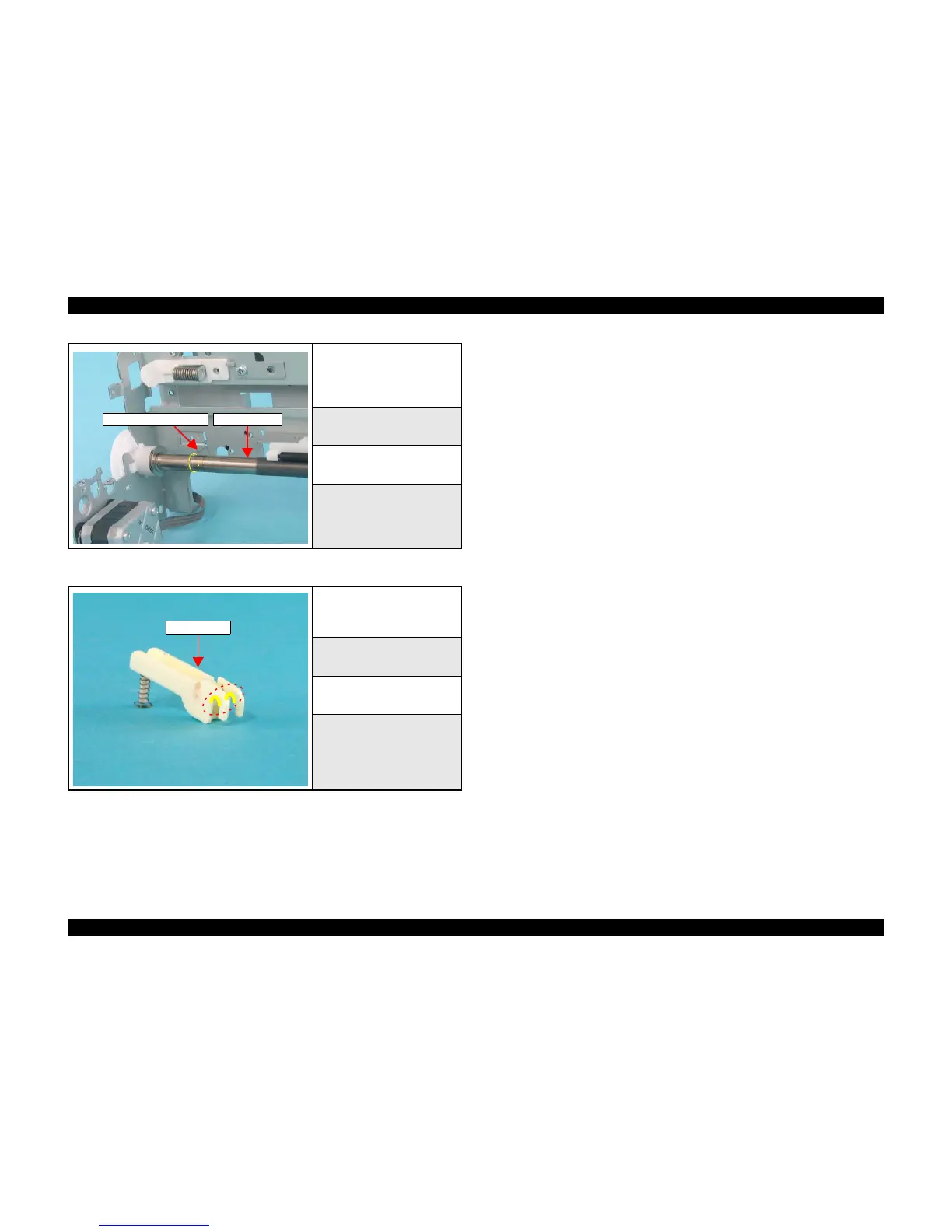

Figure 6-10. Lubrication on PF Roller Unit
Figure 6-11. Lubrication on Idle Roller Assy
<Lubrication Point>
Contact point between the PF
Grounding Spring and the PF
Roller Unit
<Lubrication Type>
G-58
<Lubrication Point>
φ 1 mm x 0.5 mm
<Remarks>
Use a brush to apply.
• G-58 moust not be adhered to
other parts.
<Lubrication Point>
U-shaped part for the Idle roller
assy
<Lubrication Point>
G-58
<Lubrication Amount>
U-shaped part :
φ 1 mm x 2 points
<Remarks>
• G-58 must not be adhered to
other parts such as pinion face
of the PF Motor or the Timing
Belt
PF Roller UnitPF Grounding Spring
Idle roller assy
