DISASSEMBLY/ASSEMBLY Overview 36
Confidential
Note *1 : “A”: Epson Stylus C58/C59/ME 2
“B”: Epson Stylus C79/D78/C90/C91/C92/D92
“C”: Epson Stylus T20/T20E/T23/T26/S20/T10/T11/ME 30/T21/T24/T27/S21

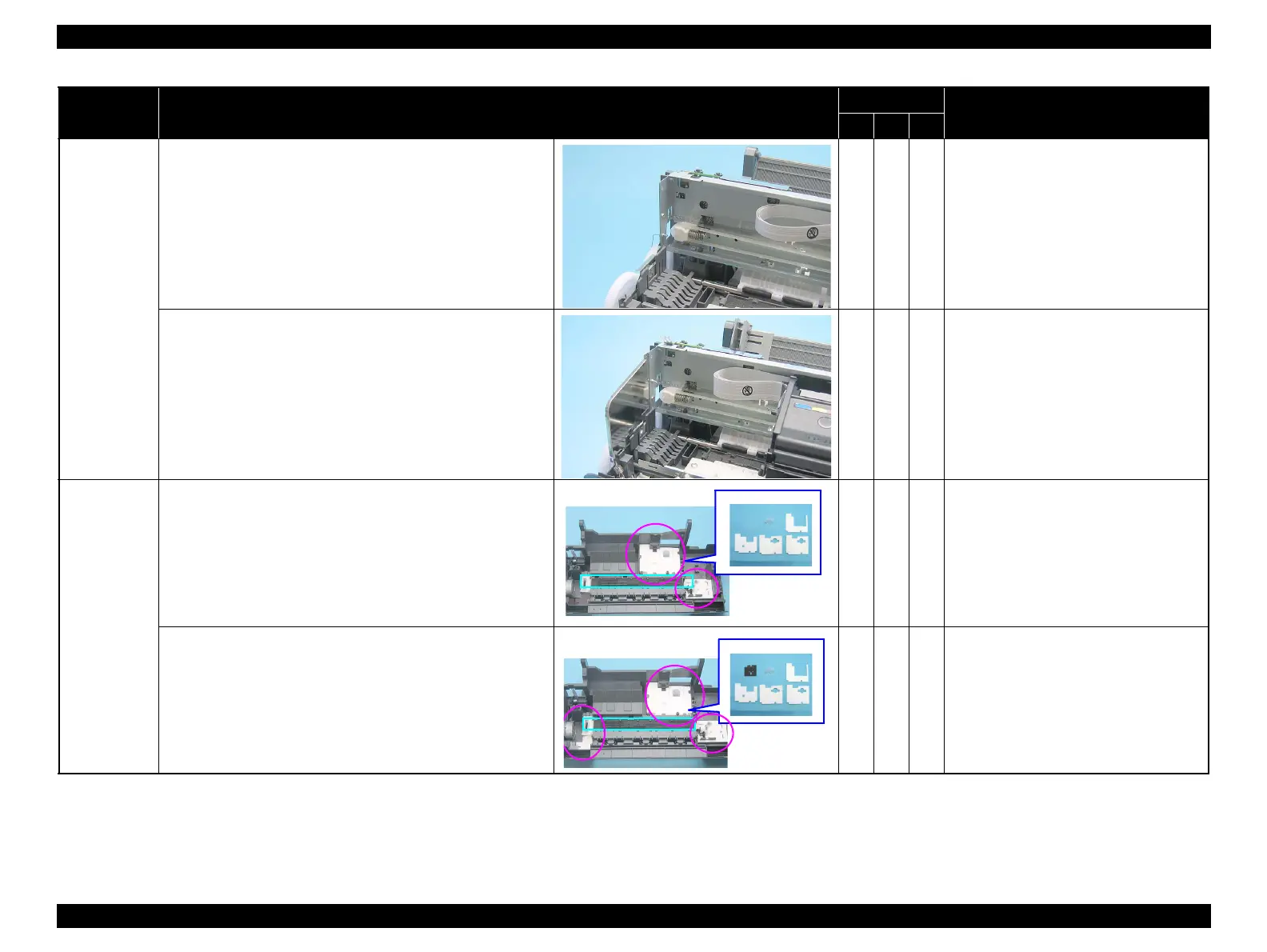

Shield Plates
Shield Plate L is small. 3 -- 3 see 4.5.8 EJ Frame Assy/EJ Roller (p54)
Shield Plate L is large. -- 3 -- see 4.5.9 Main Frame (p56)
Waste Ink Pad
7 parts 3 -- -- see 4.6.2 Waste Ink Pads (p67)
9 parts -- 3 3 see 4.5.11 Waste Ink Pads (p61)
