Epson Stylus C79 User Manual

Epson Stylus C58/C59/ME 2/C79/D78/C90/C91/C92/D92/T20/T20E/T23/T26/S20/T10/T11/ME 30/T21/T24/T27/S21 Revision E
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 54
Confidential

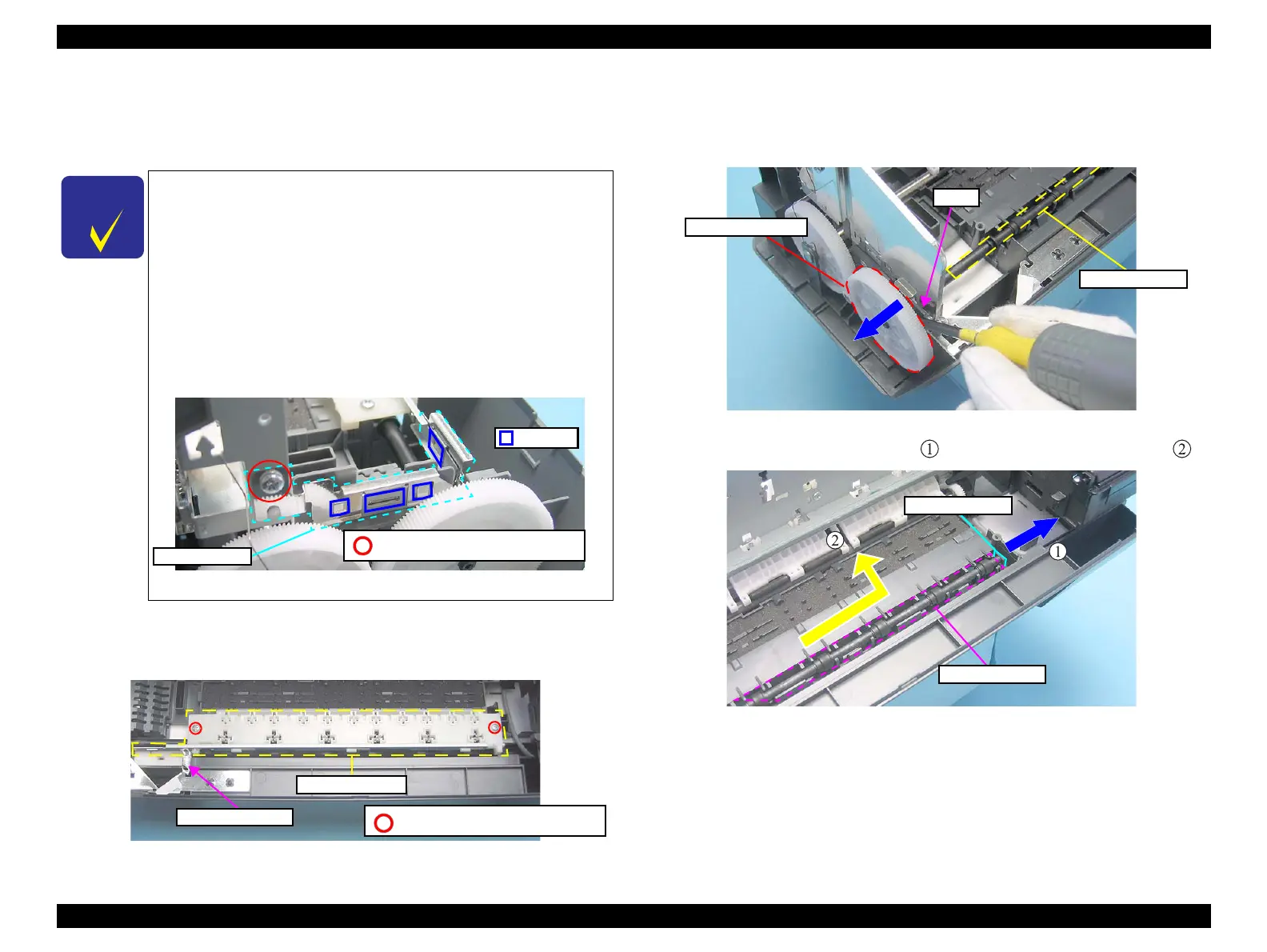

4.5.8 EJ Frame Assy/EJ Roller
 Part/Unit that should be removed before removing EJ Frame Assy/EJ Roller
Upper Housing
 Removal procedure
 EJ Frame Assy removal
1. Remove the screws (x2) and remove the EJ Frame Assy.
Figure 4-49. Removing EJ Frame Assy.
 EJ Roller Removal
2. Insert a flathead screwdriver between the rib and the Spur Gear, 59.6 and push
the gear in the direction of the arrow, and remove the Spur Gear, 59.6
Figure 4-50. Removing EJ Roller (1)
3. Pull the bearing slightly (Arrow ), and remove the EJ Roller (Arrow ).
Figure 4-51. Removing EJ Roller (2)
C H E C K
P O I N T
 When installing Spur Gear, 59. 6 and the EJ Roller, be sure to
install new ones. These parts cannot be reused.
 Before starting the removal procedure, the preparing
procedure is needed.
 In the case of Epson Stylus C79/D78/C90/C91/C92/D92
Remove the Grounding Spring (See Figure 4-53 (p.56)) from
the EJ Frame Assy.
 In the case of Epson Stylus C58/C59/ME2/T20/T20E/T23/T26/S20/
T10/T11/ME 30/T21/T24/T27/S21
Remove the screw (x1), and release the hooks and remove the
Shield Plate L.
Figure 4-48. Epson Stylus C58/C59/ME2’s Preparation for removal
Hooks
C.B.S 3X6 (Torque: 6±1Kgf.cm)
Shield Plate L
EJ Frame Assy
Grounding Spring
C.B.P 3X8 (Torque: 6±1Kgf.cm)
EJ Roller
Spur Gear,59.6
Rib
EJ Roller
Bearing
