Epson Stylus C79 User Manual

Epson Stylus C58/C59/ME 2/C79/D78/C90/C91/C92/D92/T20/T20E/T23/T26/S20/T10/T11/ME 30/T21/T24/T27/S21 Revision E
DISASSEMBLY/ASSEMBLY Removing Housing 38
Confidential
4.3 Removing Housing
4.3.1 Upper Housing
 Part/Unit that should be removed before removing Upper Housing
None
 Removal Procedure
1. Remove the screws (x2) on the back of the printer.
2. While releasing the tab (x1) on the back, release the tabs (x2) on both sides of
the printer with a flathead screwdriver.

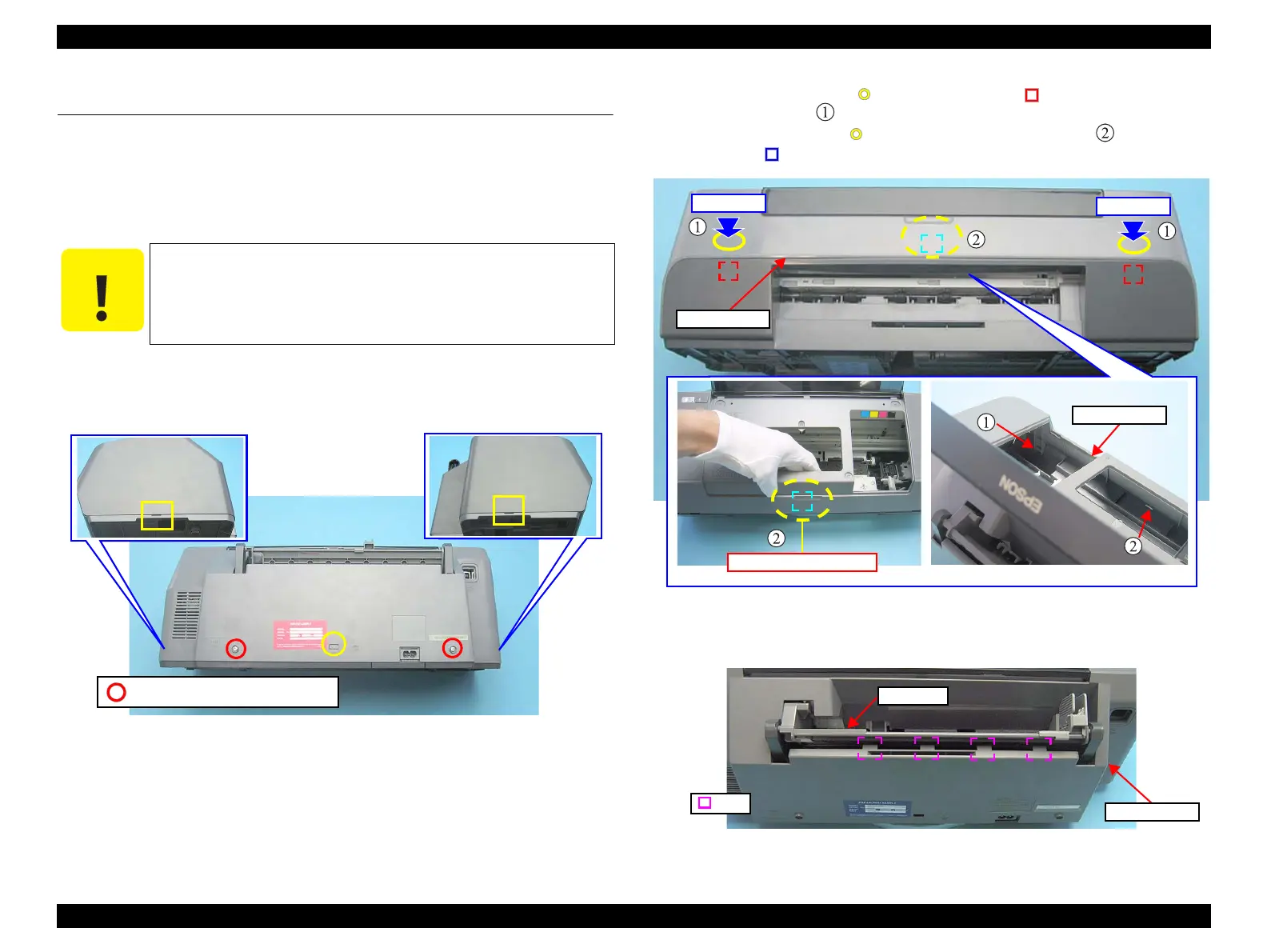

Figure 4-3. Removing Upper Housing (1)
3. Push the marked area ( )to release the tabs (x2, ) on the front side of the
printer (Arrows ).
4. Push the dotted area ( ) from inside as shown in the figure to release the
tab (x1, ) in the middle.
Figure 4-4. Removing Upper Housing (2)
5. Remove the Upper Housing taking care not to scratch the Hopper with the
tabs.
Figure 4-5. Removing Upper Housing (3)
C A U T I O N
When releasing the tabs on the sides, be careful not to scratch the
surface with a screwdriver. The coating is fragile and can be easily
damaged.
C.B.S 3X6 (Torque: 6±1Kgf.cm)
Upper Housing
Push here
Push here
Push here from inside
Upper Housing
:Tab
Hopper
Upper Housing
