EPSON Stylus COLOR 440, 640, and 740 Chapter 4 Disassembly and Assembly

114

4.2.4.10 Removing the HP Sensor

1. Remove the housin

(

Refer to Section 4.2.1.

)

2. Remove the HP sensor b

releasin

the hooks underneath it.

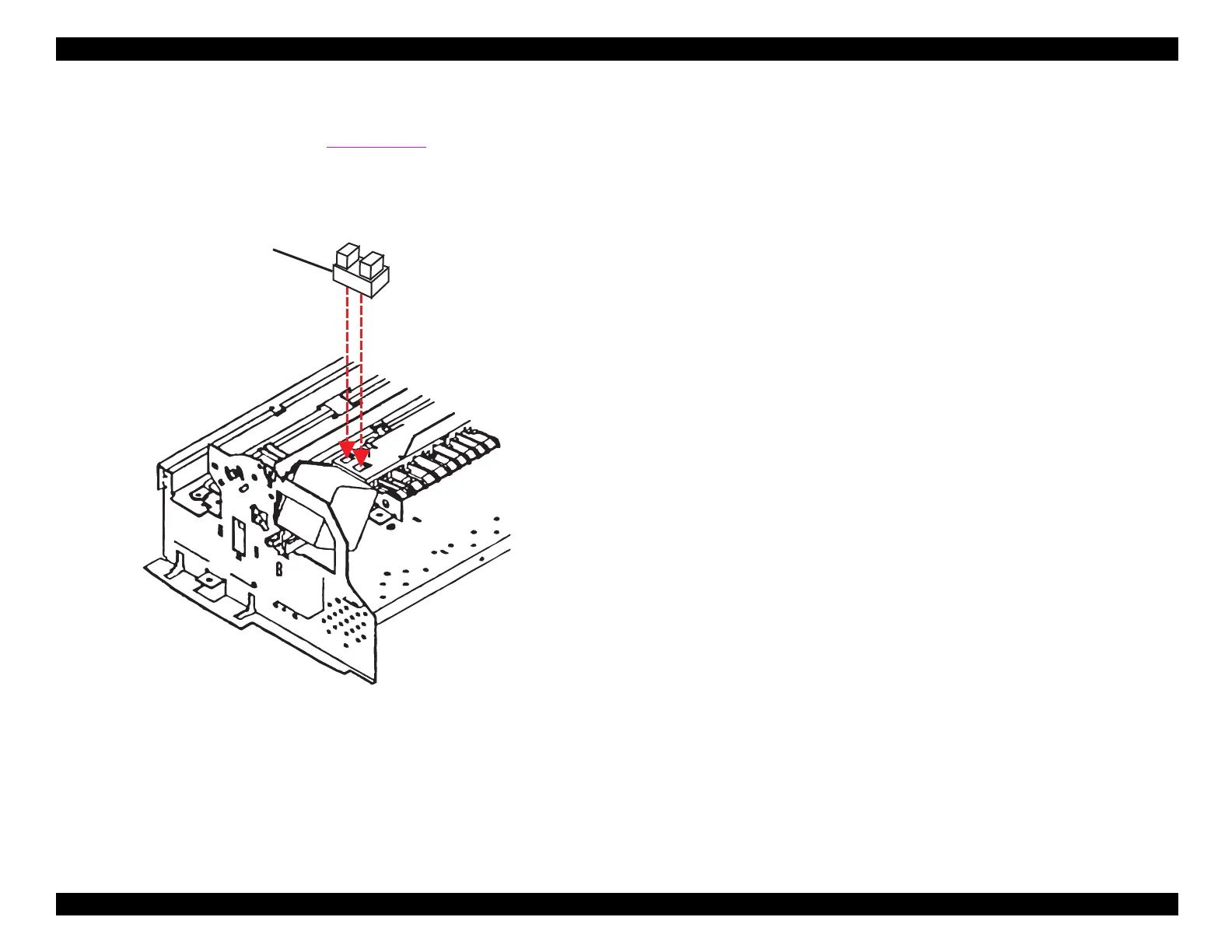

Figure 4-24. Removing the HP Sensor

H P S ensor
