EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
PRODUCT DESCRIPTION Specifications 11
1.2 Specifications
1.2.1 Printer specifications
This section covers specifications of the printer.
1.2.1.1 Physical Specification
V Weight
T Stylus CX3500/CX3600/CX3650 : 6.52kg (without the ink cartridges)
T Stylus CX4500/CX4600 : 6.6kg (without the ink cartridges)
V Dimension (Including rubber feet)
T Printing : 430mm (W) x 500mm (D) x 280mm (H)
T Storage : 430mm (W) x 344mm (D) x 170mm (H)
1.2.1.2 Printing Specification
V Print Method
T On demand ink jet
V Nozzle Configuration
T Monochrome 90 nozzles
T Color 90 nozzles x 3 (Cyan, Magenta, Yellow)

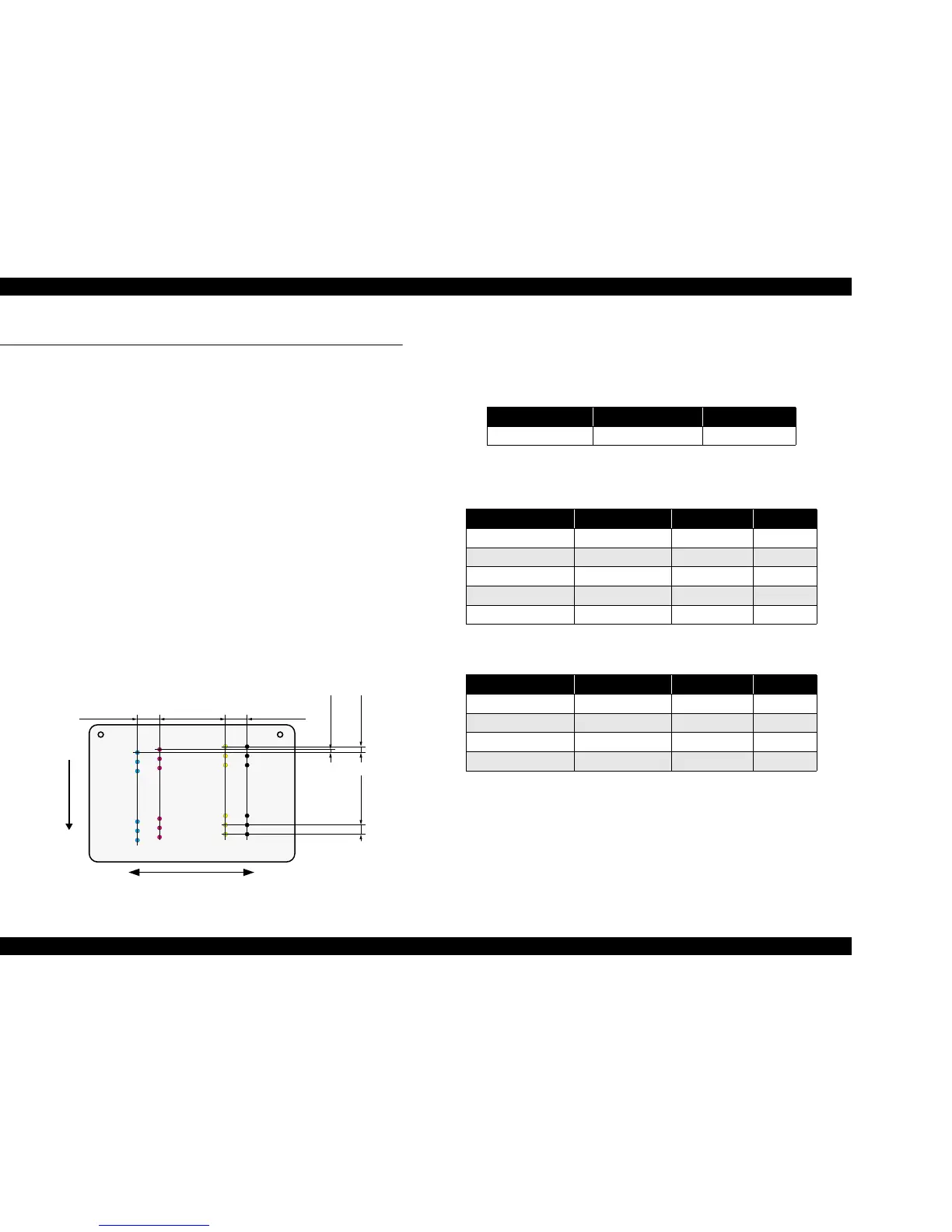

Figure 1-2. Nozzle configuration
V Print Direction
T Bi-directional minimum distance printing (with logic seeking)
V Print Speed & Printable Columns
Note "*": CPS: Characters/Second
This speed is when using normal dot printing mode.
Note "*": Draft Printing
Note "*": Except Draft Printing
V Control Code
T ESC/P Raster command
T EPSON Remote command
#A3
#A2
#A1
BlackCyan Magenta Yellow
2.822
(40/360inch)
A row B row C row D row
#A90
#A89
#A88
#B3
#B2
#B1
#B89
#B88
#B90
#C3
#C2
#C1
#C89
#C88
#C90
#D3
#D2
#D89
#D88
#D90
#D1
8.467
(120/360inch)
2.822
(40/360inch)
0.2117
(3/360inch)
0.1411
(2/360inch)
0.107055
(1/360inch)
Carriage Moving Direction
Paper Feed Direction
Table 1-2. Character mode
Character pitch Printable columns CR speed
10 CPI (Pica) 80 285 CPS*
Table 1-3. Graphics mode (standard)
Horizontal resolution Printable area Max. dot count CR speed
360dpi* 209.8mm (8.26") 2976 285cps
360dpi 209.8mm (8.26") 2976 285cps
720dpi 209.8mm (8.26") 5952 285cps
1440dpi 209.8mm (8.26") 11904 285cps
2880dpi 209.8mm (8.26") 23808 285cps
Table 1-4. Graphics mode (border-free printing)
Horizontal resolution Printable area Max. dot count CR speed
360dpi* 215.05mm (8.46") 3048 285cps
720dpi 215.05mm (8.46") 6096 285cps
1440dpi 215.05mm (8.46") 12192 285cps
2880dpi 215.05mm (8.46") 24384 285cps
