EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 120
4.3.2 Paper Support Assy.
V External View

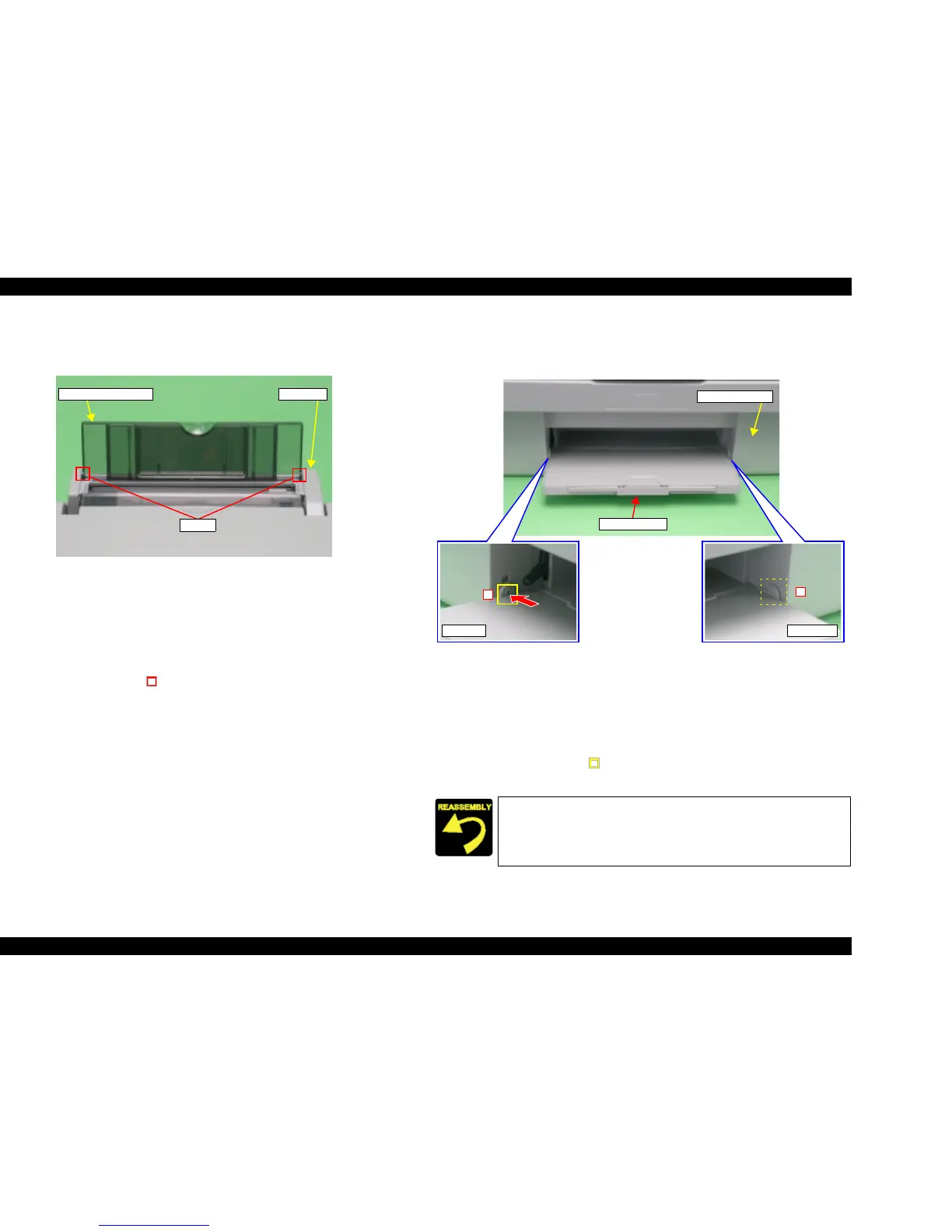

Figure 4-3. Paper Support Assy. Removal
V Part/Unit that should be removed before removing Paper Support Assy.
None
V Removal procedure
1. Release the dowels (x2, ) for securing Paper Support Assy, and then
remove Paper Support Assy. from ASF Assy.
4.3.3 Stacker Assy.
V External View
Figure 4-4. Stacker Assy. Removal
V Part/Unit that should be removed before removing Stacker Assy.
None
V Removal procedure
1. Open Stacker Assy.
2. Release the dowel (x1, ) for securing Stacker Assy. by using a precision
screwdriver (-), and then remove Stacker Assy.
ASF Assy.
Paper Support Assy.
Dowel
During reassembly, install Stacker Assy according to the steps
shown in the figure.
Stacker Assy.
Housing Lower
Right side
1
Left side
2
