Epson STYLUS CX3650

EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 127
4.3.6 Housing Upper
V External View

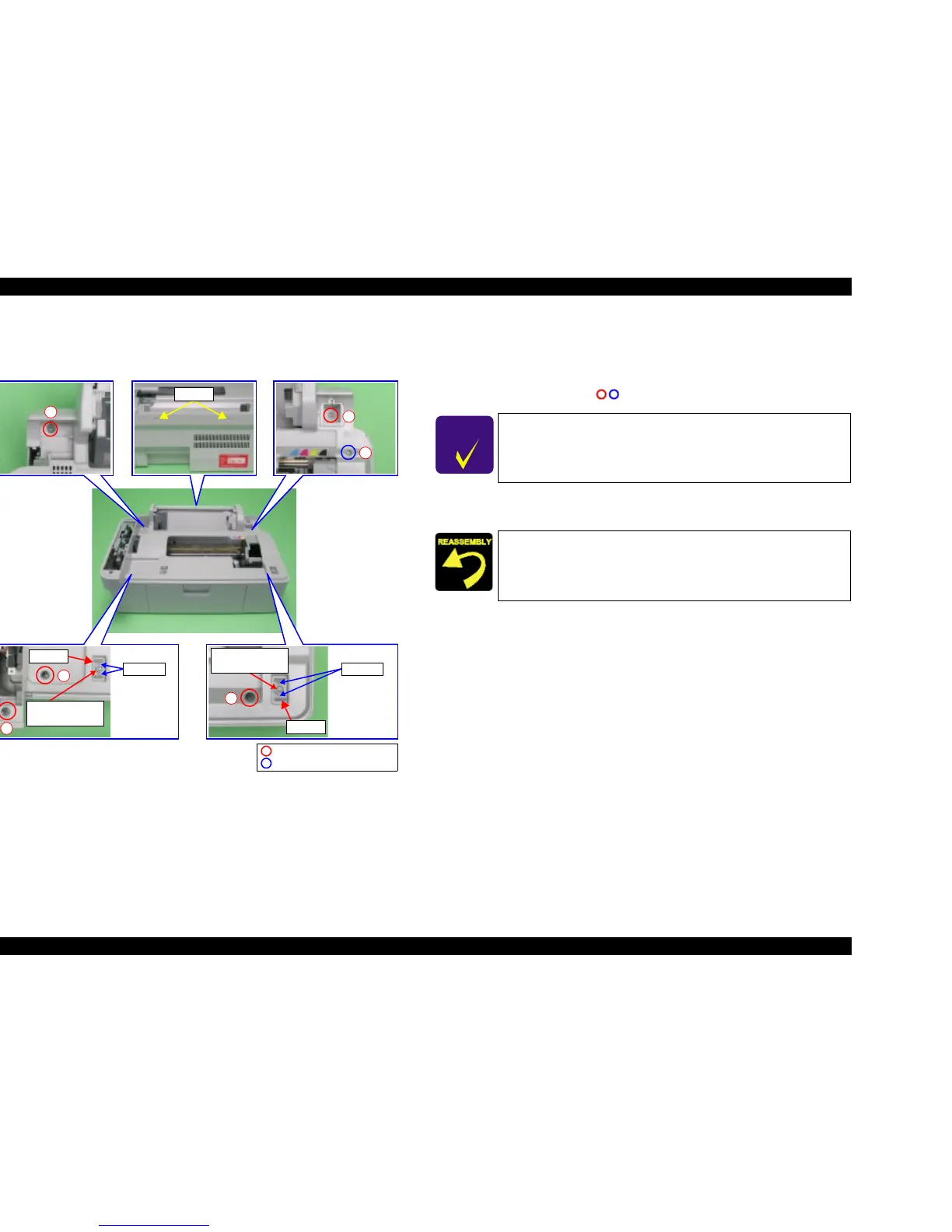

Figure 4-14. Housing Upper Removal
V Part/Unit that should be removed before removing Housing Upper.
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit
V Removal procedure
1. Remove the screws (x6, ) securing Housing Upper.
2. Release the hooks (x2) for securing Housing Upper by using a common
screwdriver, and then remove by lifting upward.
1
6
S-Lock
C.B.P 3x10 F/Zn
(4±1kgfcm)
2
S-Lock
C.B.P 3x10 F/Zn
(4±1kgfcm)
3
4
5
Hooks
Dowels
C.B.P 3x10 F/Zn (4±1kgfcm)
C.B.S 3x6 F/Zn (7±1kgfcm)
Dowels
CHECK
PO INT
T S-Locks (x2) are fastened with the screws (1 each).
T When removing S-Locks (x2), align the positioning hole of each
S-Lock (x2) with Housing Upper dowels (x2).
Tighten the screws in order shown by figure.
