EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 119
4.3.1 Document Cover
V External View

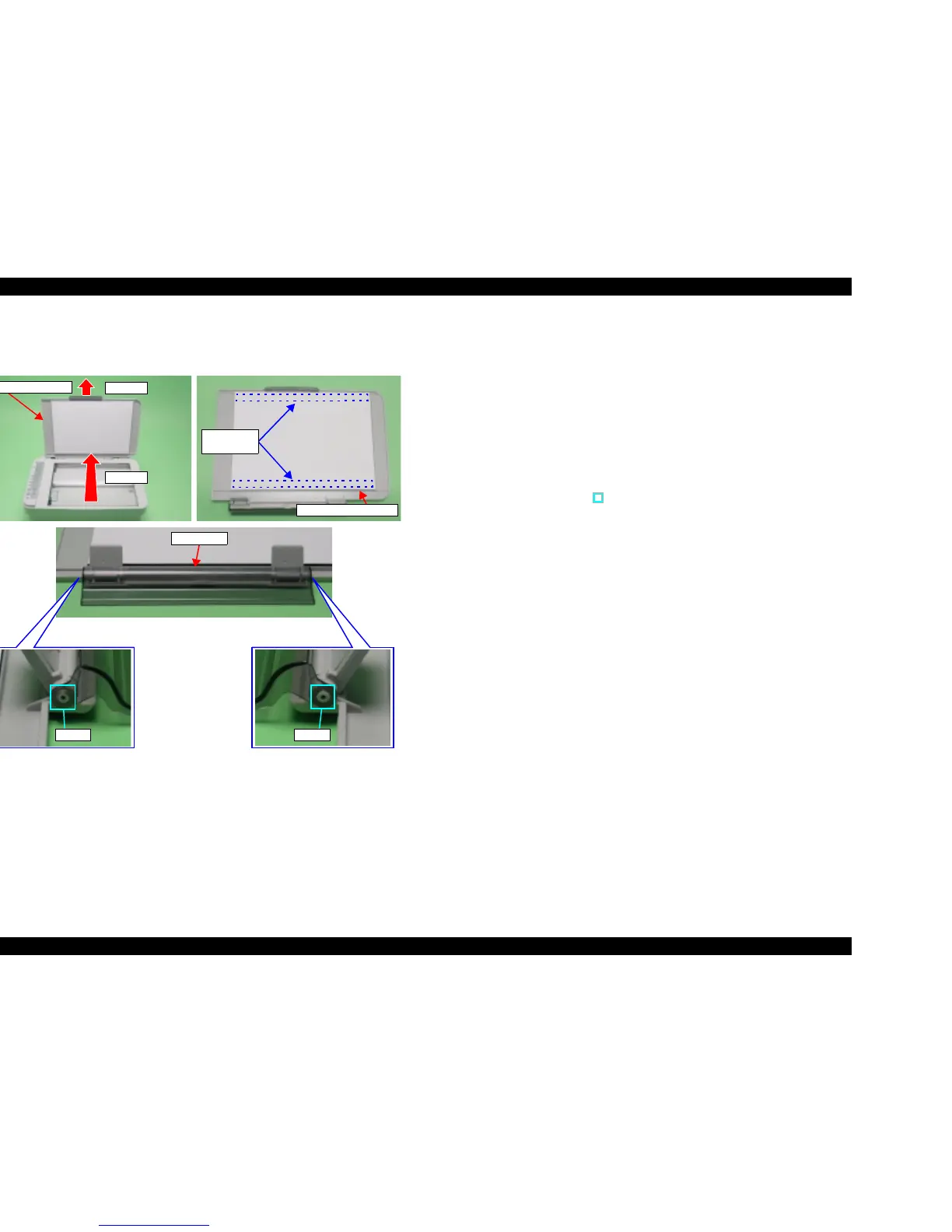

Figure 4-2. Document Cover Removal
V Part/Unit that should be removed before removing Document Cover.
None
V Removal procedure
1. Open Document Cover and remove it by pulling out upward.
T Document Cover Mat Removal
1. Remove Document Cover Mat secured to Document Cover with the double-
sided tapes (x2).
T ASF Cover Removal
1. Release the dowels (x2, ) for securing ASF Cover, and then remove it from
Document Cover.
Document Cover
Step 1-1
Step 1-2
Document Cover Mat
Double side
tapes
ASF Cover
Dowel Dowel

Epson STYLUS CX3650 Specifications

General

Printer Type	Multifunction
Print Technology	Inkjet
Max Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Max Scan Resolution	600 x 1200 dpi
Connectivity	USB
Manufacturer	Epson
Operating System Compatibility	Windows, Mac OS
Device Type	Printer / copier / scanner
Paper Sizes	A4, A5, B5, Legal, Letter
Ink Cartridges	Black, Cyan, Magenta, Yellow
