EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 122
V External View (2)

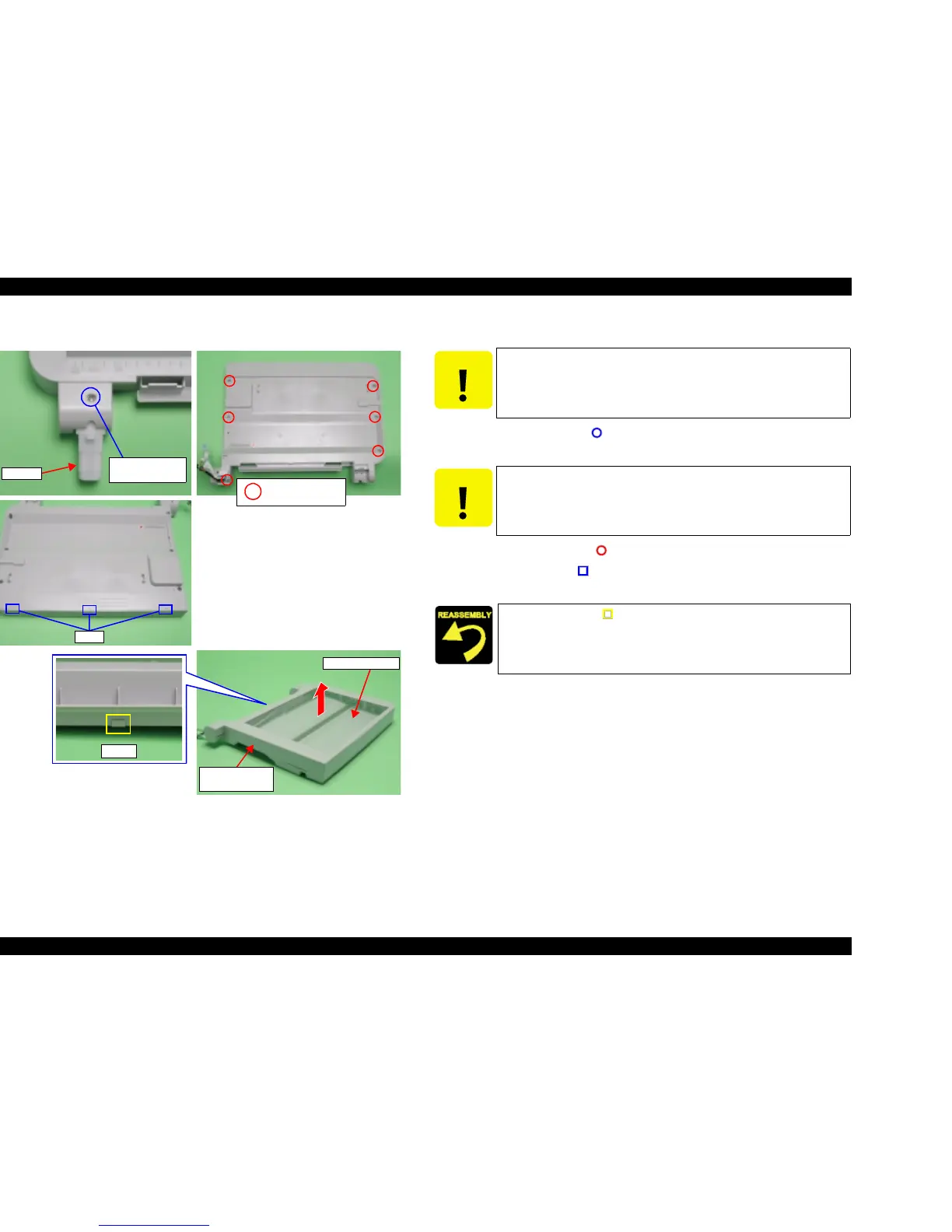

Figure 4-7. Scanner Housing Upper Removal
T Scanner Housing Upper Removal
1. Remove the screw (x1, ) for securing Hinge R, and then remove Hinge R
from Scanner Unit.
2. Remove the screws (x6, ) for securing Scanner Housing Upper.
3. Release the ribs (x3, ) for securing Scanner Housing Upper by using a
screwdriver (-), and then remove Scanner Housing Upper by lifting upward.
Ribs
Scanner Housing
Upper
Document Glass
Hinge R
C.B.P 3x10 F/Ni
(7±1kgfcm)
Hook
C.B.P 3x10 F/Zn
(5±1kgfcm)
CAUTION
Perform the following steps in a location free of dirt and dust.
A clean room or clean bench is preferred.
CAUTION
Do not damage the Document Glass of Scanner Housing Upper.
Align the hook (x1, ) of Scanner Housing Lower with the notch
(x1) of Scanner Housing Upper.
To Next Page
