EPSON Stylus C110/C120/D120 Revision B

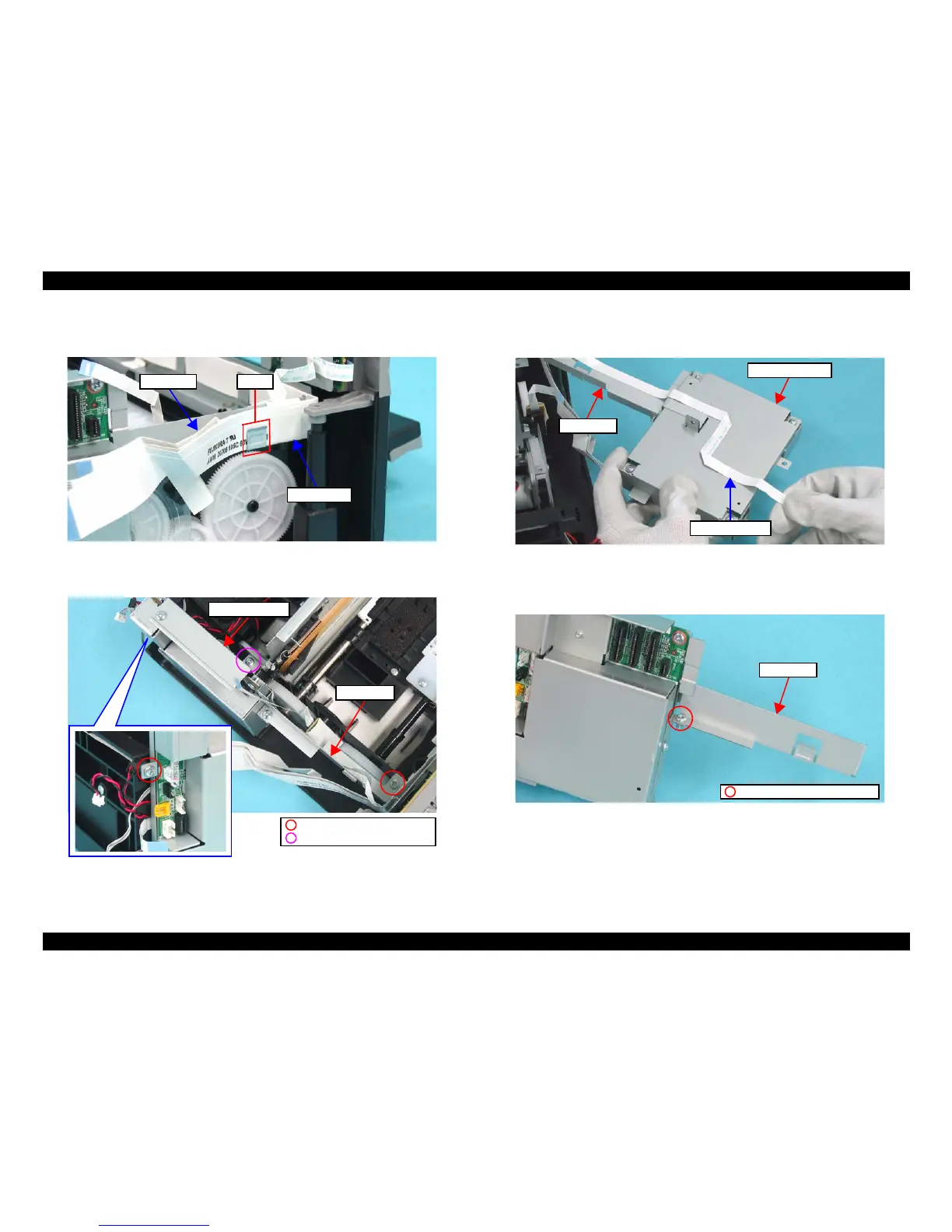

DISASSEMBLY/ASSEMBLY Removing Board 77
2. Peel off the acetate tape (x1) that secures the Head FFC and the Left Frame
together, and release the Head FFC from the hook (x1) on the Left Frame.
Figure 4-10. Removing Main Board Unit/Left Frame (1)
3. Remove the screws (x3) that secure the Main Board Unit and the Left frame.
Figure 4-11. Removing Main Board Unit/Left Frame (2)
4. Peel off the Panel Unit FFC from both the Main Board Unit and the Left Frame,
and remove them together.
Figure 4-12. Removing Main Board Unit/Left Frame (3)
5. Remove the screw (x1) that secures the Left Frame, and remove the Main Board
Unit.
Figure 4-13. Removing Main Board Unit/Left Frame (4)
Head FFC
Acetate Tape
Hook
C.B.P. 3x6, F/Zn-3C (6±1kgfcm)
C.B.S. 3x6, F/Zn-3C (6±1kgfcm)
Main Board Unit
Left Frame
Panel Unit FFC
Main Board Unit
Left Frame
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Left Frame

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
