EPSON Stylus C110/C120/D120 Revision B

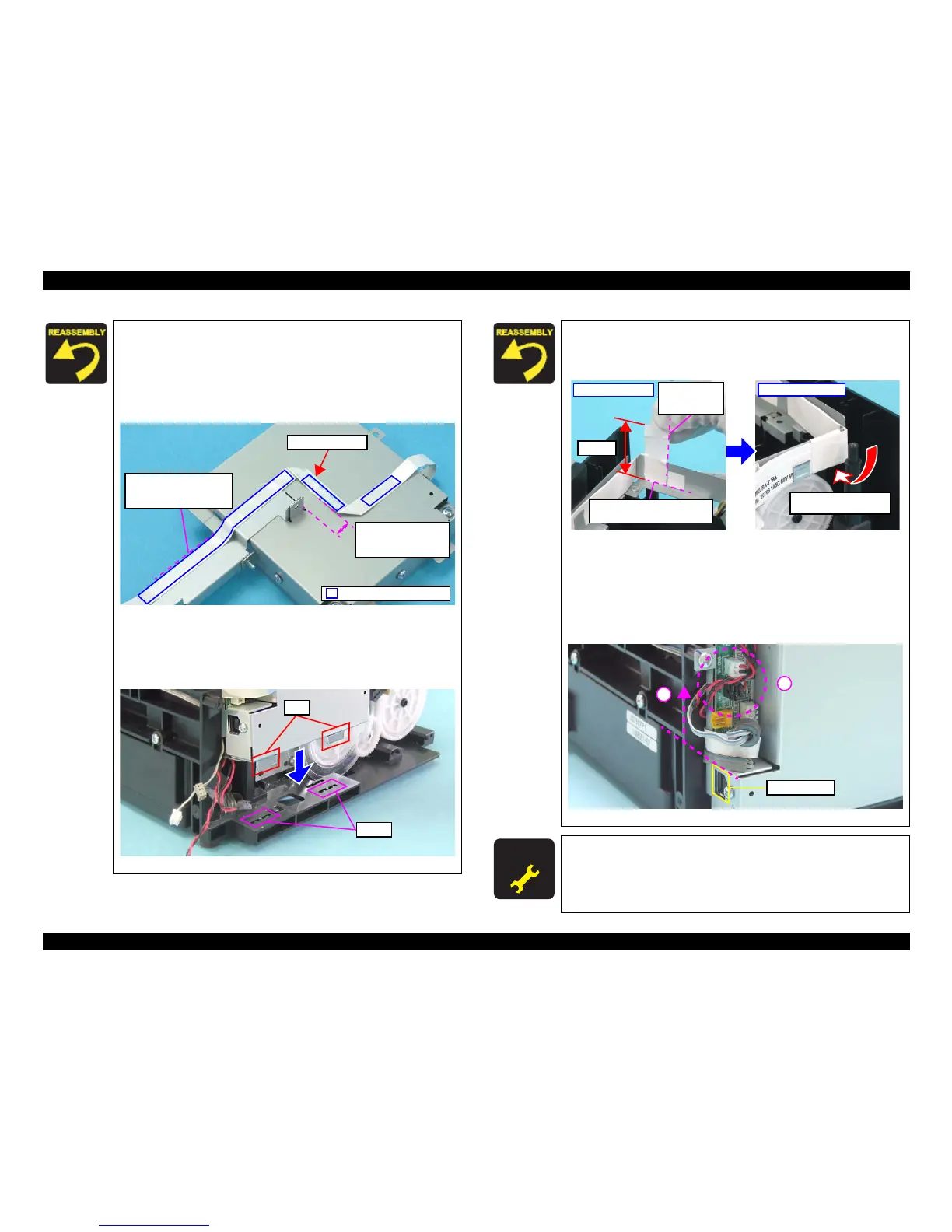

DISASSEMBLY/ASSEMBLY Removing Board 78
 Be careful not to damage the PF Scale and the Spur Gear of
the EJ roller when installing the Main Board Unit and the
Panel Unit.
 Route the Panel Unit FFC on the Main Board Unit and the
Panel Unit referring to the figure below. Make sure to fold the
FFC as shown.
Figure 4-14. Routing Panel Unit FFC
 When installing the Main Board Unit, be sure to insert the
tabs (x2) of the Main Board Unit into the slots of the Base
Frame (x2).
Figure 4-15. Installing Main Board Unit
9 to 10 mm
(from the slot on the
frame to the tape edge)
Align the edge of the FFC
with the edge of the Left
Frame.
Panel Unit FFC
Double-sided tape position
Tab
Slot
 When routing the Head FFC on the Left Frame, secure the
Head FFC with an acetate tape on the specified position as
shown in the figure below.
Figure 4-16. Acetate Tape Position
 Be cautious of the following points when connecting the cables
to the Main Board.
1. Do not let the cables and FFCs over the USB interface.
2. Route the CR Motor cable and the PF Motor cable through the
gap between their connectors.
.
Figure 4-17. Routing cables on the Main Board
A D J U S T M E N T
R E Q U I R E D
After replacing the Main Board Unit, be sure to perform specified
adjustment. See
Chapter 5 “ ADJUSTMENT” (p.107)
50 mm
Align the edge of the tape with
the corner of Left Frame.
Align here with
the cutout of the
Left Frame.
Inside of the frame
Wrap the tape around the
frame and the Head FFC.
Outside of the frame
2
1
USB Interface

Epson Stylus D120 Specifications

General

Color	Yes
Print head nozzles	360
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	37 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Total output capacity	120 sheets
Envelopes sizes	C6, DL
Custom media sizes	13 x 20 cm, 102 x 181 mm
Paper tray media types	Photo paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Compatible operating systems	Windows 98SE / ME / 2000 / XP / XP-x64 / Vista Mac OS 10.2.8
Interface	USB 2.0
Power requirements	AC 220-240 V
Compatible ink types, supplies	DURABrite Ultra Ink
USB 2.0 ports quantity	1
Sound power level (printing)	39 dB
Package depth	493 mm
Package width	294 mm
Package height	233 mm
Package weight	5046 g
Bundled software	Epson Creativity Suite, Epson Easy Photo Print, Epson Web-To-Page
Quantity per pack	1 pc(s)
Sustainability certificates	ENERGY STAR
Power consumption (standby)	2 W
Power consumption (printing)	15 W
Country of origin	Indonesia
Market positioning	Home & office
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2014 mm
Quantity per pallet	48 pc(s)
Quantity per pallet (UK)	64 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)

Weight and Dimensions

Depth	240 mm
Width	435 mm
Height	161 mm
