Buttons
z
roll paper
Loads and ejects roll paper.
Feeds roll paper in reverse to a position where it can
be easily removed from the sheet feeder, if pressed
for more than 3 seconds.
Clears the b
error light if pressed after removing roll
paper.
e
ink cartridge
replacement
Moves the print head to the ink cartridge
replacement position and charges ink to the printer
when ink is out.

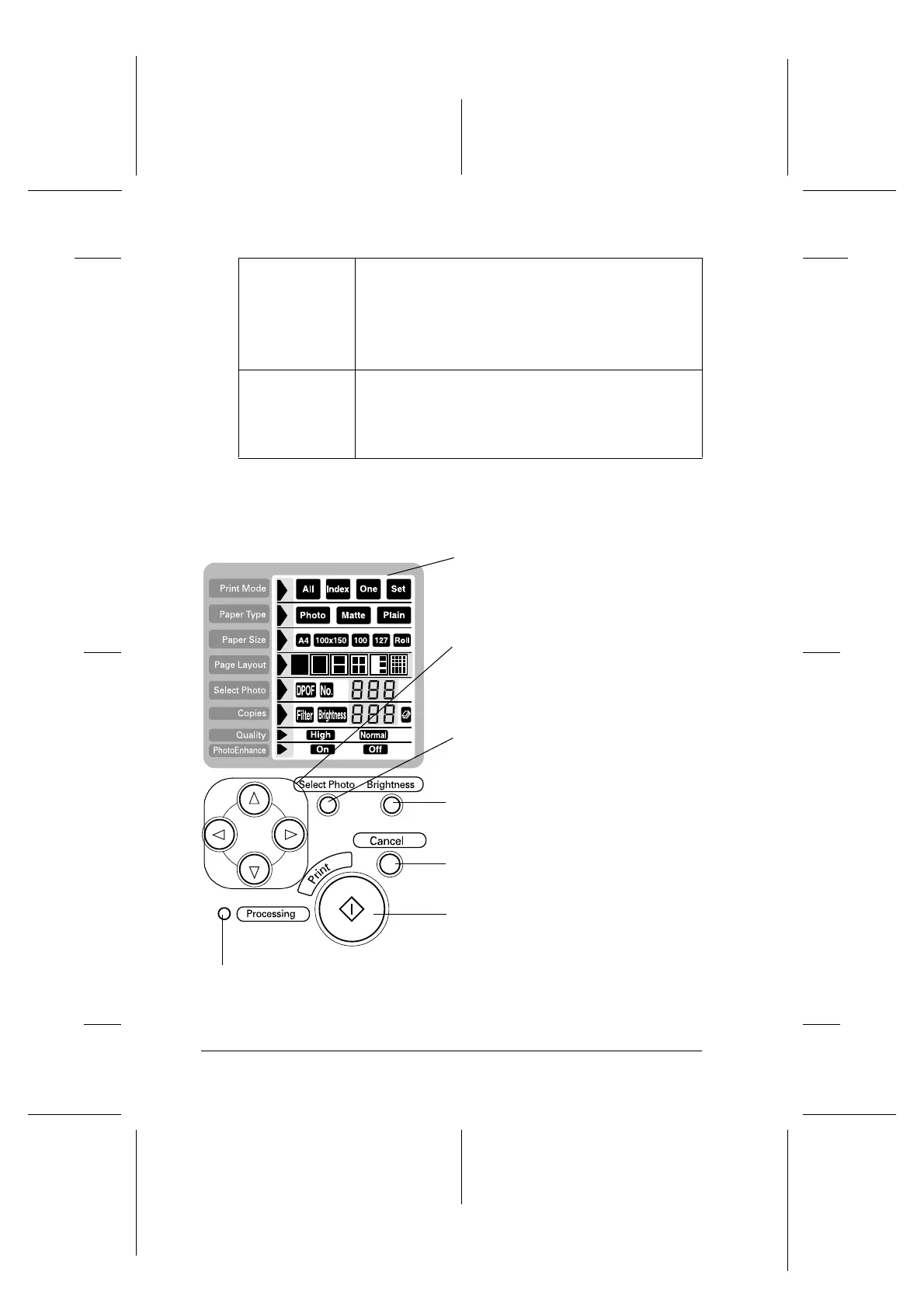

Display:
Shows the items and settings you change
with the buttons on the control panel.
Arrow buttons (up, down, left, right):
Use arrow buttons, up or down to select
setting menus. Use arrow button, left or
righttodecidethesettings.
Select Photo button: Sets the number of
copies for the photo selected on the
Select Photo menu.
Brightnessbutton:Pressto changeintothe
brightness setting mode. Press three
seconds to change into the filter setting
mode.
Cancel button:
Cancels print operation, or settings on the
display.
Start Print button:
Starts printing with the settings selected
via the buttons on the control panel.
Processing light:
On when ready to print.
Flashes while processing the data.
