Adjustment Details of Adjustments (TBD) 42
Epson Stylus Photo R3000 Revision A
6. Turn the Center Support Bushing Cam so that the long hand position is +5 m from the “0” adjustment
position. (TBD)

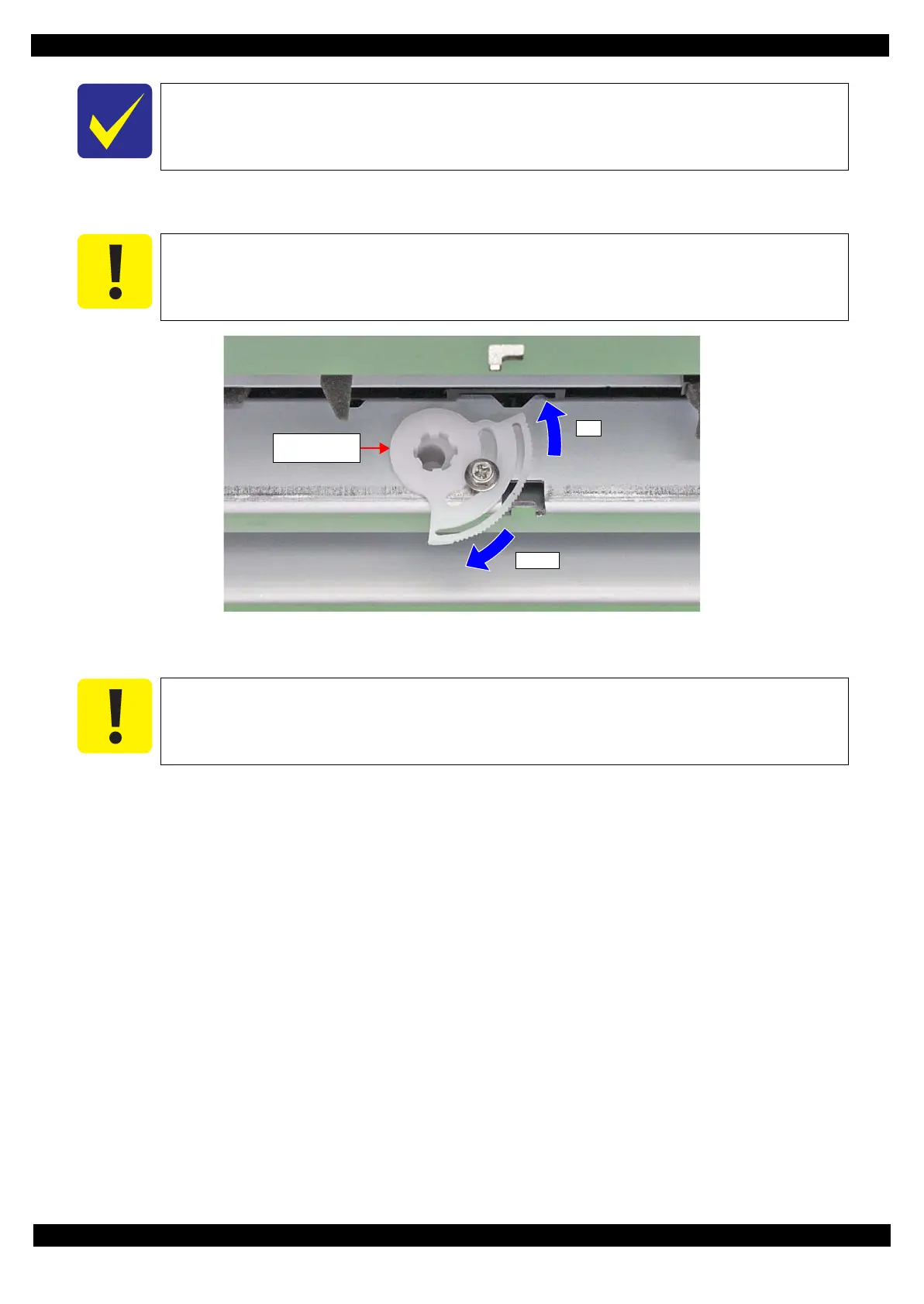

Figure 2-6. Positional Relationship between Center Support Bushing Cam and the Dial Gage
7. Tighten the screw that secures the Center Support Bushing Cam.
The standard range of the PF Roller Shaft Center Support Position Adjustment is as follows:
 Standard value: -20 m - 30 m
 Adjustment resolution: 50 m (TBD)
 +5 m must be set to compensate for the thickness of the coating on the PF Roller Shaft.
(TBD)
 Make sure that the position of the short hand is the same as at “0” adjustment.
Check the adjustment value again as it deviates slightly when the screw is tightened.
down
up
Center Support
Bushing Cam

Epson Stylus Photo R3000 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Interface	USB 2.0
Print technology	Inkjet
Dimensions (WxDxH)	614.7 x 368.3 x 228.6 mm
Networking features	100Base-TX Ethernet
Paper tray media types	Photo paper, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A3
Compatible operating systems	Windows 7 (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Windows XP, Windows XP Professional x64 Mac OS X 10.5.x – 10.6.x
Optional connectivity	Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	3.5 W
Power consumption (printing)	21 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sound power level (printing)	38 dB
Country of origin	China
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	10 pc(s)
Quantity per pallet layer	2 pc(s)
Package depth	750 mm
Package width	490 mm
Package height	400 mm
Package weight	19420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	368.3 mm
Width	614.7 mm
Height	228.6 mm
