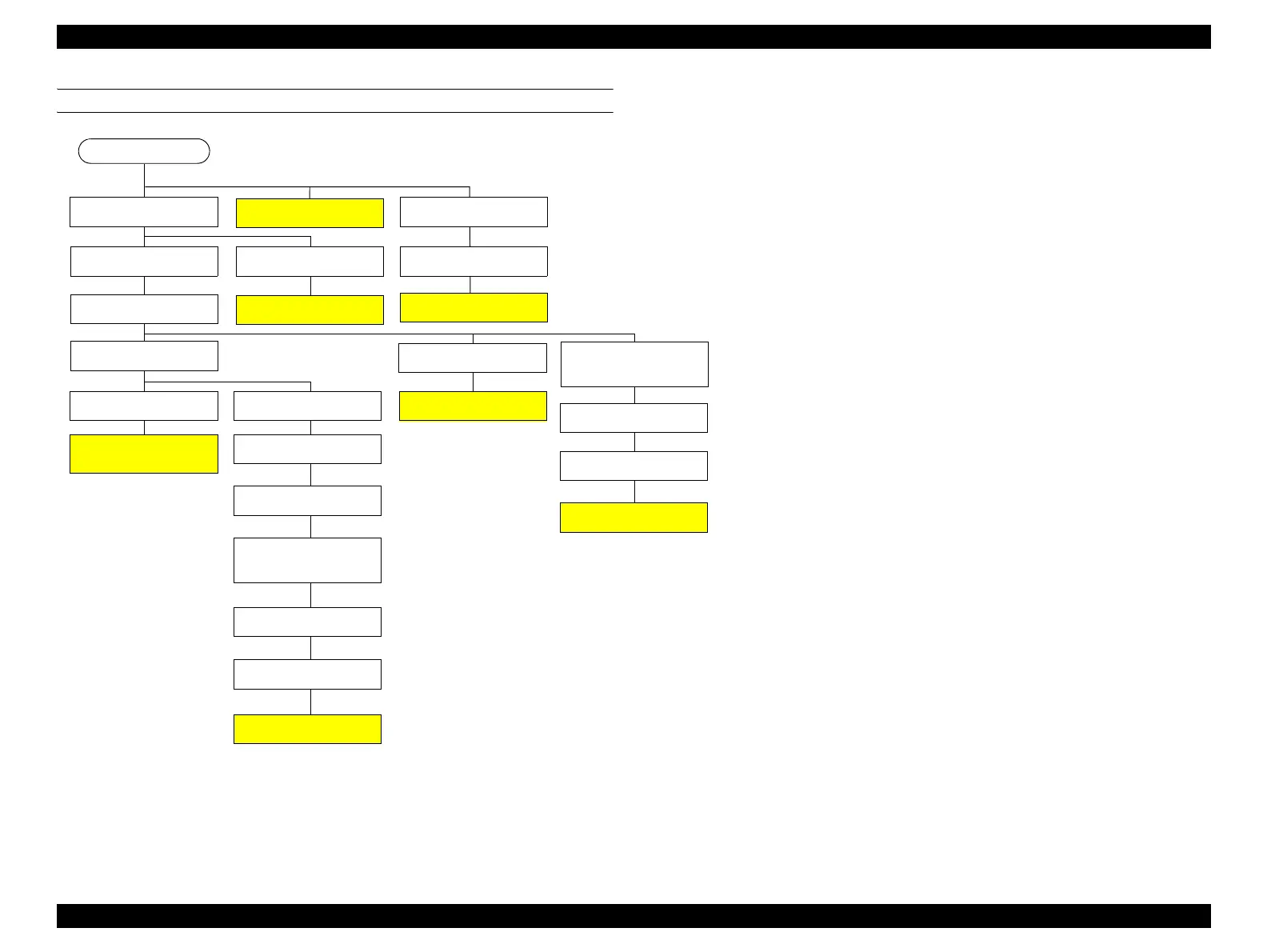

DISASSEMBLY & ASSEMBLY Disassembly Flowchart 119
Confidential
ASF UNIT
See “3.4.2.8 Front Cover (p142)”
See “3.4.2.5 Right Upper Cover
(p138)”
See “3.4.2.3 Control Panel Cover
(p136)”
Start
See “3.4.2.6 Right Cover (p139)”
( 左のみ )
See “3.4.2.14 Media Eject Cover
(p148)”
See “3.4.2.10 Rear Cover (p144)”
See “3.4.2.4 Left Cover (p137)”
See “3.4.6.7 Paper Cassette Sensor
(p214)”
See “3.4.6.2 ASF Sub Motor Assy
(p203)”
See “3.4.9.8 Full (Left) Side
Cartridge Holder (p242)”
See “3.4.6.1 ASF Motor Assy
(p202)”
See “3.4.6.3 Pickup Roller (p204)”
See “3.4.2.7 Left IC Cover Frame/
Right IC Cover Frame/ Left IC
Sensor/Right IC Sensor (p140)” (R
only)
See “3.4.9.7 Home (Right) Side
Cartridge Holder (p239)”
See “3.4.9.9 Maintenance box 1
Holder (p245)”
See “3.4.1.5 Maintenance box 1
(p128)”
See “3.4.6.6 Paper Empty Sensor
(p211)”
See “3.4.3.3 Power Supply Box
(p157)”
See “3.4.6.4 Assist Roller Sensor/
Retard Roller Sensor/ Pickup Unit
Sensor (p206)”
See “3.4.6.5 Retard Roller (p209)”
See “3.4.3.6 SUB-B Board (p162) ”
See “3.4.2.11 Rear Unit (p145)”
See “3.4.2.10 Rear Cover (p144)”
See “3.4.2.16 Mid-Right Cover/
Mid-Left Cover (p150)” (R only)
See “3.4.2.7 Left IC Cover Frame/
Right IC Cover Frame/ Left IC
Sensor/Right IC Sensor (p140)” (R
only)
