Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 131
Confidential
3.4.1.8 Spindle
1. Turn the printer ON.
2. Open the Roll Paper Cover.
3. Push the paper set button, and release the Paper Presser.
4. Remove the spindle.

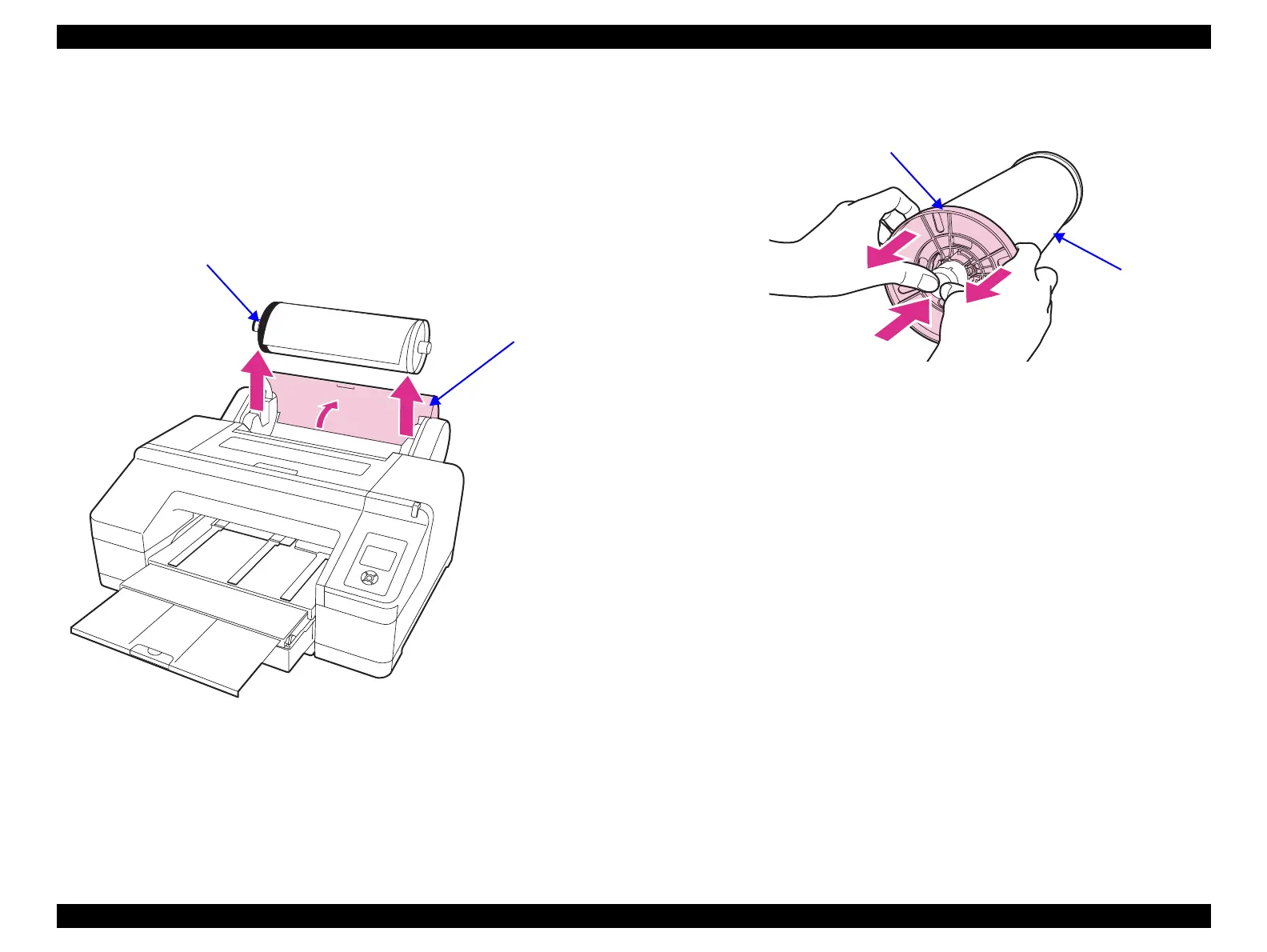

Figure 3-25. Removing the spindle
5. Remove the roll paper from the spindle by removing the flange.
Figure 3-26. Removing the roll paper
Roll Paper Cover
Spindle
Roll paper
Flange
