3.4.9.6 Head Cap
1. Perform “Wiper and Cap Cleaning & Exchange (p356)”, and move the Wiper to
the position to replace.
2. Remove the Right Upper Cover. (p138)
3. Remove the Wiper Cleaner. (p237)
4. Remove the Head Cap.

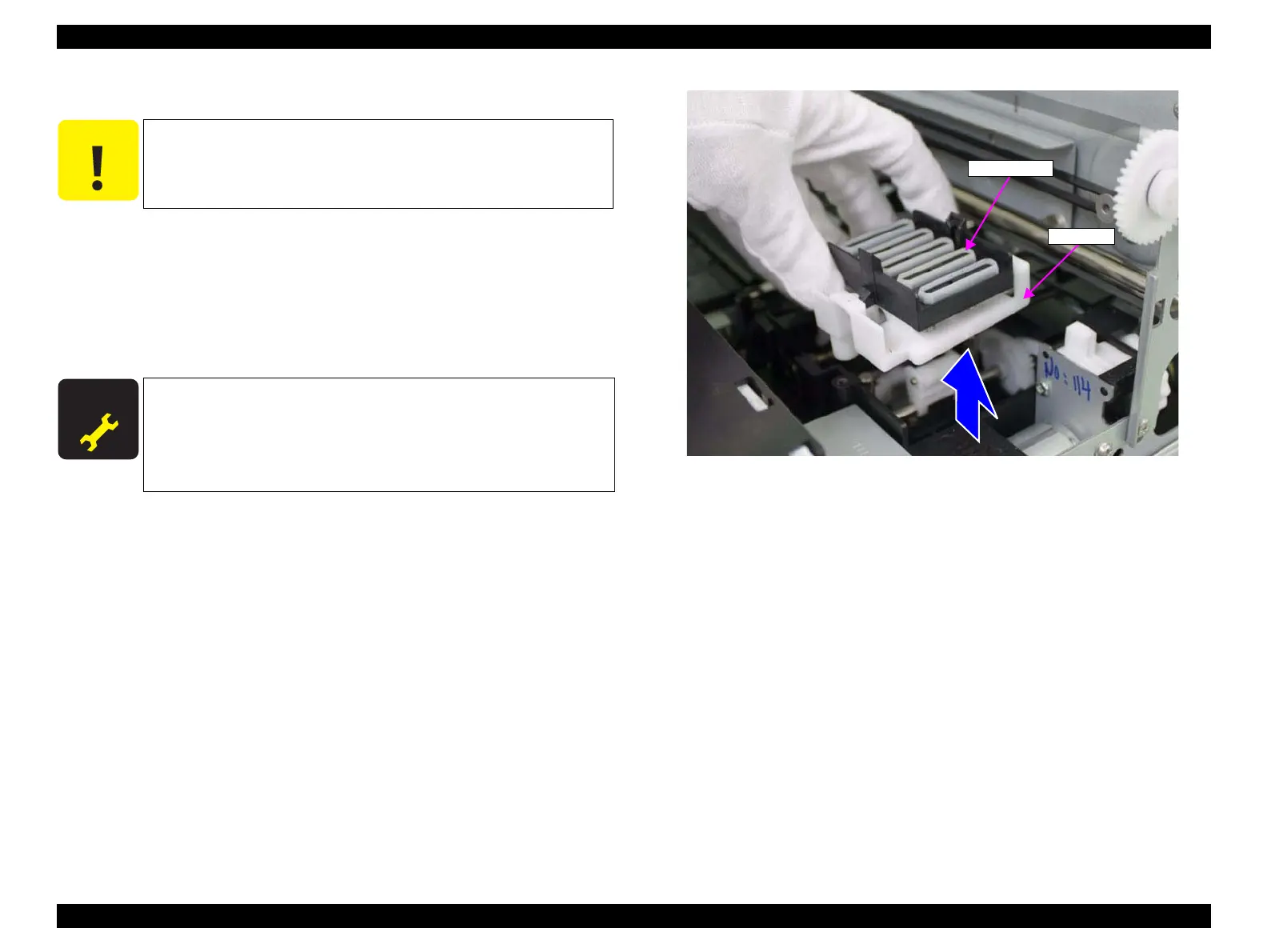

Figure 3-173. Removing the Head Cap
C A U T I O N
When removing the Head Cap, be careful not to touch the seal
material.
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustments after replacing the Head Cap.
<Adjustment items>
1. Wiper and Cap Cleaning & Exchange
2. Counter Reset (Head Cap Counter)
Head Cap
Seal material
