9. Remove the five screws that secure the plate.
A) Silver, Phillips, Round Washer Head S-tite M3x6: five pieces
10. Remove the plate.

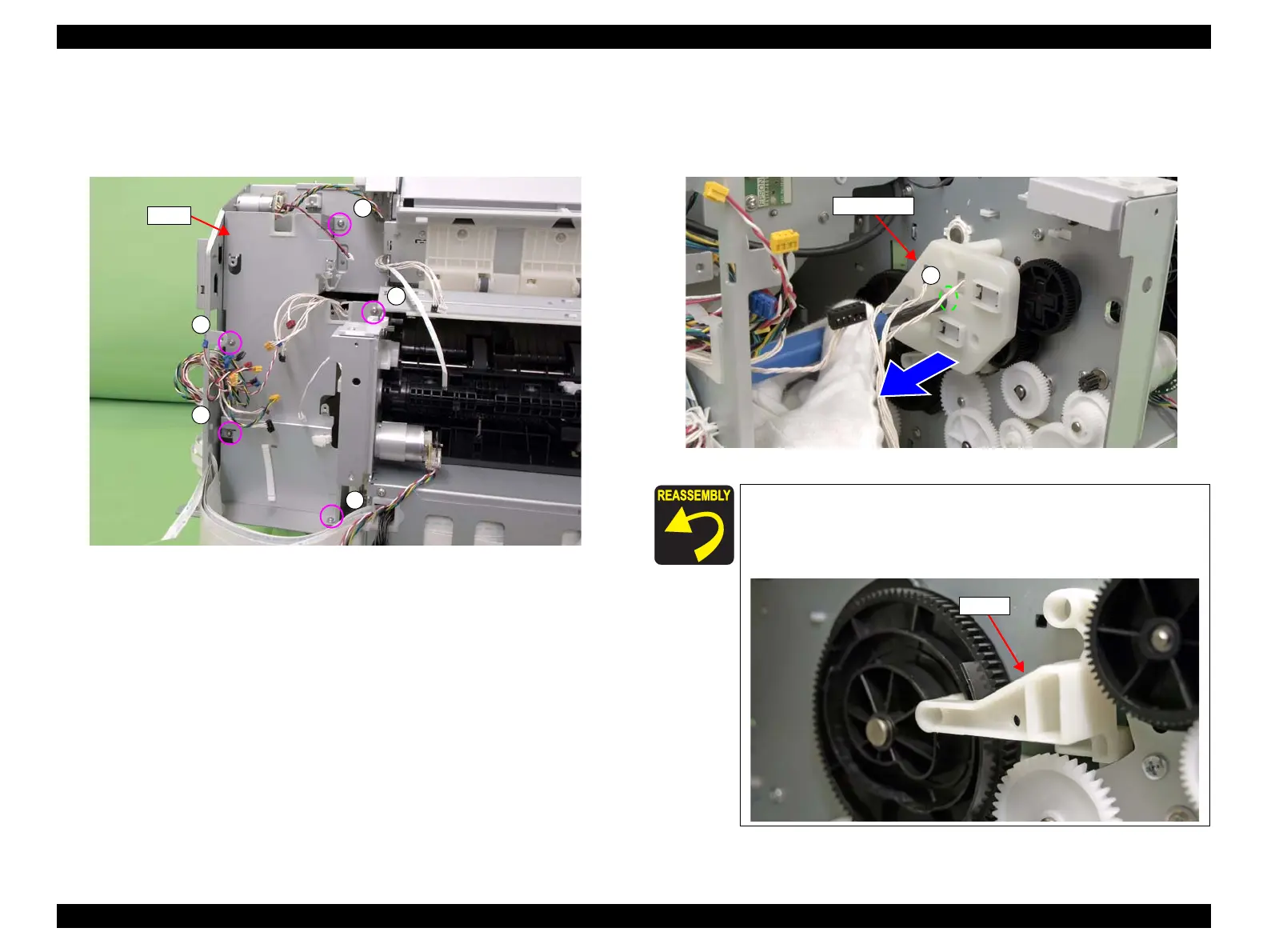

Figure 3-128. Removing the plate
11. Remove the screw that secures the sensor holder.
B) Silver, Phillips, Round Washer Head S-tite M3x8: one piece
12. Remove the sensor holder.
Figure 3-129. Removing the sensor holder
Plate
A
A
A
A
A
When the sensor holder is removed, the lever may be removed as
well. Be sure to check the installation direction of the lever before
removing the sensor holder, and reinstall the lever in the proper
direction if it is removed.
B
Sensor holder
Lever
