Pro 7900 and 9900 Field Repair Guide 10/6/10
Board (Main) Installation Printer Component, Software Item, LCD Display, Printer Button Page 28.

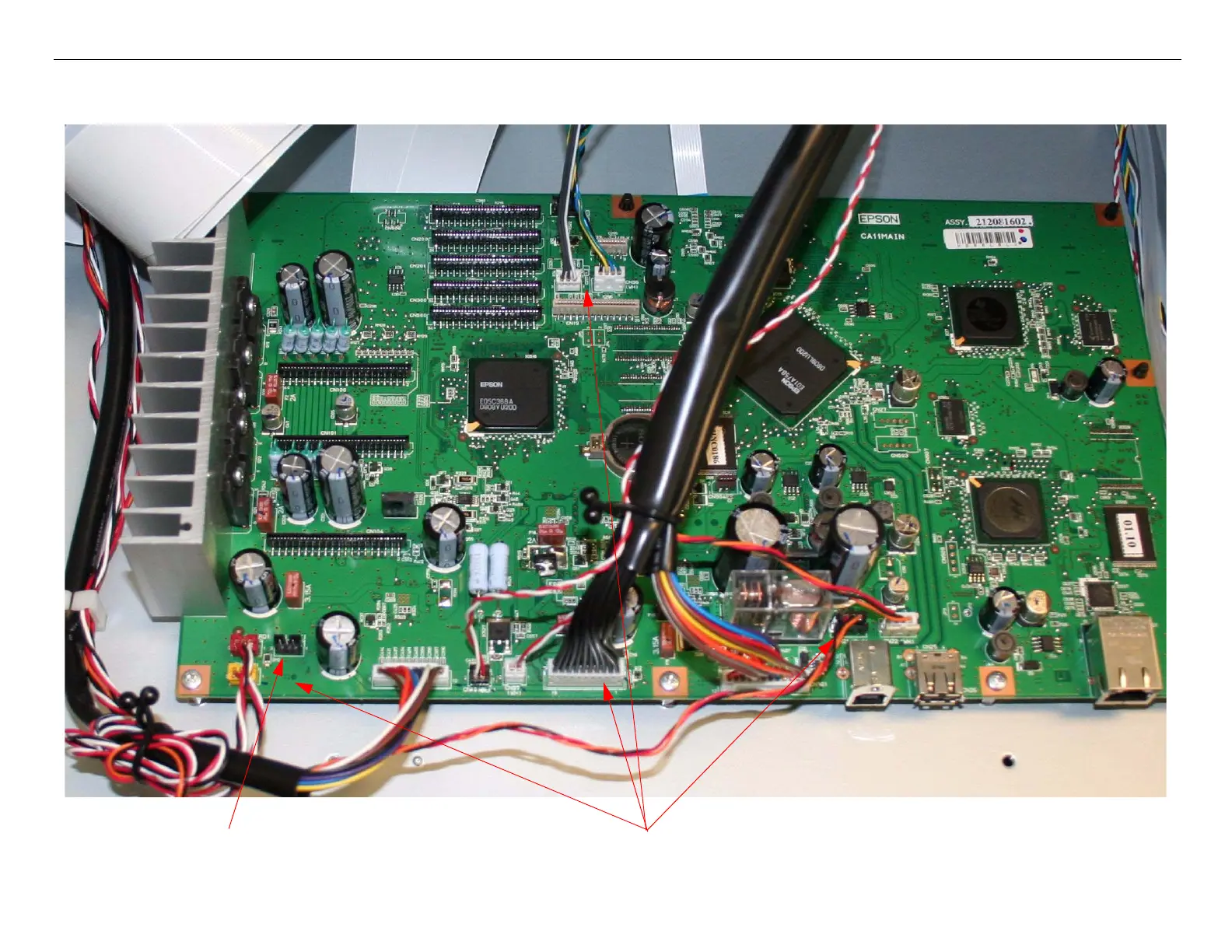

3. Plug in 11 Wired Cables that attach the Main Board to the Printer.
Plug in 11 Wired Cables.
Note: CN5 is not used.
