Appendix
70

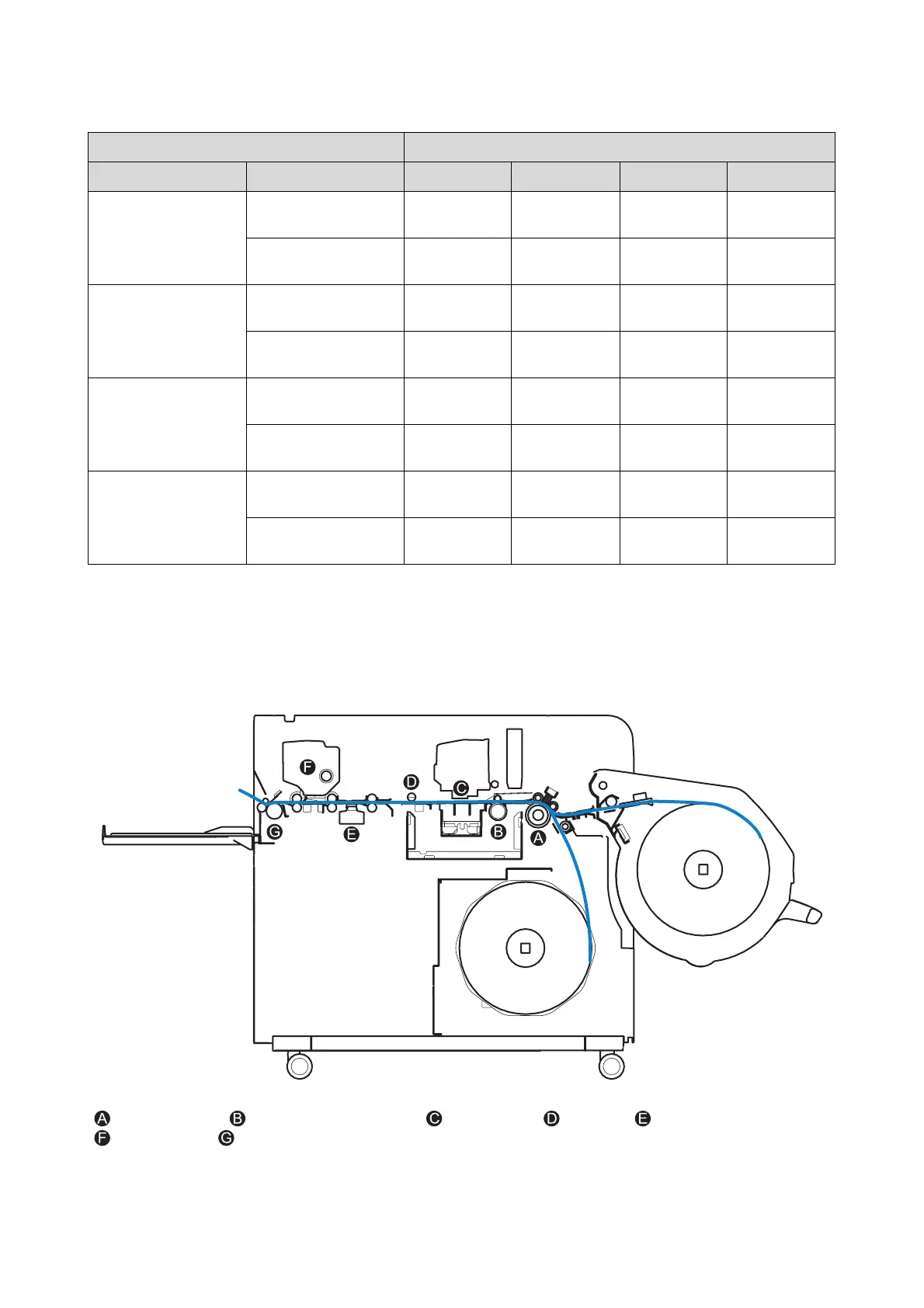

Paper Feed Path Diagram
This diagram shows the paper feed path inside the printer.
: Middle roller / : Large paper feed roller / : Print head / : Cutter / : Back printing unit /
: Heater unit / : Decurler
Custom (203 x L) 8 x 3.5 to 12 inches
(203 x 89 to 305 mm)
Yes No No Yes
8 x 12 to 48 inches
(203 x 306 to 1219 mm)
No Yes No Yes
Custom (210 x L) 8.3 x 3.5 to 12 inches
(210 x 89 to 305 mm)
Yes No No Yes
8.3 x 12 to 48 inches
(210 x 306 to 1219 mm)
No Yes No Yes
Custom (254 x L) 10 x 3.5 to 12 inches
(254 x 89 to 305mm)
No No Yes Yes
10 x 12 to 48 inches
(254 x 306 to 1219 mm)
No Yes No Yes
Custom (305 x L) 12 x 3.5 to 12 inches
(305 x 89 to 305 mm)
No No Yes Yes
12 x 12 to 48 inches
(305 x 306 to 1219 mm)
No Yes No Yes
Print Size Ejected Paper Path
Size Name Width x Length Sorter Top tray Side tray Tray
