Epson SureLab D3000 - Double Roll Administrator's Guide

Settings/Maintenance
30

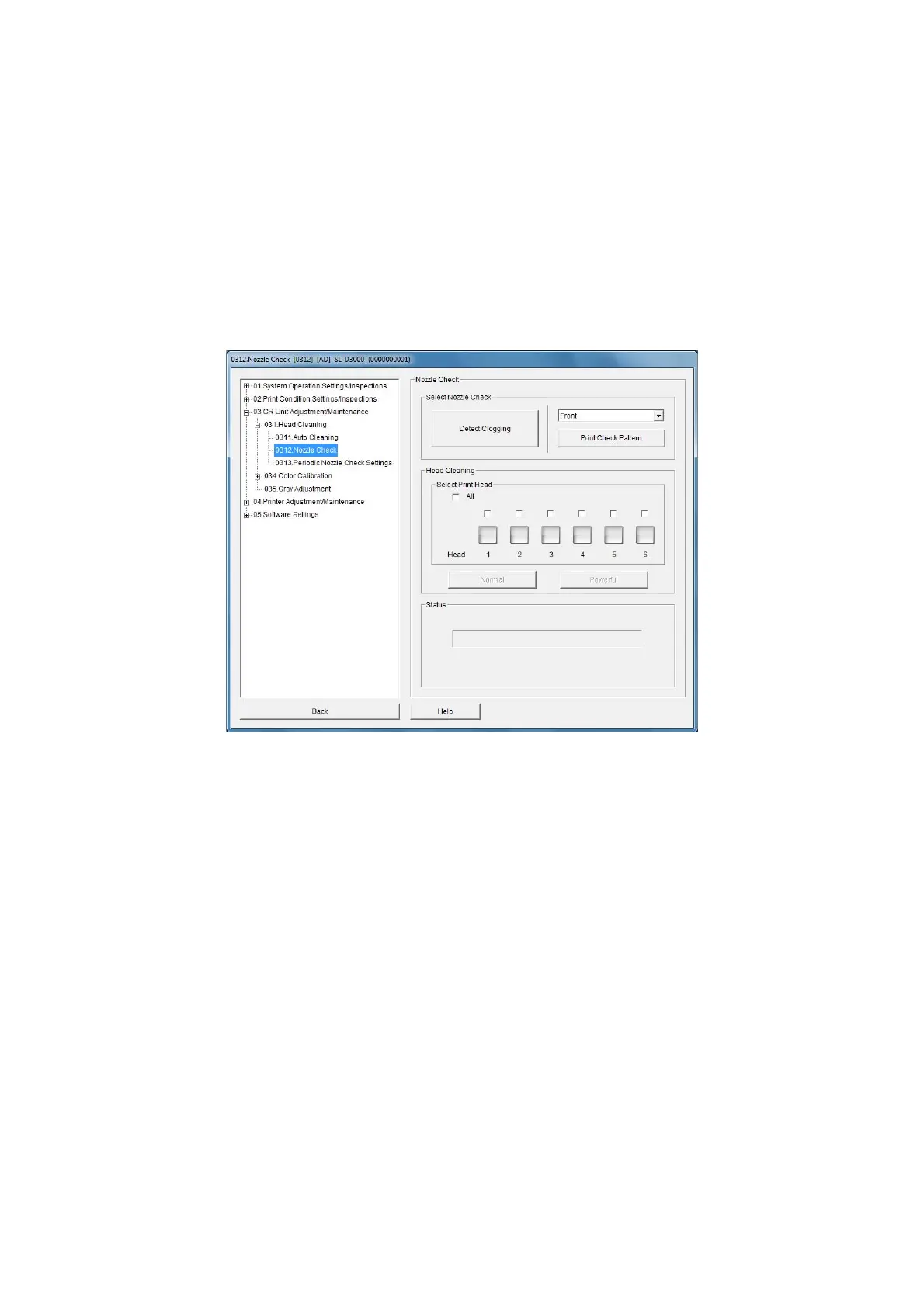

Nozzle Check
From the CR Unit Adjustment/Maintenance (03) menu, click Nozzle Check (0312) from Head Cleaning (031) to
display the screen.
This function allows you to check for clogged nozzles in the Print Head Unit. The printer automatically detects
clogging and displays the information on the screen. You can also print a check pattern for confirmation.
After performing a nozzle check, specify the type on the screen to perform head cleaning if necessary.

Epson SureLab D3000 - Double Roll Specifications

General

Max Print Resolution	1440 x 1440 dpi
Number of Ink Colors	6
Ink Colors	Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta
Connectivity	USB 2.0, Ethernet
Print Technology	Inkjet
Max Print Size	12 x 48 inches
Print Speed (4x6)	360 prints per hour
Roll Media Width	4", 8", 12"
