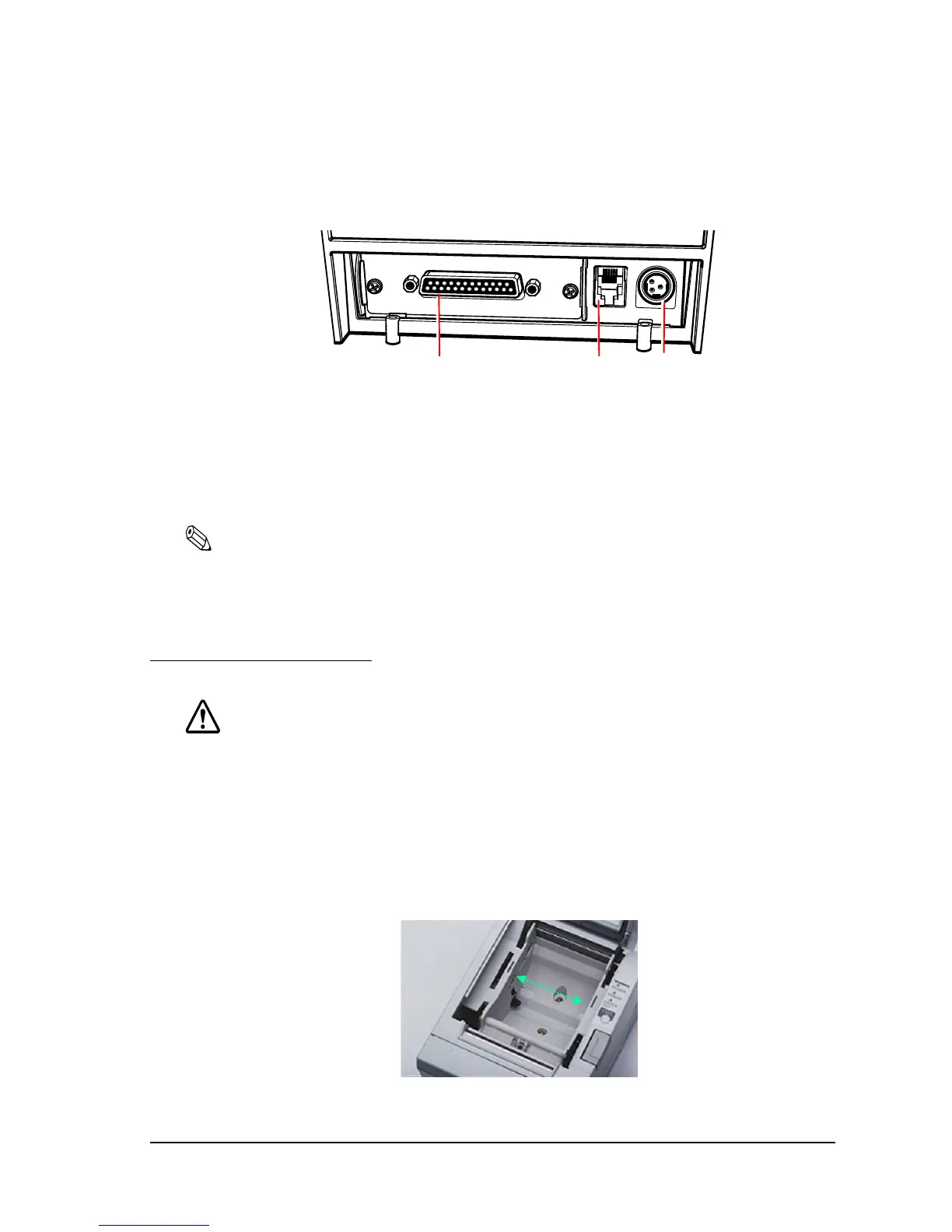

Rev. A Product Overview 1-5
TM-T88II/T88III Technical Reference Guide
1.2.4 Connectors
All cables are connected to the connector panel on the lower rear of the printer.
Figure 1-3 Connector panel
❏ Drawer kick-out connector for connecting the cash drawer
❏ Power supply connector for connecting the power supply unit
❏ Interface connector to connect the printer to the host computer interface (serial, parallel, etc.)
Note:
The picture above shows a serial interface model. For details on the various interfaces and how to connect
the power supply connector and cash drawer, see “Connecting Power Supply Unit and Cash Drawer”
(page 2-15) and “Connecting the Printer to the Host Computer” (page 2-8).
1.3 Handling the Printer
WARNING:
Do not open the printer cover during printing. Doing so may damage the printer.
Do not touch the manual cutter with your hands when installing or replacing roll paper.
The manual cutter is sharp and may cause an injury.
1.3.1 Selecting Paper Width
The customer can select either 58 mm {2.28"} or 80 mm {3.15"} paper. This option is performed at
the factory by installation of a spacer, as shown below.
Figure 1-4 Paper spacer
DK
DC24V
FG
FG
Interface connector
Drawer kick-out connector
Power supply connector
