Rev. A Setup 2-3
TM-T88II/T88III Technical Reference Guide
2. Unscrew the screw to remove the DIP switch cover from the base of the printer.

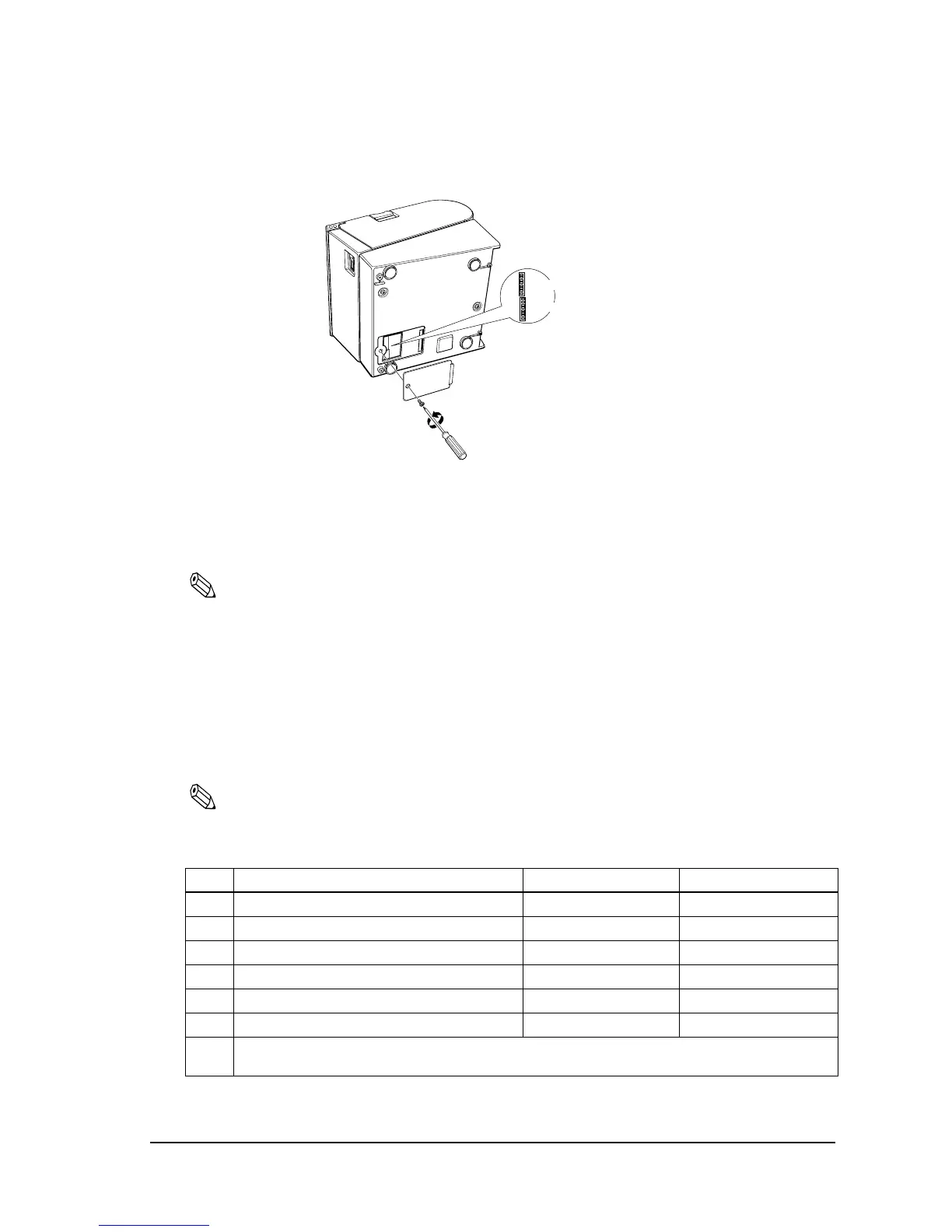

Figure 2-2 Removing the DIP switch cover
3. Set the DIP switches as desired, using the tip of a tool, such as a small screwdriver.
4. Attach the DIP switch cover, and screw in place.
Note:
New DIP switch settings are enabled after the printer is turned on.
2.2.2 DIP Switch Functions
The DIP switch functions depend on your printer’s interface specifications.
2.2.2.1 DIP switch settings for serial interface specifications
Note that the functions of DIP SW1-7, 1-8, and 2-5 differ on the TM-T88II and TM-88III. (The
functions of other DIP switch settings are the same.)
Note:
* Factory setting
For details on DIP SW1-2: Receive buffer size, also refer to DIP SW2-5: Cancellation of receive buffer full BUSY state.
Table 2-1 Switch bank 1 settings
SW Function ON OFF
1-1 Data receive error Ignore “?” is printed *
1-2 Receive buffer size 45 bytes 4KB *
1-3 Handshake XON/XOFF DTR/DSR *
1-4 Bit length 7 bits 8 bits *
1-5 Parity check Yes No *
1-6 Parity selection Even Odd *
1-7
,
1-8
Baud rate selection
(See the “Baud rate selection” tables below. (Note that the settings differ on the TM-T88II and TM-T88III.))
DSW1
DSW2
