2.4.4.2 Connecting the Ethernet Interface Cable
1. Make sure the power supplies for both the printer and host computer have been turned off.
2. For 10Base-T or 100Base-TX Ethernet, connect a 10Base-T or 100Base-TX cable to the
10Base-T/100Base-TX Ethernet connector by pressing firmly until the connector clicks into
place.

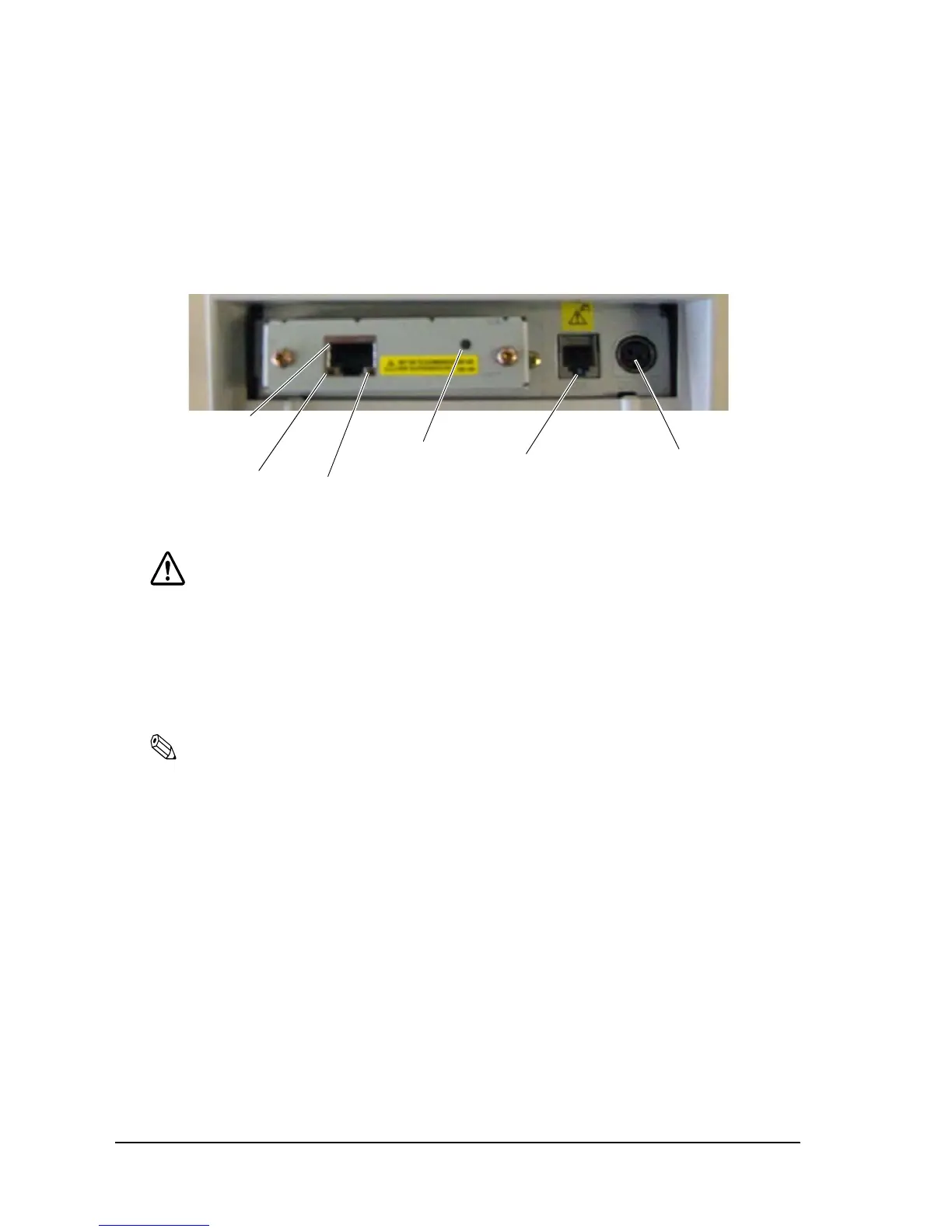

Figure 2-14 Example Ethernet port interface panel (UB-E02)
CAUTION:
Connecting devices directly to LAN cables installed outdoors exposes them to damage
from power surges caused by lightning and other inductive sources. Make sure devices
without proper surge protection are cushioned by being connected through devices
that do have surge protection. Otherwise, do not connect them to outdoor lines.
Never attempt to connect the customer display cable, drawer kick-out cable, or the
standard telephone line cable to the 10Base-T/100Base-TX Ethernet connector.
Note:
To use the Ethernet interface, the separate IP Address Setup Utility for the UB-E02 is required. For
details on the various setup methods, refer to “UB-E02 Technical Reference Guide.” You can obtain
the “IP Address Setup Utility for UB-E02” and the “UB-E02 Technical Reference Guide” from one of
the following URLs:
For customers from North America, go to the following web site: http://pos.epson.com/
For customers from other countries, go to the following web site:
http://www.epson-pos.com/
Select the product name from the “Select any product” pull-down menu.
Other compatible Ethernet interface modules may be available for your printer. Contact your EPSON
dealer for information on the options available.
10Base-T/100Base-TX Ethernet
interface connector
LED (green)
LED (yellow)
Switch
Drawer kick-out
connector
Printer power supply
connector
