147
Chapter 3 Handling
3
Setting the Dip Switches
Follow the steps below to change the Dip switch settings.
Setting Procedure
Follow the steps below to change the Dip switch settings.
1
Make sure the power supply for the product is turned off.
2
Remove the Dip switch cover mounting screw from the rear side of the
product and open the Dip switch cover.
3
Set the DIP switches, using the tip of a tool, such as a tweezers.
4
Replace the DIP switch cover, and screw it in place.
Functions
CAUTION
Before you remove the DIP switch cover, turn the product off. Otherwise, a short-circuit may
cause the product to malfunction.
DIP switch settings are enabled only when the power is turned on. If the settings are changed
after that, the functions will not change.
SW ON OFF Initial setting
1
Power button: Disabled
(Reset operation)
Power button: Enabled
(Power ON/OFF operation)
OFF
2 Forbidden (Do not change setting) OFF
3 Reserved (Do not change setting) OFF
4 Reserved (Do not change setting) OFF
CAUTION
Do not change Dip switch 2 to 4.
An SDHC memory card is located below the dip switches. Do not remove it, replace it or do
anything else to it. This card is used for internal processing.

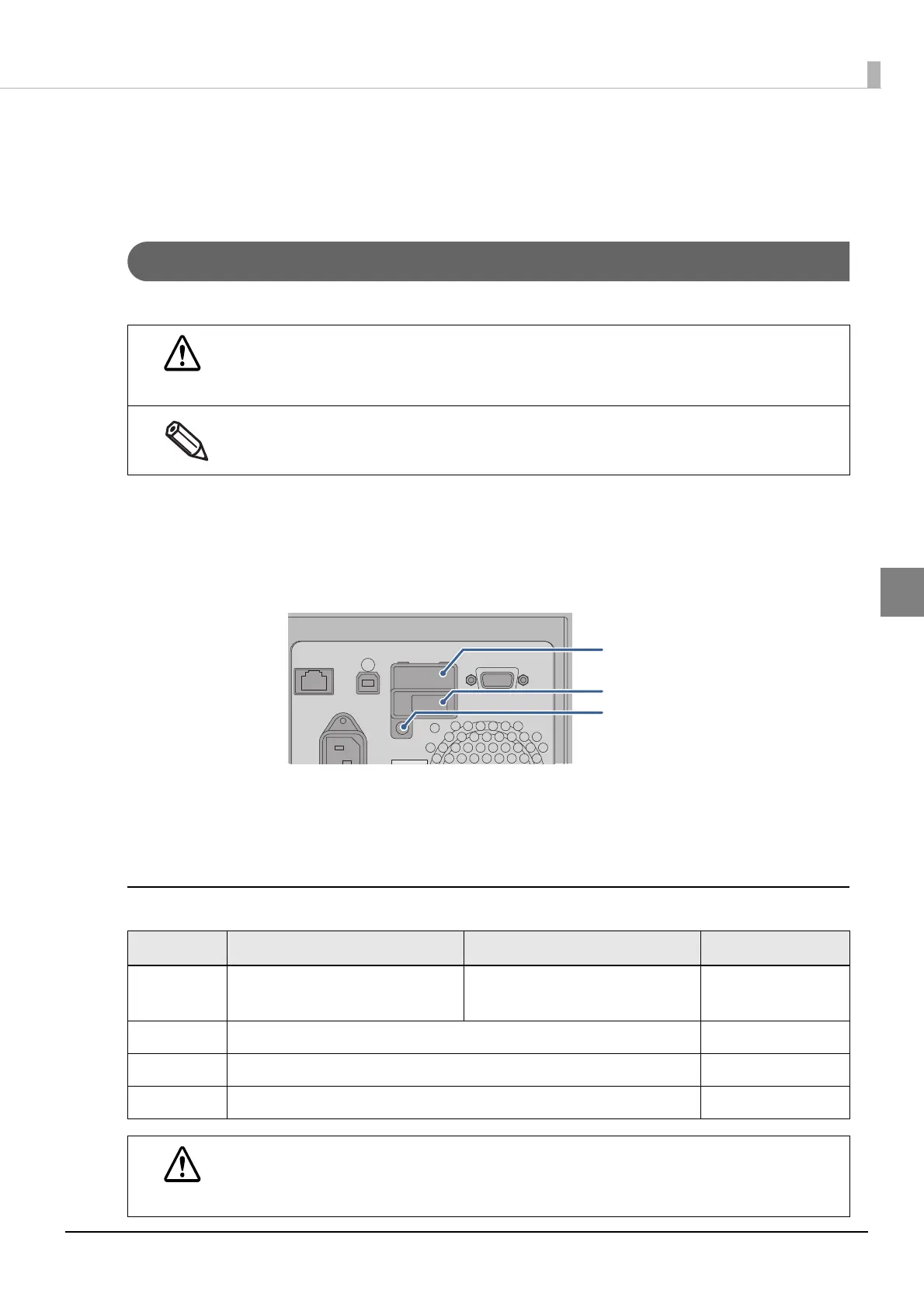

Dip Switch Cover
Dip Switch
Dip Switch Cover mounting screw
To Next Page
