Rev.C Disassembly and Assembly 3-43
TM-L90 Service Manual
Confidential
NE Detector Assembly
1. Remove the NE detector lead wire from the hook on the label paper holder.
2. Remove one E1 type E retaining ring.
3. Remove the NE detector adjustment screw by rotating it with a coin.
4. Remove the N1 hex nut and the NE detector assembly.
5. Remove the NE detector lead wire from the hook of the NE detector holder, and remove it
from the micro switch connector.
6. Remove the NE detector lever by lightly pressing the two keys inside.
7. Remove one S7 screw.
8. Remove the micro switch.

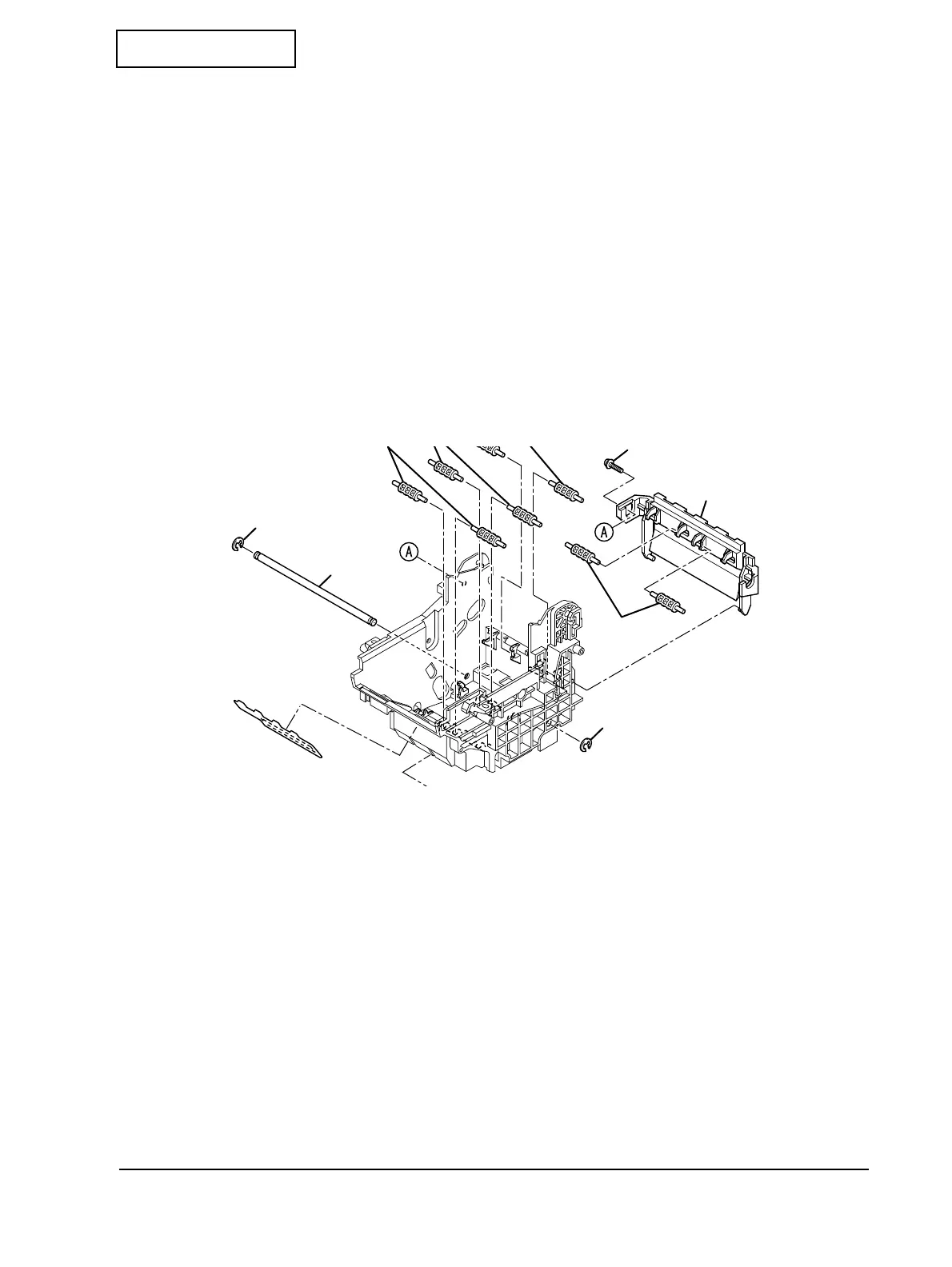

NE detector adjustment screw
NE detector
Label paper holder
N1
S7
E1
Micro switch
NE detector holder
NE detector lead wire
lever
