Connecting the Cash Drawer
Required specifications of cash drawers
Specifications of drawers differ depending on makers or models. When you use a drawer other than specified,
make sure its specification meets the following conditions.
Otherwise, devices may be damaged.
• The load, such as a drawer kick solenoid, must be connected between pins 4 and 2 or pins 4 and 5 of the
drawer kick connector.
• When the drawer open/close signal is used, a switch must be provided between drawer kick connector pins 3
and 6.
• The resistance of the load, such as a drawer kick solenoid, must be 24
Ω or more or the input current must be
1A or less.
• Be sure to use the 24V power output on drawer kick connector pin 4 for driving the equipment.

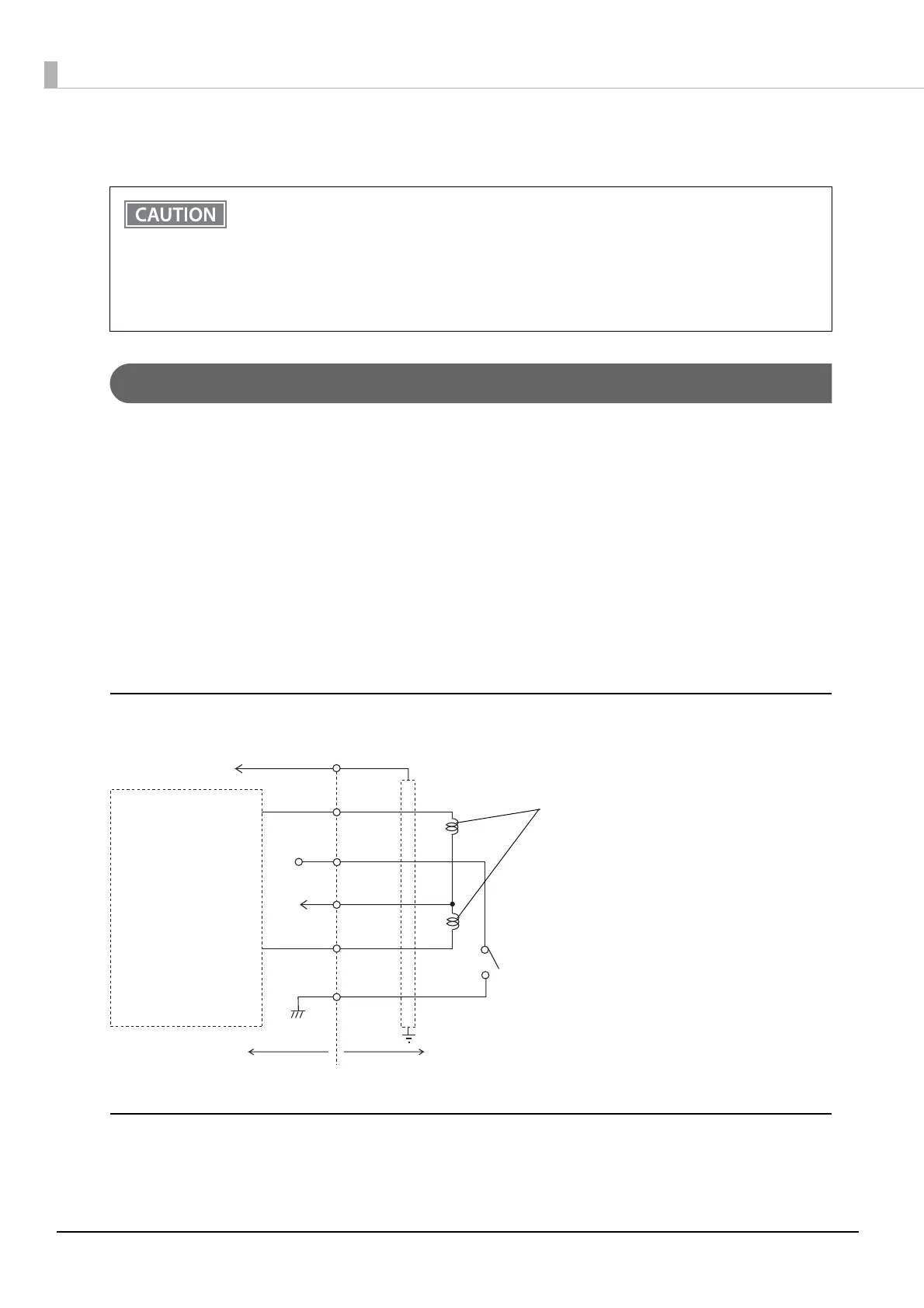

Drawer Connection Diagram
Adaptable Connector
RJ12 modular connector
• Do not connect both the optional external buzzer and the cash drawer to the printer at the
same time by using a branched connector.
• When the optional external buzzer is enabled with the memory switch (customized values) (see
"Software Settings" on page 47), a cash drawer cannot be used. Be sure to disable it when you
use a cash drawer.
• Two driver transistors cannot be energized simultaneously.
• Leave intervals longer than 4 times the drawer driving pulse when sending it continuously.
F. G
+24V
With shielded
Drawer kick connector
Printer side
User side
[Drawer kick side]
Drawer open/
close switch
Drawer kick
solenoid
1
2
3
4
5
6

Epson tm-m30 Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	203 x 203 DPI
Bluetooth	Yes
USB connector	USB Type-A / USB Type-B
Standard interfaces	Bluetooth, Ethernet, NFC, USB
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Country of origin	China
Autocutter durability	1.5 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Product color	White
Power supply type	AC
Wi-Fi	No
Ethernet LAN data rates	10, 100 Mbit/s
Supported paper width	58 - 80 mm
Storage temperature (T-T)	5 - 45 °C
Operating temperature (T-T)	10 - 90 °C
Storage relative humidity (H-H)	-20 - 60 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	235 mm
Package width	190 mm
Package height	230 mm
Package weight	2040 g
Quantity per pack	1 pc(s)
Pallet width	800 mm
Pallet height	2070 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)

Weight and Dimensions

Width	127 mm
