Epson tm-m30 Technical Reference Guide

35
Chapter 2 Setup
2

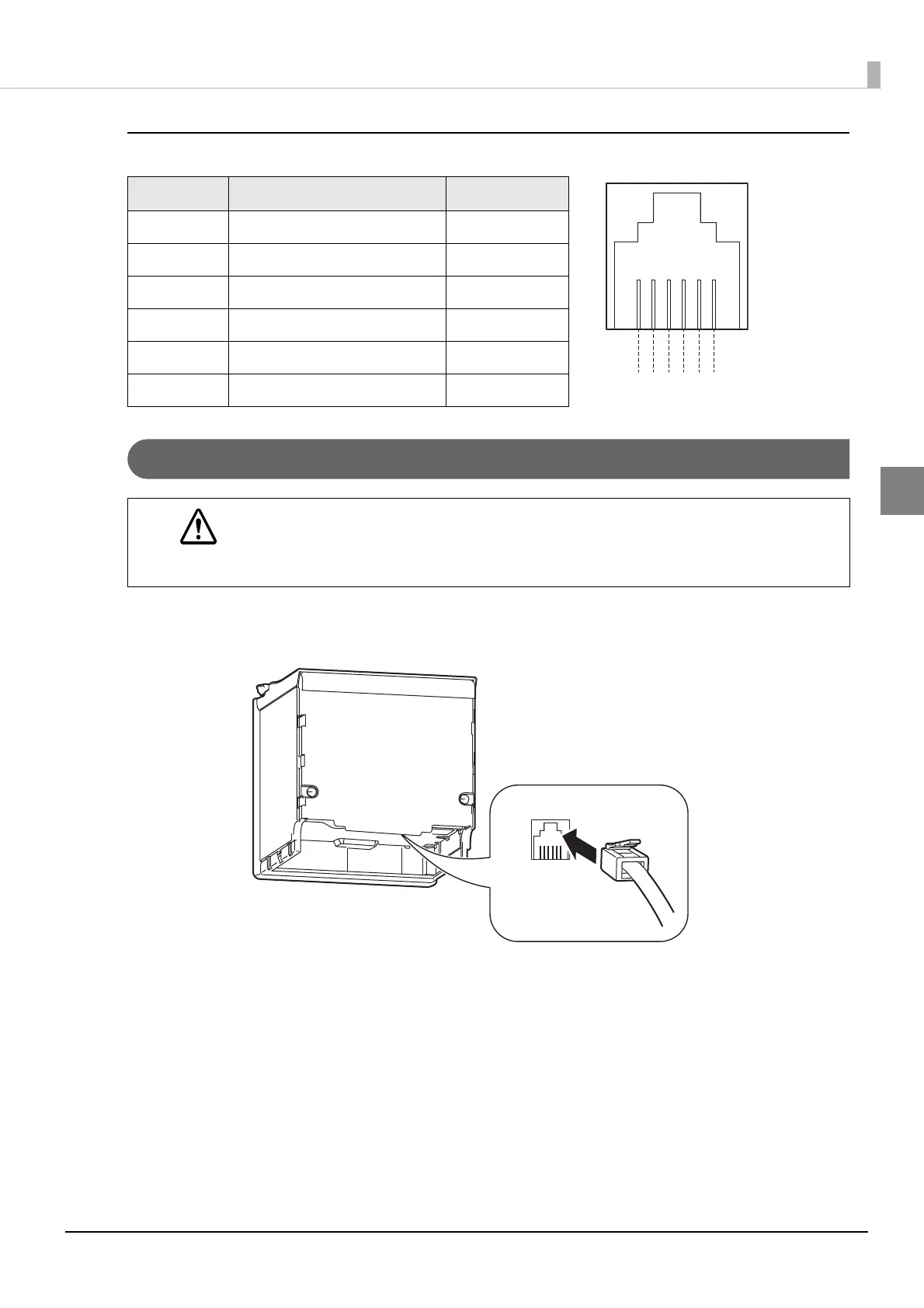

Pin assignments
Connecting the drawer kick cable
Connect the drawer kick cable to the drawer kick connector by pressing firmly until the connector clicks into
place.
Pin number Signal name Direction
1Frame GND -
2 Drawer kick drive signal 1 Output
3 Drawer kick open/close signal Input
4 +24 V -
5 Drawer kick drive signal 2 Output
6Signal GND -
WARNING
• Use a shield cable for the drawer kick cable.
• When using cash drawer, make sure to use the power supply for printer (connector pins 4).
• Do not insert a telephone line into the drawer kick connector.
Doing so may damage the telephone line or printer.
6 5 4 3 2 1

Epson tm-m30 Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	203 x 203 DPI
Bluetooth	Yes
USB connector	USB Type-A / USB Type-B
Standard interfaces	Bluetooth, Ethernet, NFC, USB
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Country of origin	China
Autocutter durability	1.5 million cuts
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Product color	White
Power supply type	AC
Wi-Fi	No
Ethernet LAN data rates	10, 100 Mbit/s
Supported paper width	58 - 80 mm
Storage temperature (T-T)	5 - 45 °C
Operating temperature (T-T)	10 - 90 °C
Storage relative humidity (H-H)	-20 - 60 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	235 mm
Package width	190 mm
Package height	230 mm
Package weight	2040 g
Quantity per pack	1 pc(s)
Pallet width	800 mm
Pallet height	2070 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)

Weight and Dimensions

Width	127 mm
