Epson TM-P20 User Manual

B

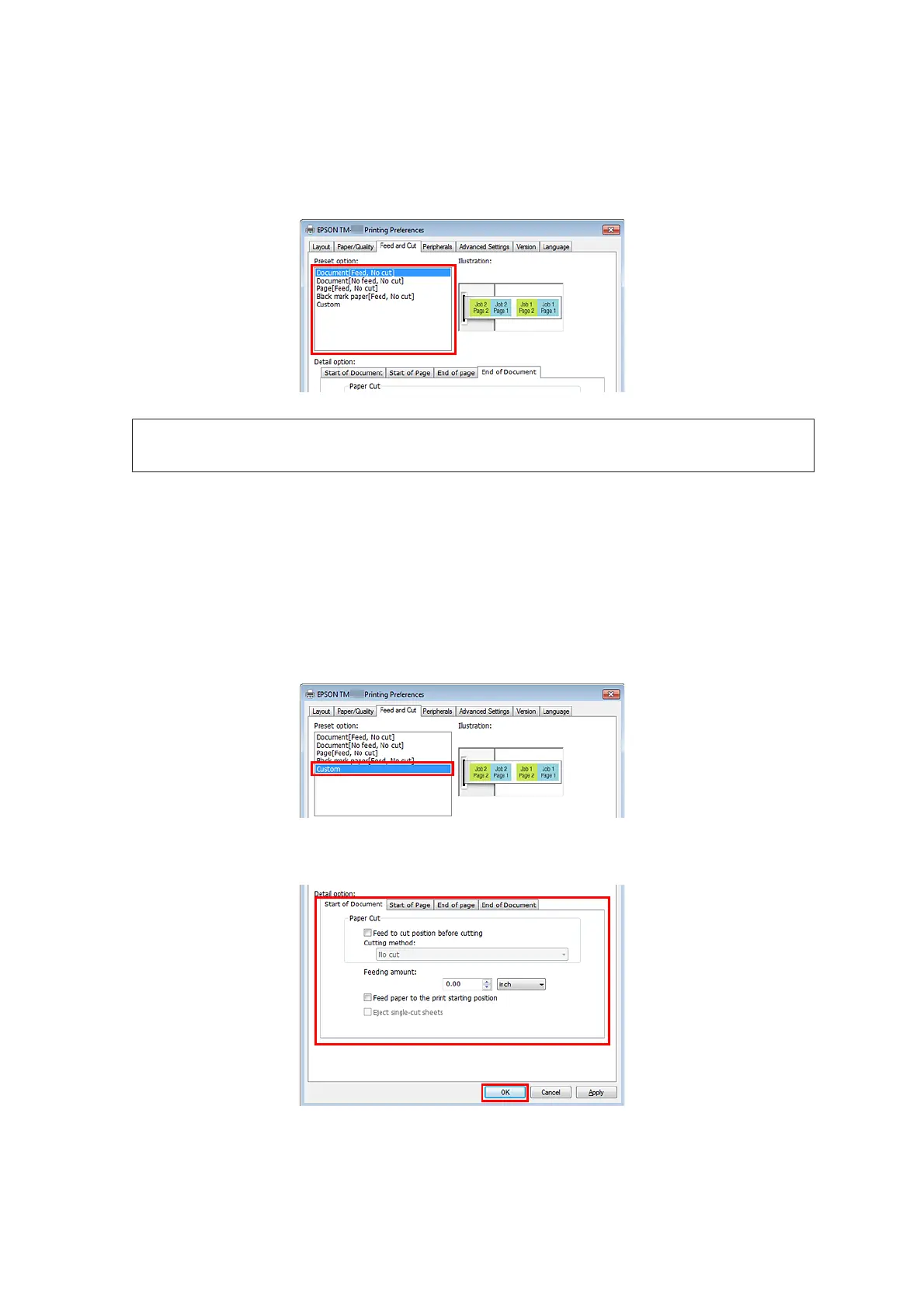

Select a cut and paper feed method displayed in the Preset option list and click OK.
Select using the illustration of paper feed and cut displayed in Illustration for your reference.
Note:
No Feed: Paper is not fed after printing a document.
Customization of Paper Feed and Cut
Customization is possible, when no preset function is desired, such as specifying the amount of paper feed and
modifying the timing control.
Follow the steps below.
A
Select Custom from the list of Preset option.
B
Select the control timing from Detail option tab to setup the action.
Settings are described below.
TM-P20 Software Installer Software User's Manual
Using the Printer Driver
57

Epson TM-P20 Specifications

General

Type	POS printer
Color	No
Print technology	Thermal
Maximum resolution	203 x 203 DPI
Rechargeable	Yes
Electromagnetic compatibility	FCC class A, CE
Mean cycles between failures (MCBF)	16000000
Power source type	AC, Battery
Battery life (max)	16 h
Product color	Black
Safety	EN
Country of origin	China
Sound pressure level (printing)	57 dB
Mean time between failures (MTBF)	120000 h
Media thickness	0.05 - 0.08 mm
Maximum roll diameter	40.4 mm
Supported paper width	58 mm
Wi-Fi standards	802.11a, 802.11b, 802.11g
USB connector	Mini-USB Type-B
Standard interfaces	NFC, USB 2.0
Connectivity technology	Wired & Wireless
Package depth	240 mm
Package width	195 mm
Package height	145 mm
Package weight	1482 g
Cables included	AC, USB
Quantity per pack	1 pc(s)
Operating relative humidity (H-H)	10 - 90 %
Pallet width	800 mm
Pallet height	1020 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	216 pc(s)
Quantity per pallet (UK)	288 pc(s)
Quantity per pallet layer	36 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	48 pc(s)

Weight and Dimensions

Depth	120 mm
Width	79 mm
Height	44 mm
