F

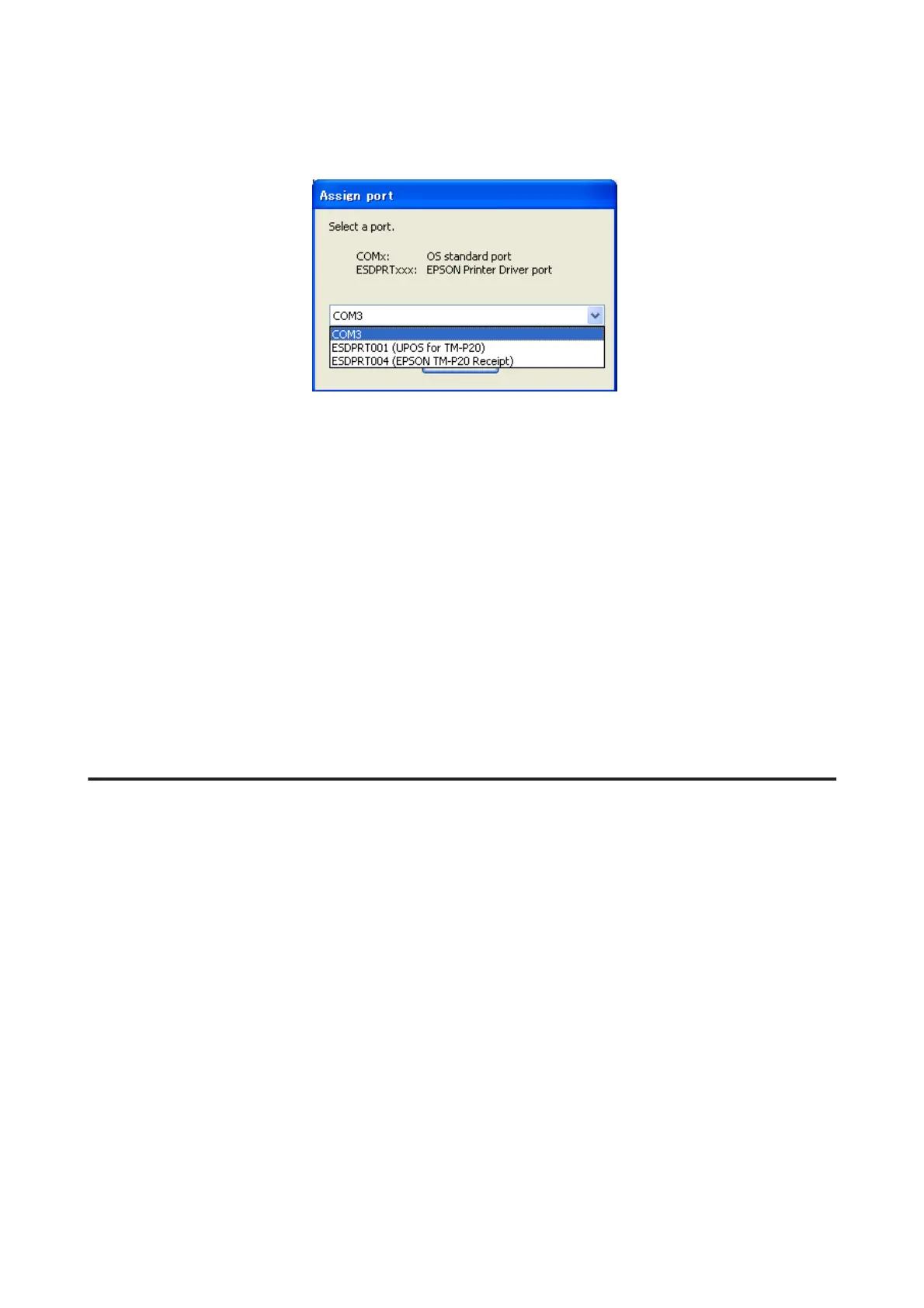

The Assign port window appears. Select the port to be used from the pull-down list and click OK.
❏ If started from the APD installer, port setting automatically starts without displaying the "Assign port"
window.
❏ APD print queue : ESDPRTxxx (TM-P20: Queue name)
❏ UPOS : ESDPRTxxx (UPOS for TM-P20)
❏ ESC/POS command : Displayed virtual COM port (e.g. COM4)
G
The Connection complete window appears. Click Test Buzzer or Test Printing to check operation. The printer
buzzer sounds or printing starts.
H
Click Back to Main to return to the main window.
I
Click the "x" button of TM Bluetooth Connector to exit.
Installing the Utility
The utility can also be installed with Easy Install on the TM-P20 Software & Documents Disc.
Easy Install installs TM-P20 Utility for a USB connection. For a Wi-Fi network connection, it installs TM-P20 Utility,
EpsonNet Config, Epson Monitoring Tool, and TM Bluetooth Connector. For a Bluetooth connection, it installs
Epson TM Bluetooth Connector.
Custom Install allows you to select utilities you want to install from the following.
❏ TM-P20 Utility Ver.x.xx
❏ EpsonNet Config Ver.x.xx
❏ Epson Monitoring Tool Ver.x.xx
❏ Epson Deployment Tool Ver.x.xx
❏ Epson TM Bluetooth Connector Ver.x.xx
❏ Epson TM Virtual Port Driver Ver.x.xx
TM-P20 Software Installer Software User's Manual
Installation
43

Epson TM-P20 Specifications

General

Type	POS printer
Color	No
Print technology	Thermal
Maximum resolution	203 x 203 DPI
Rechargeable	Yes
Electromagnetic compatibility	FCC class A, CE
Mean cycles between failures (MCBF)	16000000
Power source type	AC, Battery
Battery life (max)	16 h
Product color	Black
Safety	EN
Country of origin	China
Sound pressure level (printing)	57 dB
Mean time between failures (MTBF)	120000 h
Media thickness	0.05 - 0.08 mm
Maximum roll diameter	40.4 mm
Supported paper width	58 mm
Wi-Fi standards	802.11a, 802.11b, 802.11g
USB connector	Mini-USB Type-B
Standard interfaces	NFC, USB 2.0
Connectivity technology	Wired & Wireless
Package depth	240 mm
Package width	195 mm
Package height	145 mm
Package weight	1482 g
Cables included	AC, USB
Quantity per pack	1 pc(s)
Operating relative humidity (H-H)	10 - 90 %
Pallet width	800 mm
Pallet height	1020 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	216 pc(s)
Quantity per pallet (UK)	288 pc(s)
Quantity per pallet layer	36 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	48 pc(s)

Weight and Dimensions

Depth	120 mm
Width	79 mm
Height	44 mm
