Setup & Operation 13. Standard I/O Connector
94 VT Rev.1

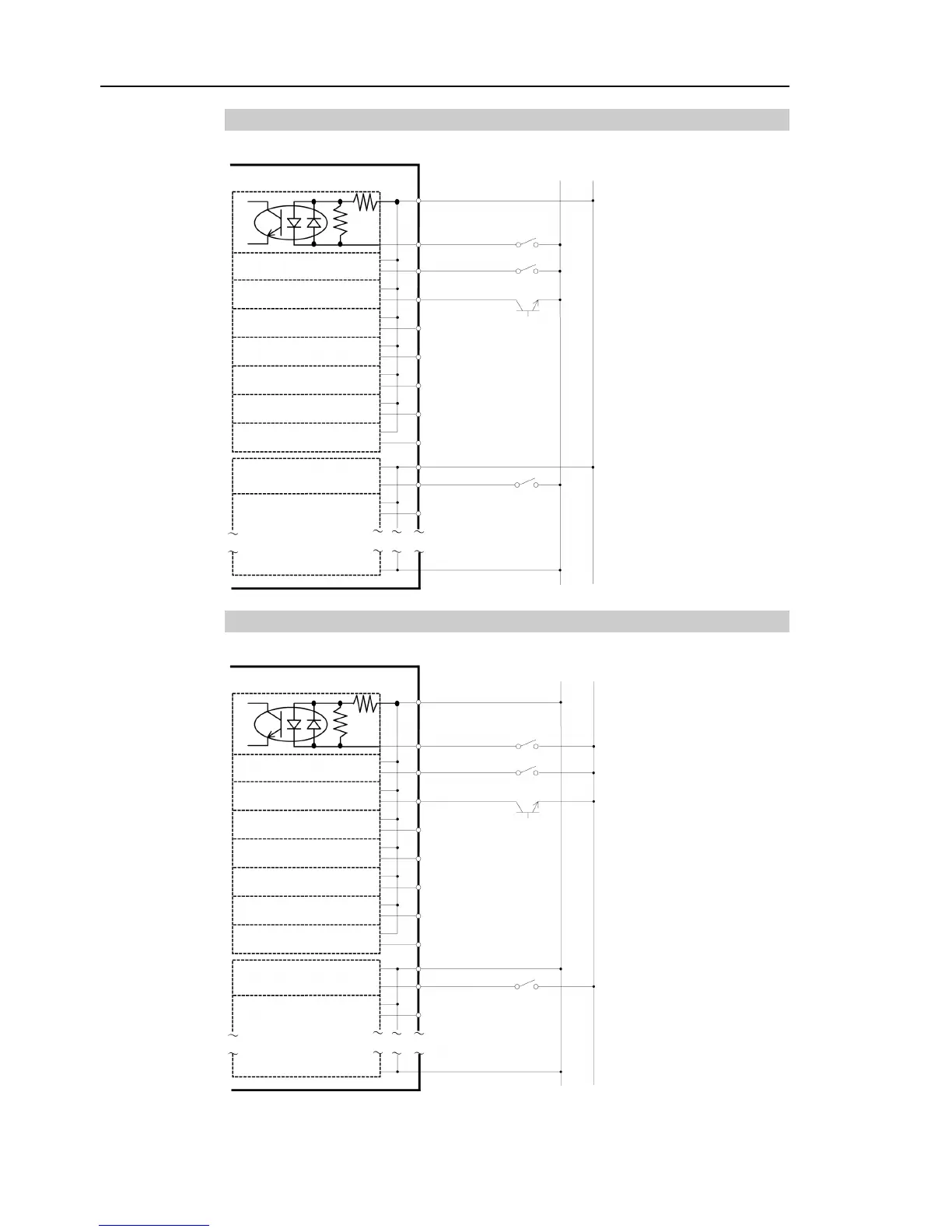

13.1.1 Typical Input Circuit Application
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
5 Input No.0 to 7 common
1 Input No.0
15 Input No.1
2 Input No.2
16 Input No.3
3 Input No.4
17 Input No.5
4 Input
No.6
18 Input No.7
Omit
GND +DC
19 Input
No.8 to 15 common
6 Input No.8
20 Input No.9
14 Input No.16 to 23 common
Standard I/O (Input) Connector
13.1.2 Typical Input Circuit Application 2
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
5 Input No.0 to 7 common
1 Input No.0
15 Input No.1
2 Input No.2
16 Input
No.3
3 Input No.4
17 Input No.5
4 Input No.6
18 Input No.7
Omit
GND +DC
19 Input No.8
to 15 common
6 Input No.8
20 Input No.9
Standard I/O (Input) Connector
14 Input No.16 to 23 common
