Epson VT Series User Manual

Maintenance 16. LED Plate
226 VT Rev.1

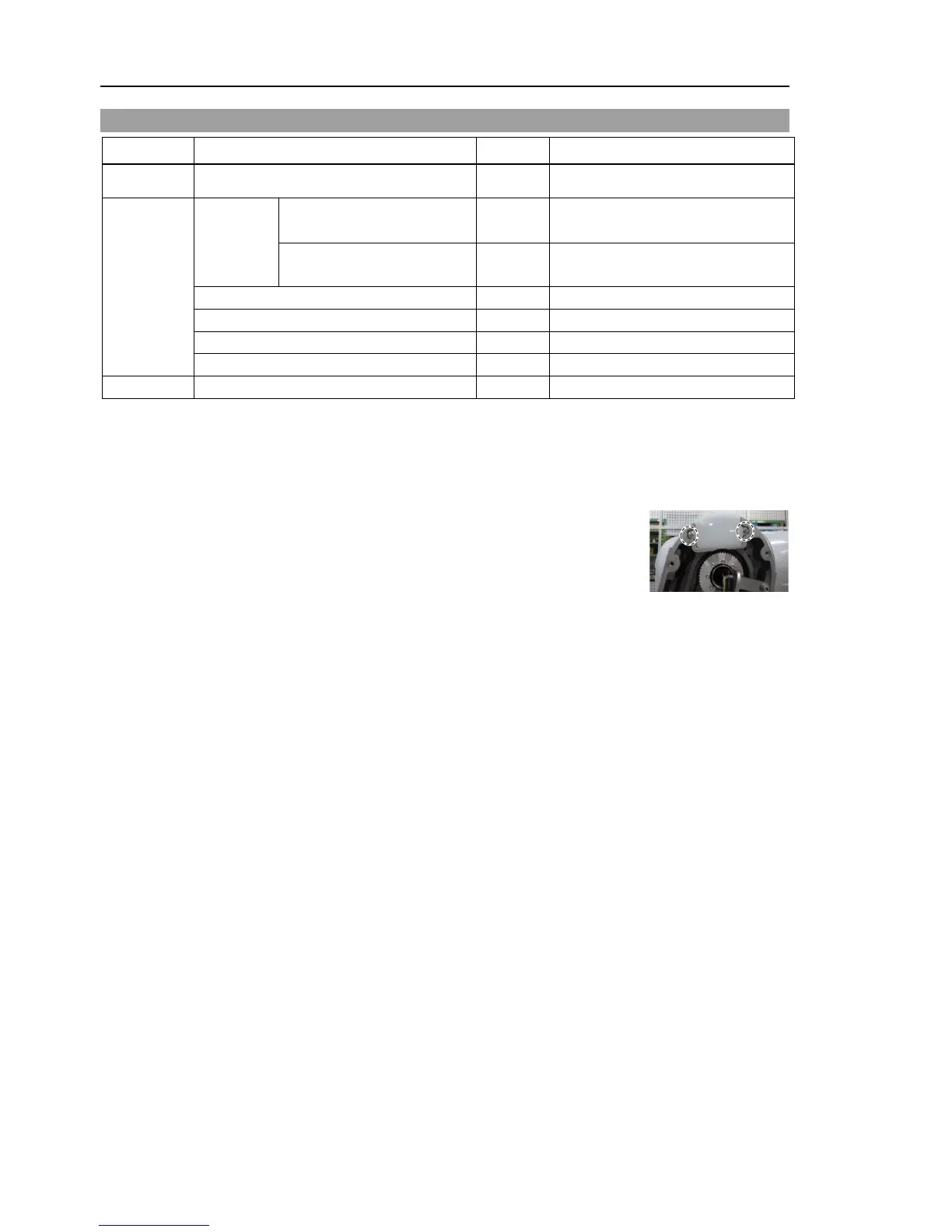

16.1 Replacing LED Plate
Name Quantity Note
Maintenance
parts
LED Plate 1 1749496
Tools
Hexagonal
wrench
width across flats: 2.5 mm 1
For M3
hexagon socket head cap
bolts
width across flats: 3 mm 1
For M4
hexagon socket head cap
bolts
Torque wrench
1
For tightening torque control
Cross-point screwdriver (No. 2)
1
For cross-recessed screw
Nippers
1
For cutting wire tie
Belt tension meter
1
Refer: Unitta U-505
Material
Wire tie
-
LED
Plate
Removal
(1)
Turn OFF the Manipulator.
(2)
Remove
the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
(3)
Remove
the LED plate.
Cross-recessed screws: 2-M3×10
LED Plate
Installation
(1)
Install
the LED plate.
Cross-recessed screws: 2-M3×10
Tightening torque: 0.45 ± 0.1 N·m
(2)
M
ount the Arm #2 Cover.
Reference: Maintenance 7.2 Arm #2 Cover
