Maintenance 15. AMP Board
222 VT Rev.1

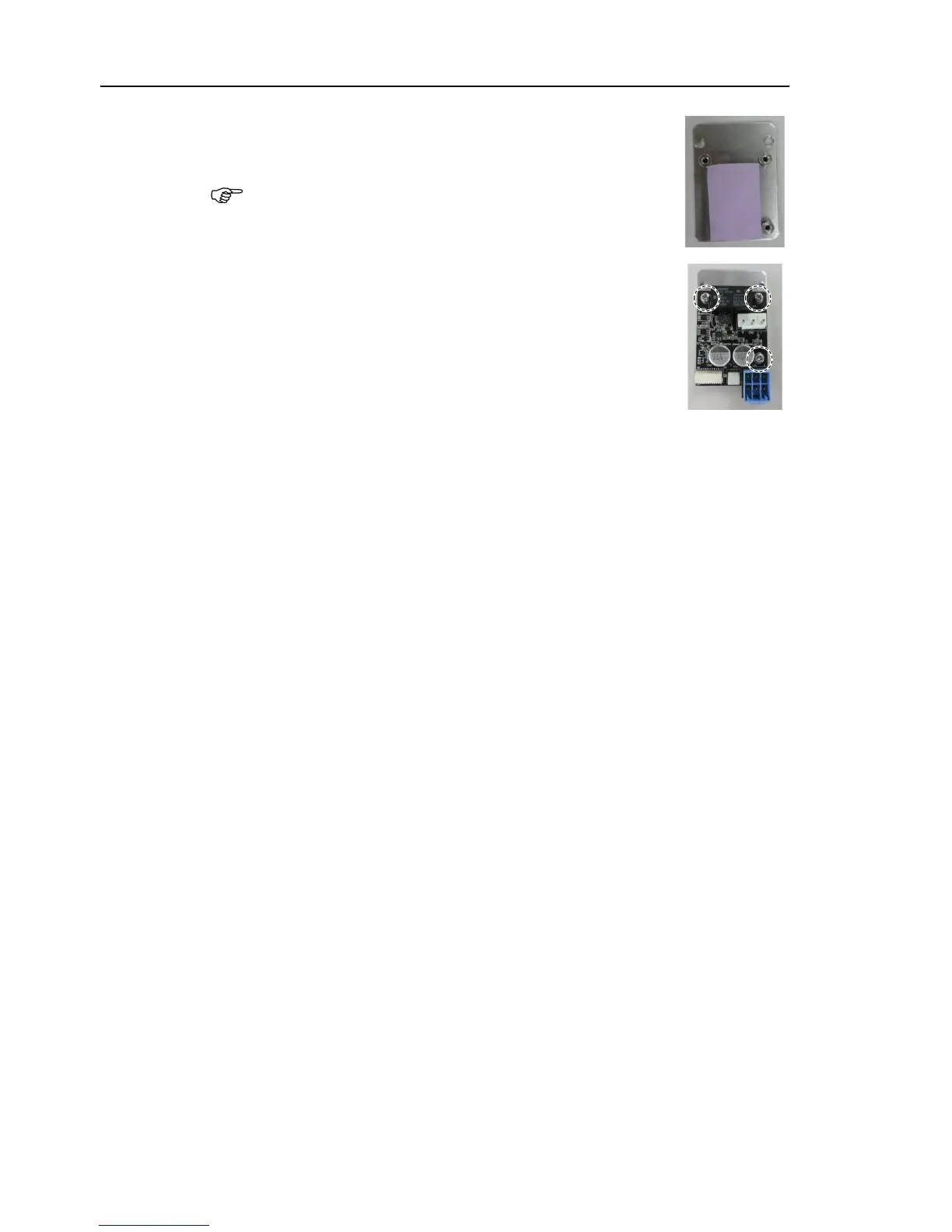

the thermal sheet is removed in the Removal step (3), attach
the thermal sheet in the direction that the longer sides of
thermal sheet and the plate are parallel. As shown in the
the attachment position is inside the range surrounded by
three spacers of the AMP board fixing part.
the AMP board on the plate.
Cross-recessed screws with a washer: 3-M3×6
Tightening torque: 0.45 ± 0.1 N·m
the plate (with AMP board) to the motor unit and mount the motor unit.
Reference: Maintenance 9.1 Joint #1 Motor Installation
Maintenance 10.1 Joint #2 Motor Installation
Maintenance 11.1 Joint #3 Motor Installation
