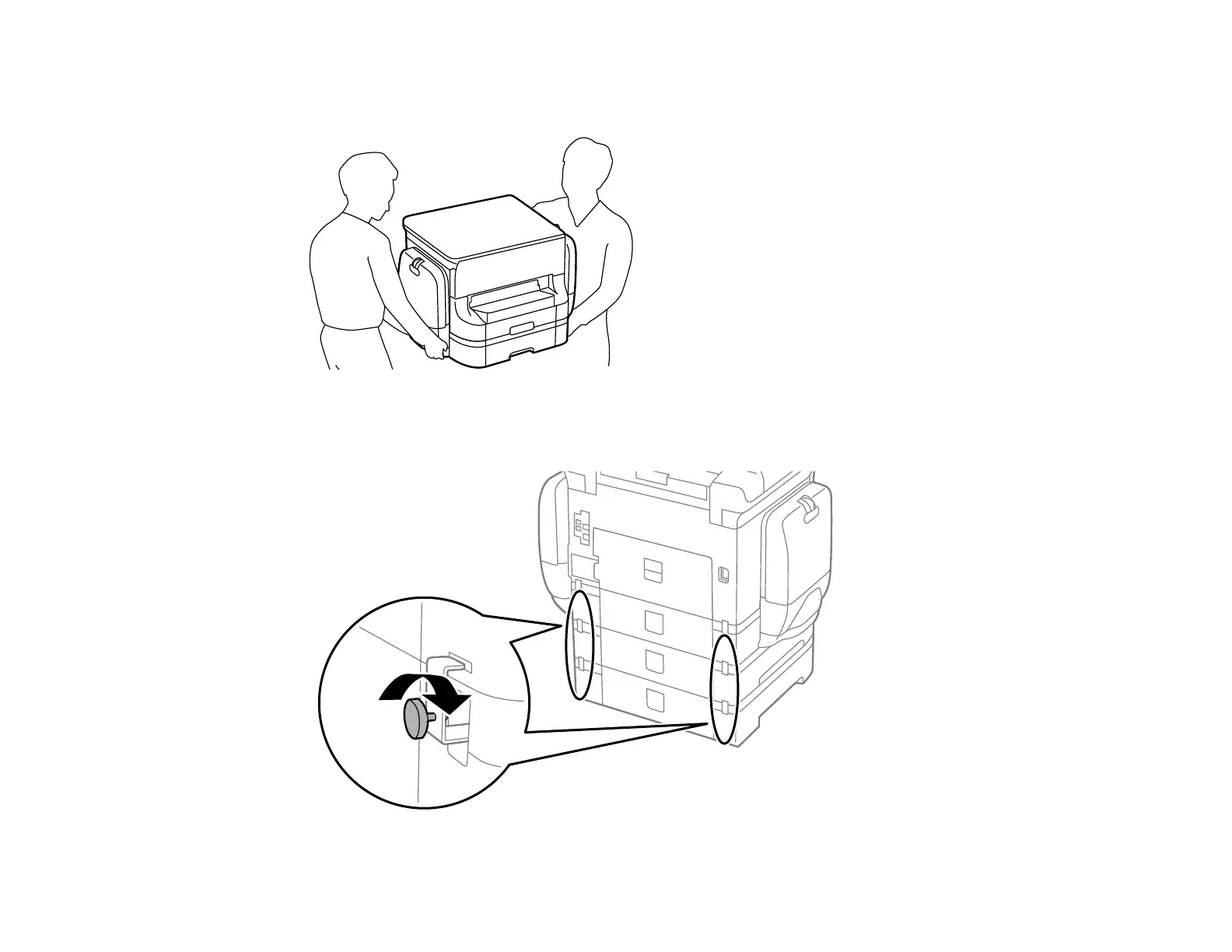

Warning: To lift the product, have two people hold it as shown here. Lifting from other areas may

cause the product to fall or cause you to pinch your fingers when placing the product down.

10. Secure the back of the paper cassette units to each other and to the product using the included

brackets and screws.
