• Any Port (Network)@Any - any shared ISDN trunks running in Network mode.
• ISDN Trunk@ipaddress - shared ISDN trunks on the selected gateway (where ipaddress is the IP address of the ISDN gateway that shares its ISDN
trunks)
• Any Port (User)@ipaddress - any shared ISDN trunks from the selected gateway running in User mode.
• Any Port (Network)@ipaddress - any shared ISDN trunks from the selected gateway running in Network mode.
The Call Routing Wizard - Page 3 appears if the Filter on Source / Modify Caller ID checkbox had been enabled on Page 1 of the Call Routing Wizard.
It will require information about the source caller.
The Source Number Pattern field requires the caller address for which the current route will be applied. The complete list of characters and wildcards is
allowed in this text field (see chapter
Allowed Characters and Wildcards).
The Source Type drop down list gives you the option to select the source type (PBX, SIP, ISDN, FXO, E1/T1, SIP Tunnel, Any) used by the source caller to
reach the QX.
The settings in the Caller ID Modification group allow Caller IDs of source calls to be modified.
The Number of Discarded Symbols (NDS) text field requires the number of digits that should be discarded from the beginning of the Source Number
Pattern. The field should be empty if digits do not need to be discarded. Only numeric values are allowed for this field, otherwise the error message
“Error: Number of Discarded Symbols is incorrect - digits allowed only” will appear.
The
Prefix
text field requires entering the symbols
(alphanumerics and any characters supported in the SIP
username) that will be placed in front of the Source Number
Pattern instead of the discarded digits. (For example, if the
routing pattern is 12345, the Number of Discarded Symbols is
two, and the prefix digits are 909, the final phone number will be
909345.) Wildcards are allowed here (see chapter
Allowed
Characters and Wildcards).
The two-stage dialing is available for PBX, ISDN, and E1/T1
destination types.
The Discard Non-Numeric Symbols checkbox is used to discard
any non-numeric symbols from the Source Number Pattern.

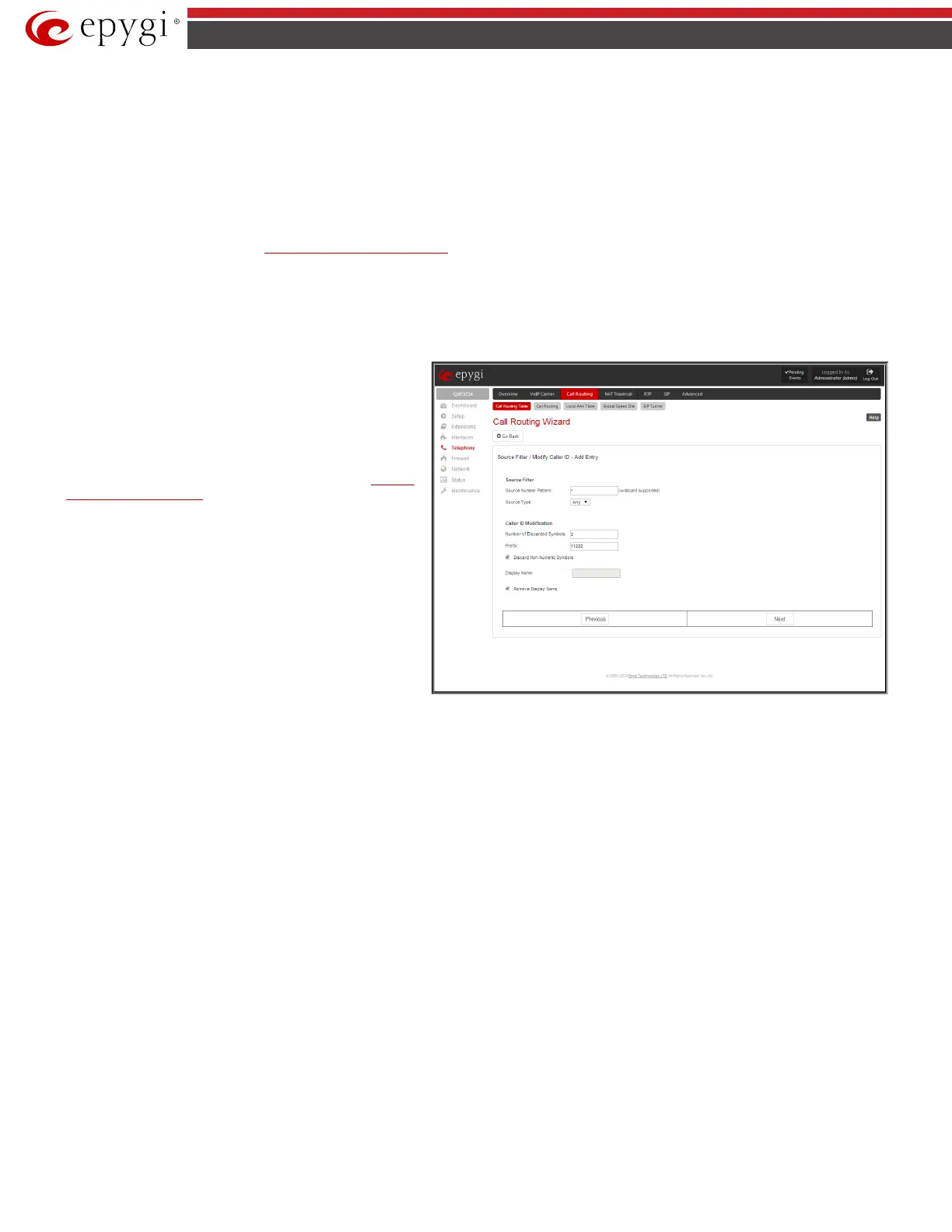

Fig.II- 69: Call Routing Wizard - page 3
The Display Name text field allows you to replace an original caller’s ID with the custom display name for the corresponding routing rule. This field is
optional and when it is left empty, an original caller ID will be displayed on the called destination’s phone, otherwise the name inserted here will appear
on the phone. This field is not available for PBX-Voicemail destination type routing rules.
The Remove Display Name checkbox is used to remove caller IDs from calls made with this routing rule. This checkbox is not available for PBX-Voicemail
destination type routing rules.
The Next button will open the Call Routing Wizard - Page 4 where different information about source caller will be required depending on the selected
Source Type. For the SIP source type, the Source Host text field will require one or more IP addresses or host names of the SIP server where the caller is
registered, or the caller’s device if they are direct calls, separated by a space. In case of FXO, ISDN or E1/T1 source types selected, Source Port ID drop
down list will require to select the FXO line number, ISDN or E1/T1 Trunk correspondingly, and on the next step, a list of timeslot(s) used to receive calls
from the defined caller.
The Call Routing Wizard – Date/Time Rules - Add Entry page appears if the Set Date / Time Period(s) checkbox previously had been enabled on Page
1 of the Local Call Routing Wizard. It will require information about the pattern validity period(s).
