QX50/QX200/QX2000; (SW Version 6.0.x) 79
QX50/QX200/QX2000 Manual II: Administrator’s Guide
CAS Signaling Wizard - Page 2
appears if the
Signaling Type
on the
previous page is set to any of the
E&M
types or to
R2 DTMF
. The page
provides the possibility of enabling the DID Service on the timeslot(s)
and contains the following component:
The Enable DID Service checkbox is used to enable/disable DID
(Direct Inward Dialing) service for the selected timeslot(s).

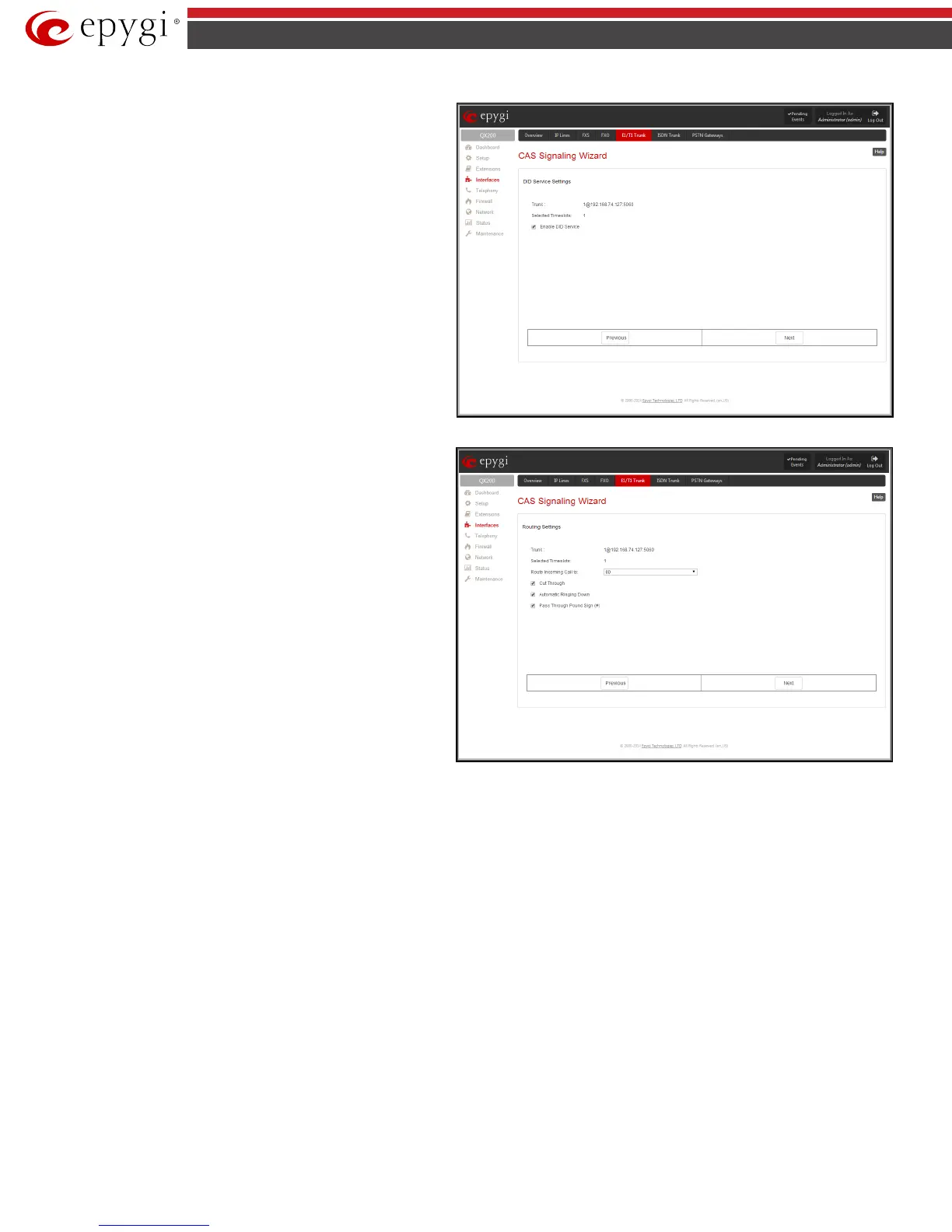

Fig.II- 116: CAS Signaling Wizard – Page 2
CAS Signaling Wizard – Page 3
allows to set the destination for
incoming calls to be routed to and to enable Cut Through and
Automat Ringing Down services for signaling different from R2 (all
types).
Route Incoming Call to drop down appears when Both incoming
and outgoing calls or Incoming calls only is selected from the
Allowed Call Type list and allows selecting the destination where
incoming calls should be routed. The list contains all extensions of the
QX, Attendant and Routing agent. The routing agent gives two kinds of
call routing possibilities in user mode and one in network mode.
Choosing the Routing selection (available in User mode only) will
request the caller to pass the authentication (if enabled) and will
invite the caller to dial the destination number to connect the user
within the QX Network. Choosing the
Routing with inbound
destination number selection will automatically use the initially
dialed number to connect the destination without any additional
dialing.
When DID service is enabled (in User mode only), incoming calls can
be only routed to the Routing agent with simple Routing and Routing
with inbound destination number
call routing possibilities.
Fig.II- 117: CAS Signaling Wizard – Page 3
Attention: When QX acts in the Network mode with the Attendant as a destination to route the incoming calls, digit forwarding should be disabled on the
PBX side. Otherwise, incoming digits may be mistaken as special calling codes on the QX IP PBX’s Attendant.
Cut Through checkbox is available when signaling selected from the Signaling Type drop down list on the CAS Signaling Wizard – Page 2 is different
from R2 (all types) and is used to reconnect the call (terminated by some reason, e.g. user error, network problems, etc.) by going on-hook and off-hook
again even if the call partner is off-hook and not involved in the call.
Automat Ringing Down checkbox is available when signaling selected from the Signaling Type drop down list on the CAS Signaling Wizard – Page 2 is
different from R2 (all types) and allows an E1/T1 device connected to the QX to establish a hot-line call (automatic call without any digits dialed).
Pass Through Pound Sign (#) checkbox is only available when signaling selected from the Signaling Type drop down list on the CAS Signaling Wizard
– Page 2 is different from E&M FGD or R2 (except for R2-DTMF). When this checkbox is selected, the pound sign (#) detected in the dialed number will be
passed through and will be considered as a part of the dialed number. When this checkbox is not selected, the detected pound sign (#) will be considered
as a call acceleration digit.
