Installation Advice

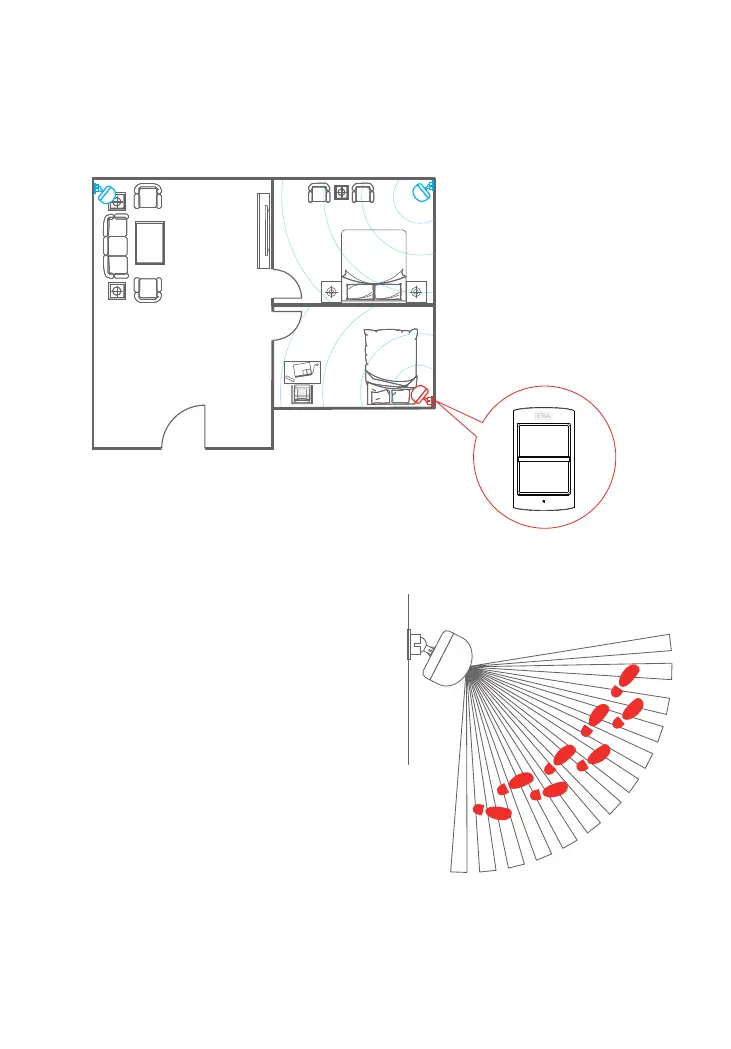

1. Fit/position Sensor(s) so that the detection range covers primary entry/exit points
2. Adjust the Sensor Angle for maximum coverage
The installation angle affects sensitivity
directly.
For optimal sensitivity the walk direction
must be vertical to the infrared
direction.
