What this device is
10/2020 1020217-00A Operating instructions – 29/96

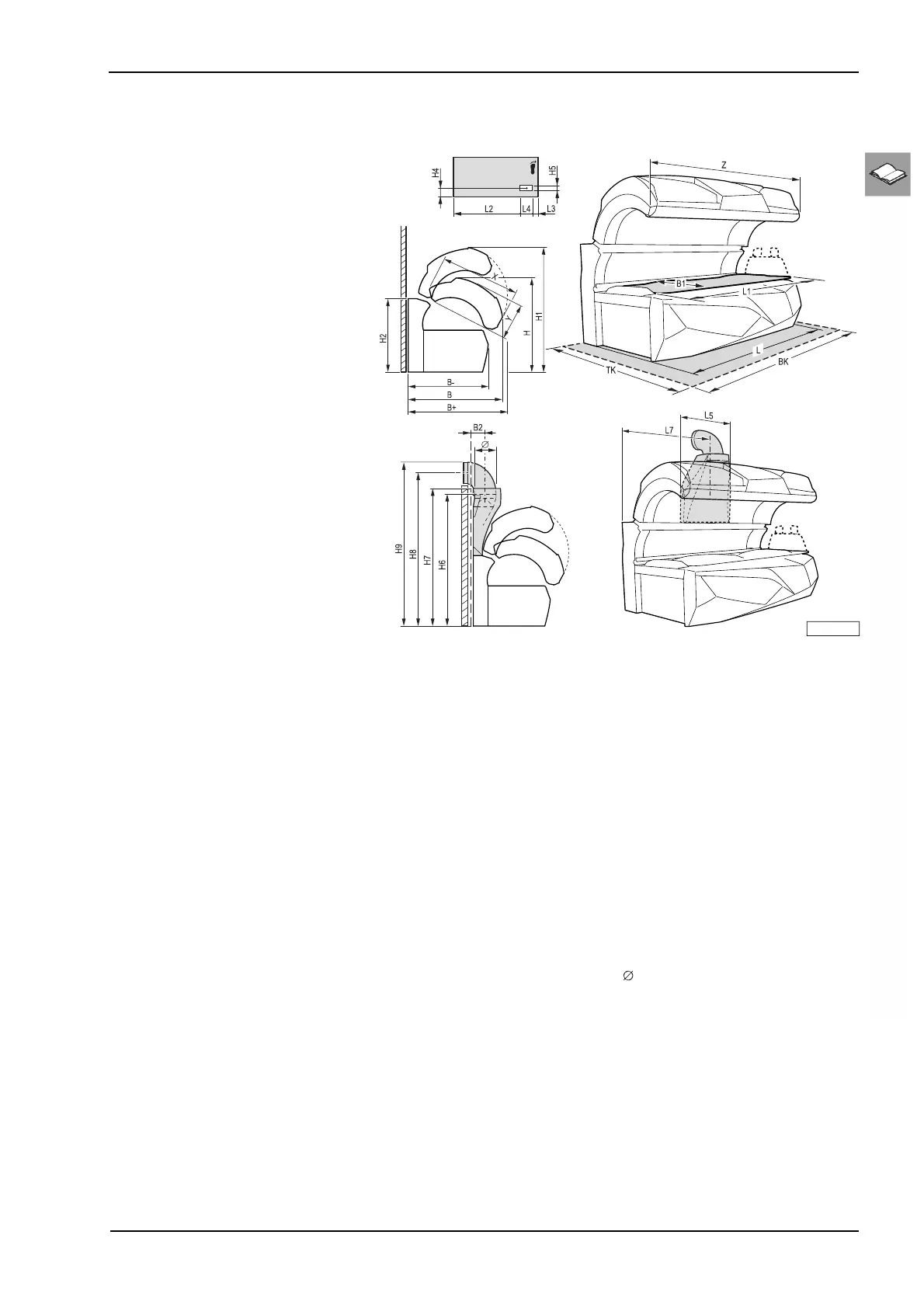

3.10.2 Dimensions
17401 / 0
B + = 54 1/4 in 1,378 mm H = 55 1/2 in 1,410 mm
B = 52 5/16 in 1,328 mm H1 = 68 11/16 in 1,745 mm
B - = 51 9/16 in 1,309 mm H2 = 42 7/16 in 1,078 mm
B1 = 31 1/2 in 800 mm H4 = 15 12/16 in 400 mm
B2 = 7 6/16 in 188 mm H5 = 4 1/2 in 114 mm
L* = 92 ½ in 2,350 mm H6 = 74 5/16 in 1,887 mm
L = 89 in 2,260 mm H7 = 77 11/16 in 1,974 mm
L1 = 78 12/16 in 2,000 mm H8 = 86 1/2 in 2,197 mm
L2 = 68 2/16 in 1,730 mm X = 43 6/16 in 1,101 mm
L3 = 9 6/16 in 238 mm Y = 22 1/2 in 572 mm
L4 = 10 7/16 in 265 mm Z = 89 in 2,260 mm
L5 = 34 2/16 in 867 mm
= 11 13/16 in 300 mm
L6 (L7) = 43 15/16 in 1,116 mm BK = 94 1/2 in 2,400 mm
TK = 90 9/16 in 2,300 mm
