Function LEDs
3.4 Chest Belt
Intended use
The chest belt conducts the ECG signal acquired by two dry electrodes on the skin surface to the
attached 1-channel transmitter. The chest belt is intended for short-term use on intact skin of
adult patients. The chest belt is used for telemetric monitoring in rehabilitation programs. The
device is non-critical and supplied non-sterile for single-patient use. This means it may be reused
on the same patient if cleaned according to instructions.
The elastic textile chest belt contains two integrated dry conductive polymer electrodes. The tex-
tile chest belt is attached to the 1-channel transmitter by means of snap fasteners. A clasp and
loop are provided on the end of the belt for fitting the belt to the body. Different belt lengths can
be adjusted by means of the buckle.
The chest belt is a type CF, defibrillation-proof applied part.
Product description

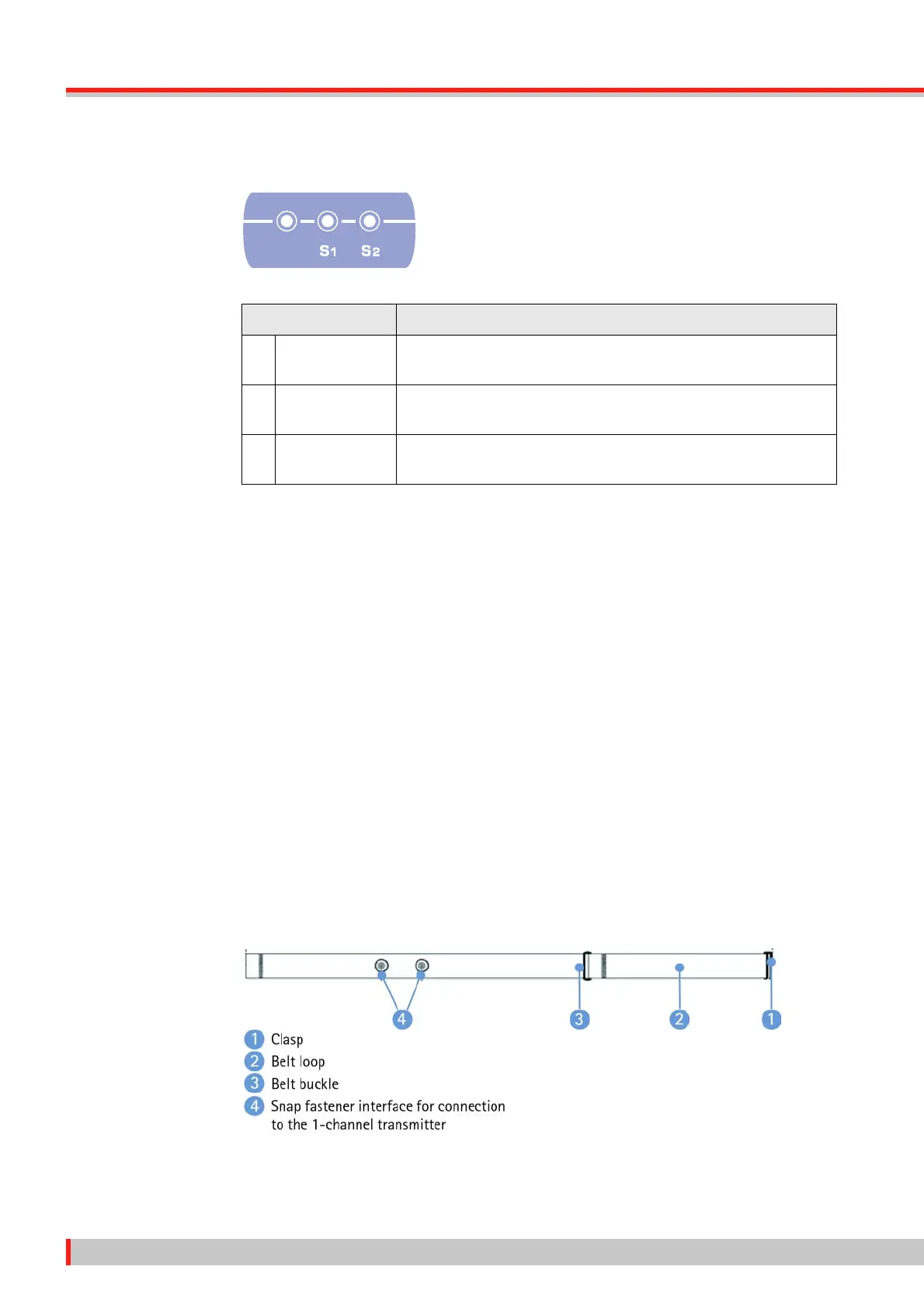

Front
LED Indicator Operating Status
1 Power supply LED on = receiver ON, powered via USB
LED off = receiver OFF, no power supply via USB
2 S1 LED on = receiver ready for connection to transmitter
LED off = receiver not ready for connection
3 S2 LED on = receiver is connected to at least one transmitter
LED off = receiver is not connected to any transmitter
