ergoline ers2 - Dimensions

9 Technical Specifications
ers2 – 1-Channel ECG Telemetry System 51
201000401000 / Rev 04

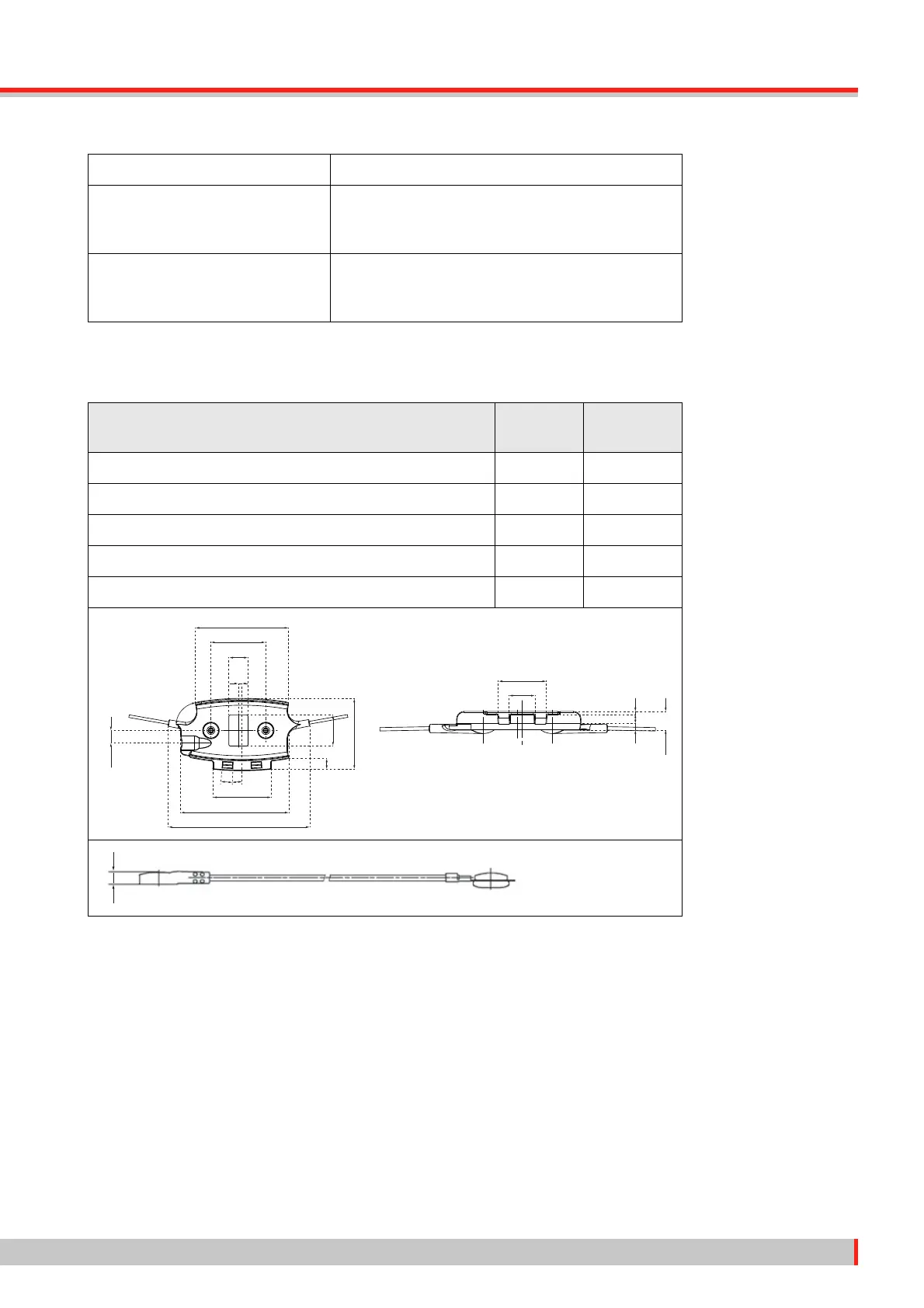

9.5.2 Dimensions
Biocompatibility ISO10993
Operating conditions Temperature: +10 to +35 °C
Rel. humidity: 30 to 75 % (no condensation)
Atmospheric pressure: 700 to 1,060 hPa
Transport and storage conditions Temperature: –20 to +65 °C
Rel. humidity: 10 to 95 % (no condensation)
Atmospheric pressure: 500 to 1,060 hPa
Description Dimension Permitted
Deviation
Length of silicone cord 1020 mm +/– 10 mm
Length of ECG leadwire 250 mm +/– 15 mm
Width of cradle 58.8 mm +/– 1 mm
Length of cradle 87 mm +/– 1 mm
Distance between snap fastener contacts from center to center 44.5 mm +/– 0.5 mm
115.16
80°
87.01
47.5
10.25
15.3
44.5
75.74
8.6
25.3
58.8
2°
2°
3
15.72
31.63
11.75
23.5
4.3
