ergoline ers2 User Manual

9 Technical Specifications
50 |
50
201000401000 / Rev 04

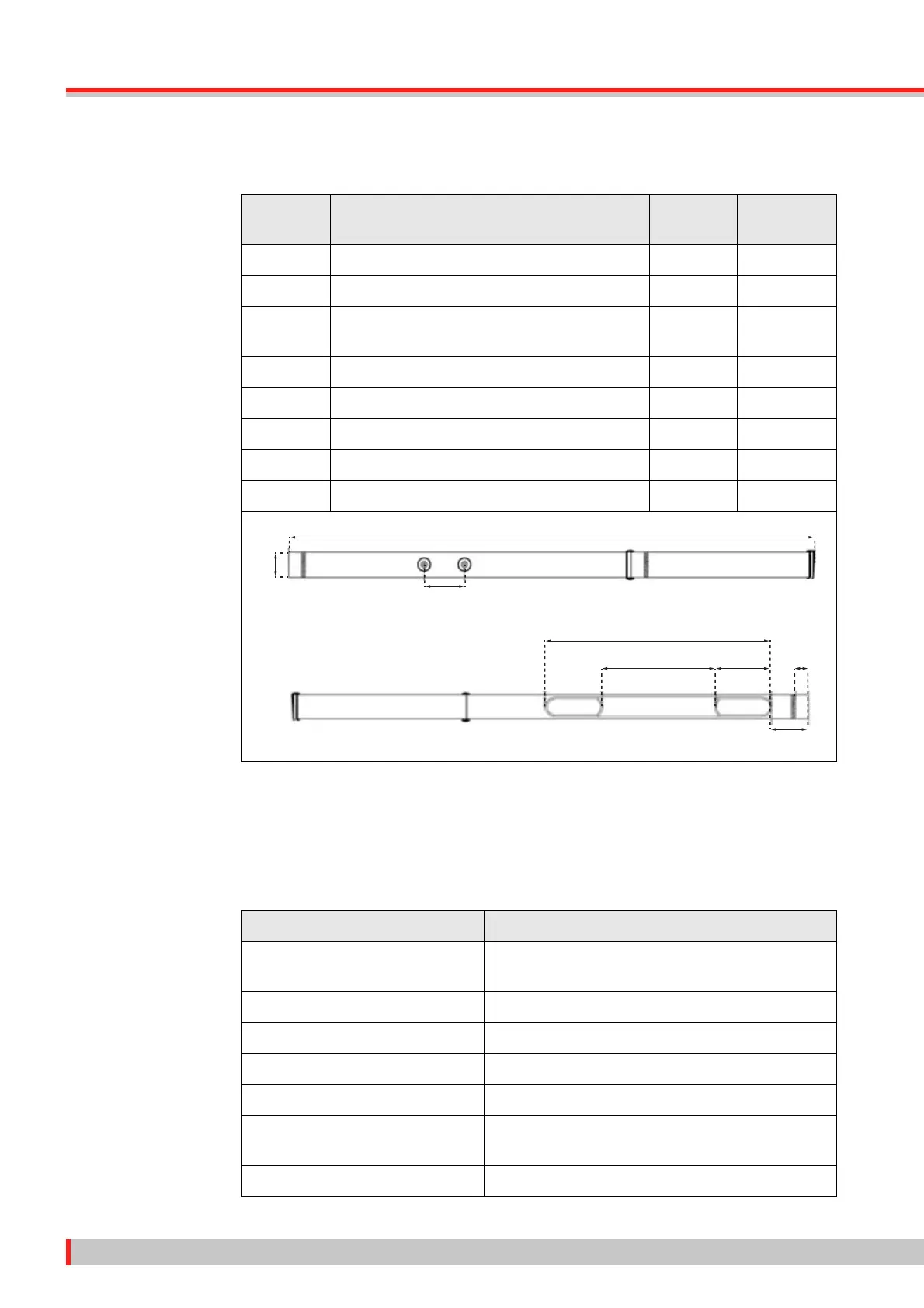

9.4.2 Dimensions
9.5 Adapter
9.5.1 Summary
Reference
Letter
Description Dimension Permitted
Deviation
A Length of chest belt 880 mm +/– 20 mm
B Width of chest belt 30 mm +/– 1 mm
C Distance between snap fastener contacts from
center to center
44.5 mm +/– 0.5 mm
D Length of sensor module 270 mm +/– 2 mm
E Length of sensor 63 mm +/– 2 mm
F Length of center textile 134 mm +/– 2mm
G Distance from edge of sensor module to loop end 45 mm +/– 3 mm
H Length of loop 15 mm +/–
FRONT SIDE
C.
B.
A.
BODY SIDE
F. E. H.
G.
D.
Description Data
Applied part • Type CF, defibrillation-protected
• ANSI/AAMI EC53
Cord Silicone
Cord stopper Plastic
Cradle Thermolast K
Leadwire M-PUR
Spring of snap fastener for connec-
tion of 1-channel transmitter
Nickel-free, CuZn, silver
Insulation ECG snap connector M-PUR
