MIG/MAG WELDING
Settings
Settings Setting range In steps of: Default setting
Welding method MIG/MAG, MMA or
Arc--air gouging
-- MIG/MAG
2/4--stroke* 2--stroke or 4--stroke -- 2-- stroke
Crater filling* ON or OFF -- OFF
Crater filling time 0--5s 0.1 s 1.7 s
Inductance 0 -- 100 1 70
Gas pre-- flow 0.1 -- 25.0 s 0.1 s 0.1 s
Creep start ON or OFF -- ON
Burnback time 1 -- 350 ms 10 ms 100 ms
Gas post--flow 0.1 -- 20 s 1s 0.5 s
Voltage 8--60V 0.25 V (displayed with
one decimal)
12 V
Wire feed speed 0.8 -- 25.0 m/min 0.1 m/min 5m/min
*) These functions cannot be changed while welding is in progress.
2--stroke
Gas pre-- flow Hot
start
Welding Crater
filling
Gas post--flow

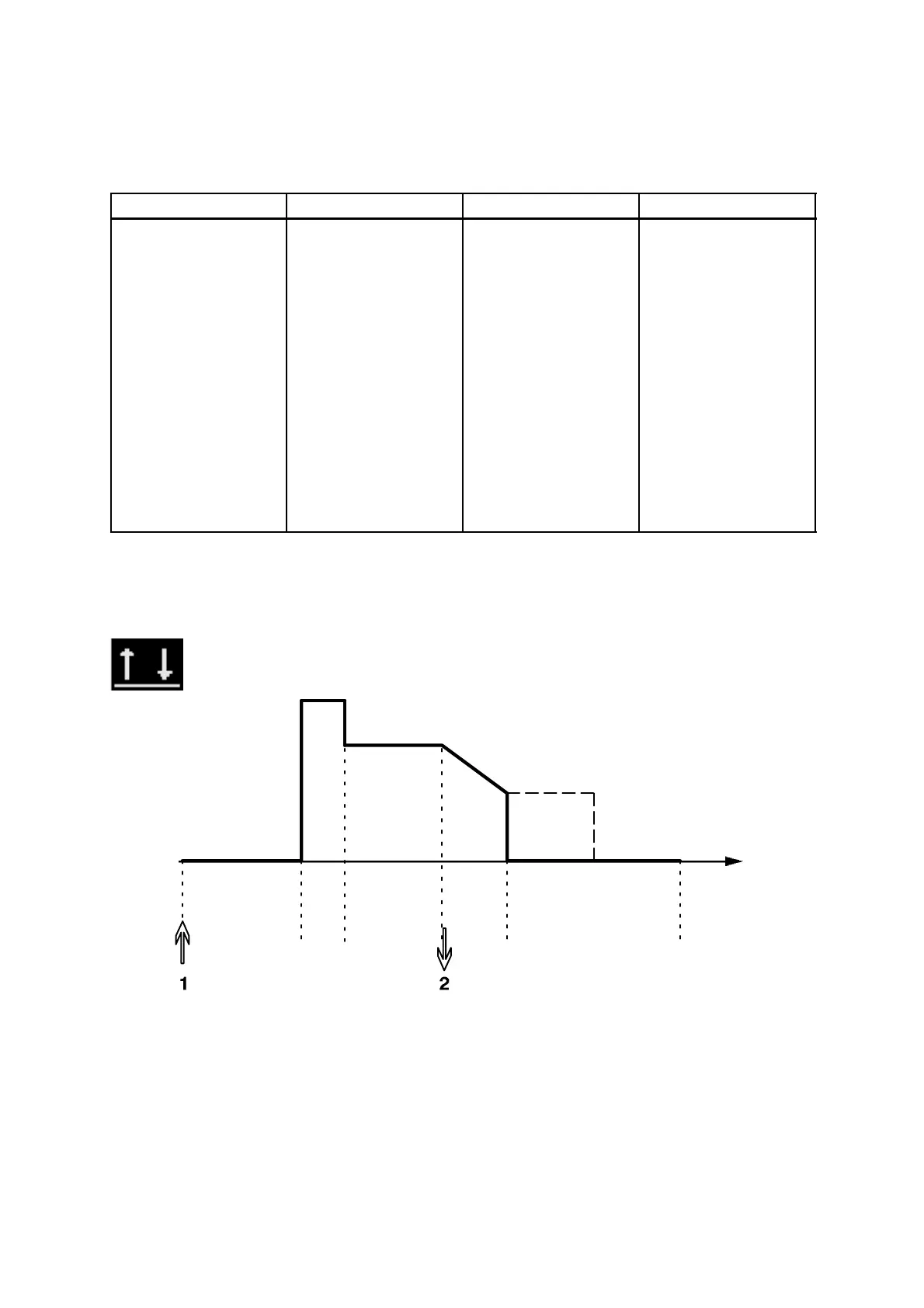

Functions when using 2--stroke control of the welding gun.
Gas pre--flow (if used) starts when the welding gun trigger switch is pressed (1). The
welding process then starts. When the trigger switch is released (2), crater filling starts (if
selected) and the welding current is stopped. Gas post--flow starts (if selected).
TIP: Pressing the trigger switch again while crater filling is in progress continues crater
filling as long as the switch is held depressed (the dotted line). Crater filling can also be
interrupted by quickly pressing and releasing the trigger switch while it is in progress.
