ESAB Aristo MA4 - 1 AP1 Component Positions

S0740 800 152/E061012/P36
-- 7 --
ci01d1

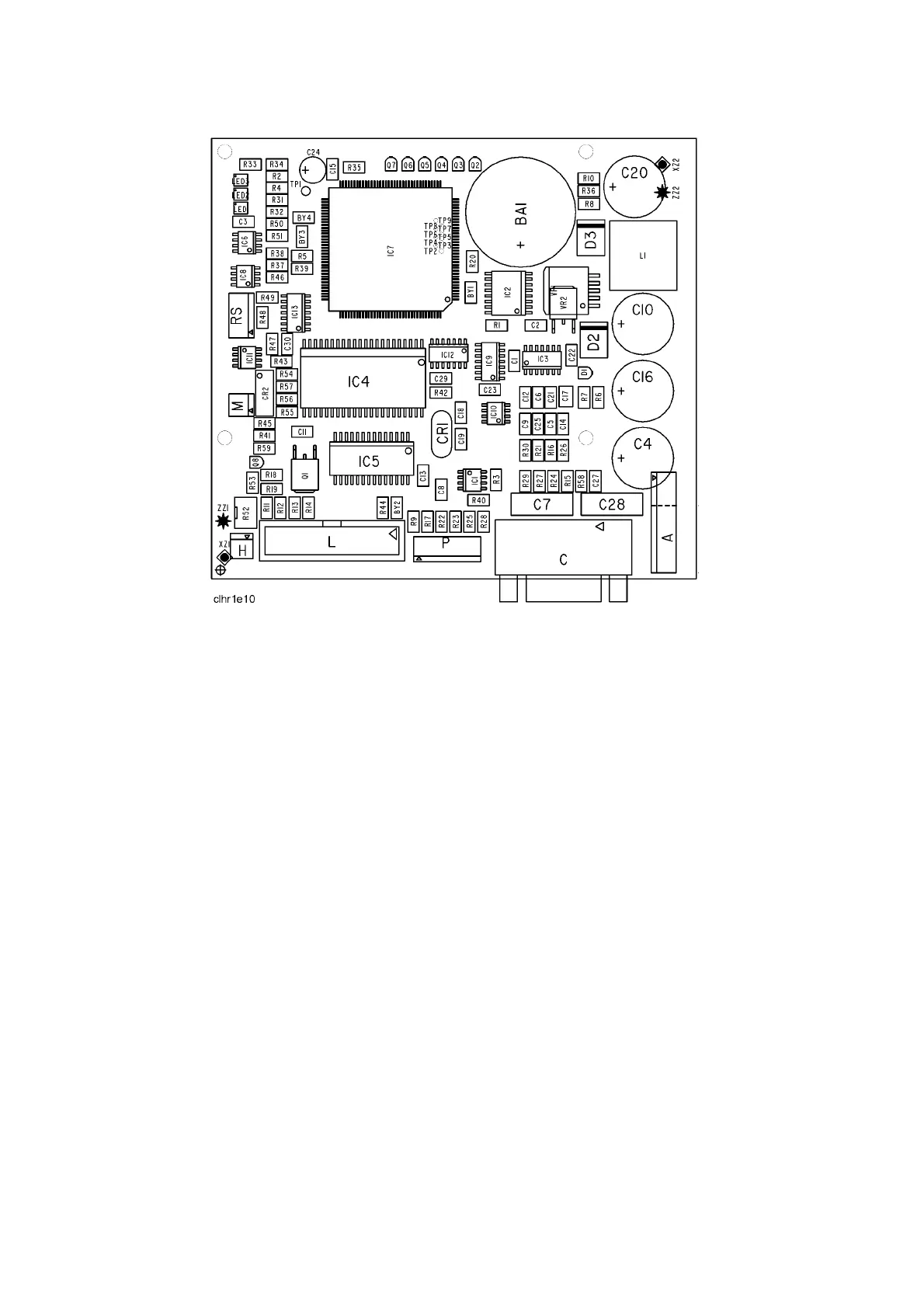

1AP1 Component positions
The printed circuit board is the same, regardless of which type of panel it is
used for. The picture above shows all the components with which the board
may b e fitted: the exact choice of components varies, depending on the panel.
