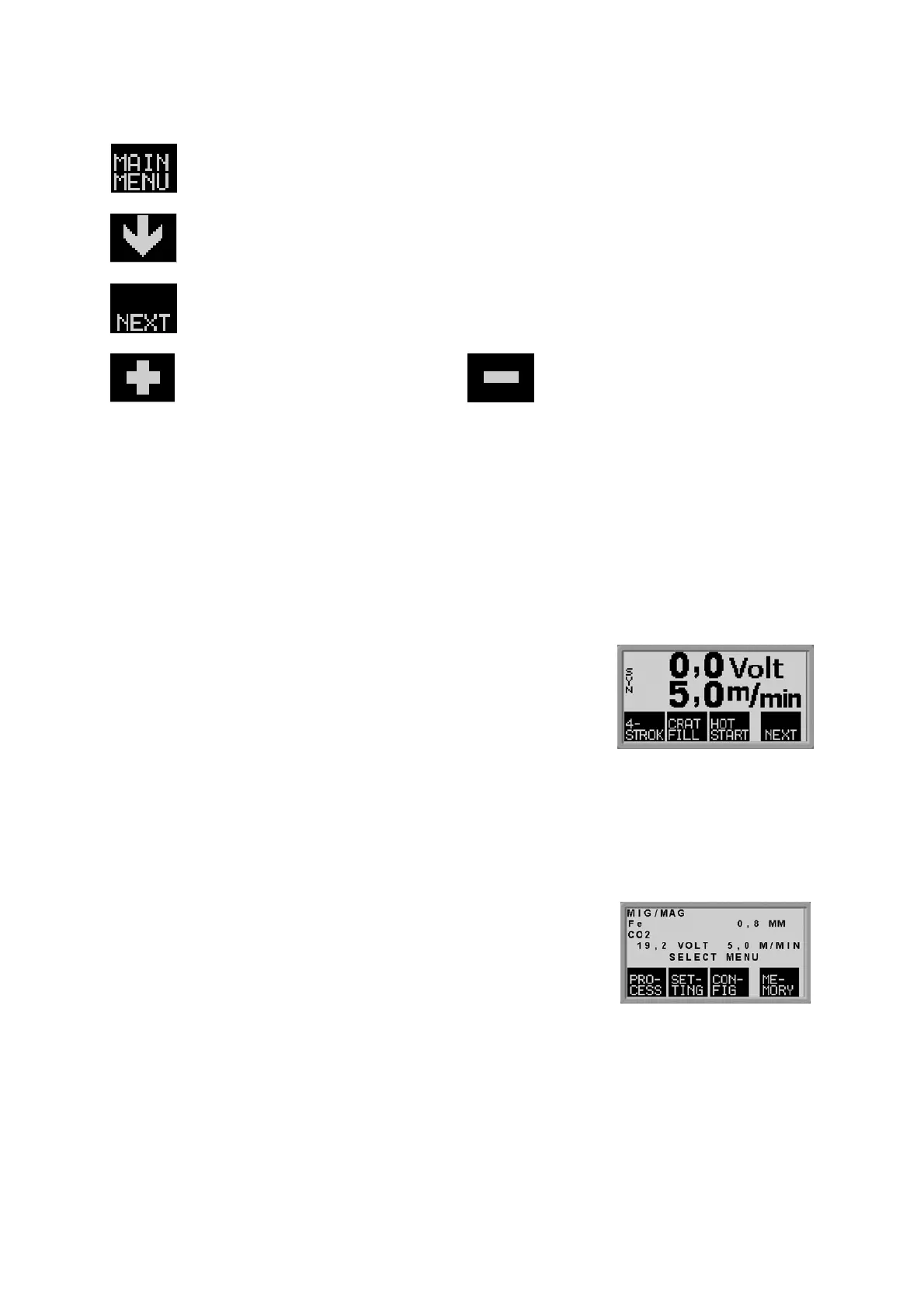

Symbols in the display
Back to the main menu.
Move the cursor down to a new setting parameter.
Change the function in the selected line.
Increase the value. Decrease the value.
MENUS
The control panel uses several different menus: the main menu, the measurements menu,
the selection menu, the process menu, the settings menu, the configuration menu and the
memo ry menu. A startup display is also shown when starting, with information on the type
of panel and the software version in use.
The main menu an d th e measurements menu
The main menu always appears immediately after starting,
showing the values that are set. If you are in the main menu
when you start to weld, the menu changes automatically to show
the measured values (the measurements menu). The measured
values remain on the display even after welding stops.
Other menus can be accessed without losing the measured values.
It is only when a knob is turned or the welding method changed that the setting values are
displayed instead of the measured values.
The selection menu
Use the selection menu to select the next level of menu to which
you want to go: process, settings, configuratio n or memory.
