– 70 –
C420e

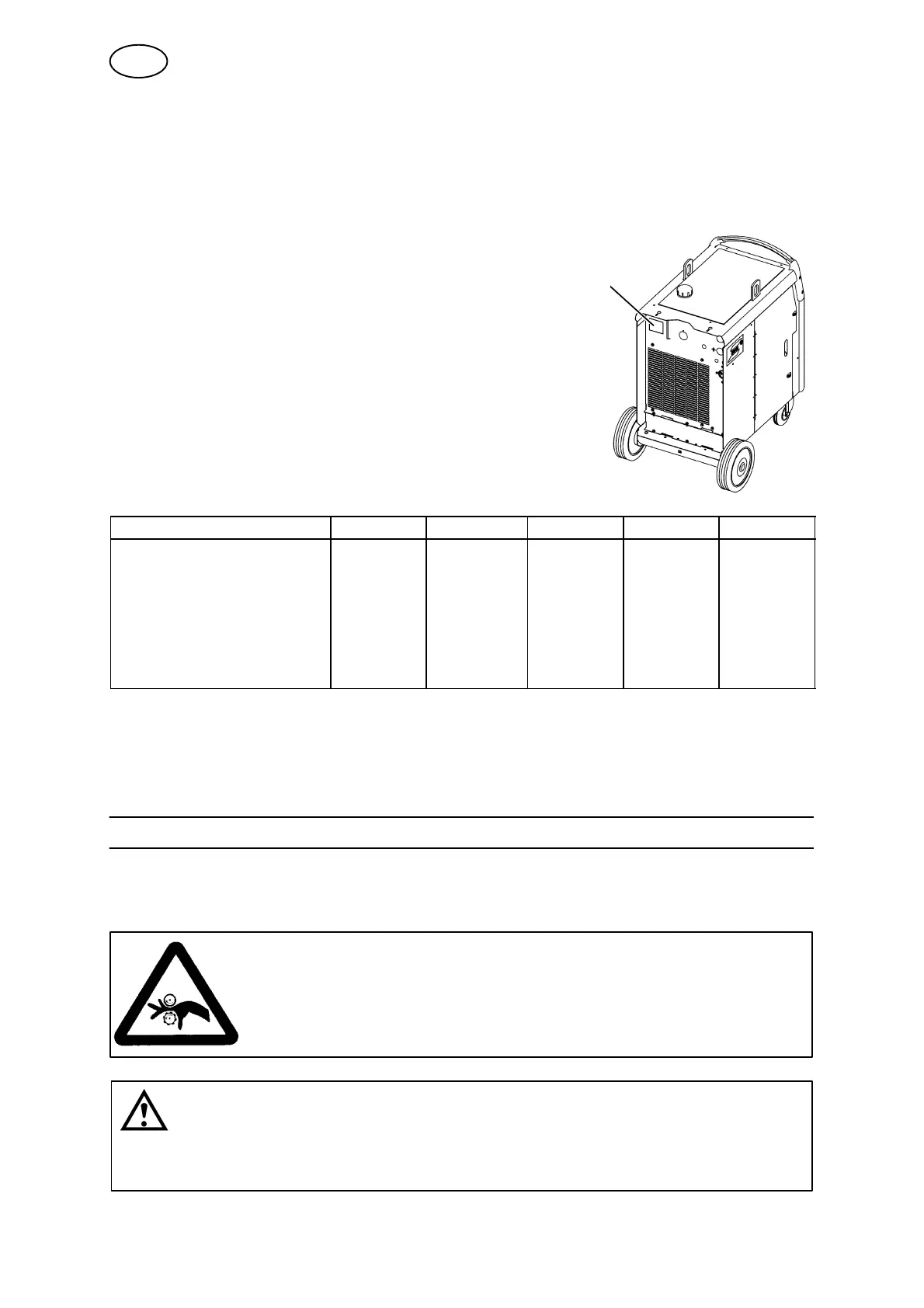

5.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
ESABMig C420w/C420sw 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz
Voltage V 230 400/415 500 230 440/460
Current A
at100% duty cycle 33 19
at 60% duty cycle 47 27
at 50% duty cycle 52 30
Cable area mm
2
4 x 10 4 x 4
Fuse, slow A 35 25
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 64. Read through before you start using the equipment!
WARNING!
Rotating parts can cause injury, take great care.
WARNING – TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10
o
. In that case appropriate securing has to be provided !
GB
