ESAB Multimaster 300X User Manual

19

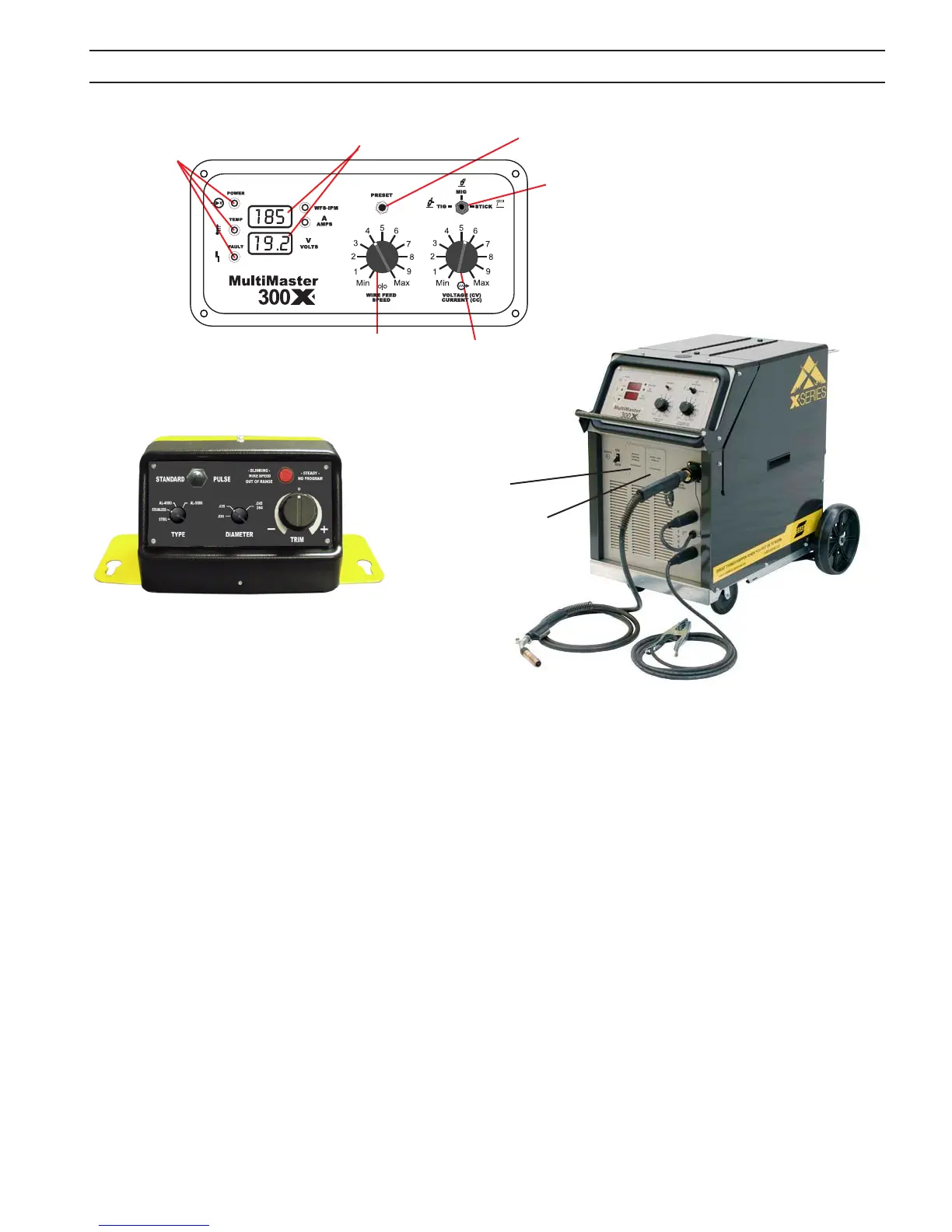

Digital Meter
Volts, Amps, and Wire feed speed
Voltage/Current
Control
Process Selector
Voltage Preset
Status Indicators
Wire Feed Speed
Control
Pulse Module Option
Pulse Mig Welding of Carbon Steel, Stainless
Steel and Aluminum
Remote Control
Option
“Spool-on-Gun”
Option
SECTION 2 DESCRIPTION
Optional Equipment
EURO CC Retrot Kit ......................................................................... 0558001082
NAS to Euro Adapter ..........................................................................0558002622
Primary Extension Cord (25 ft.) 50 amp .................................................37833
TIG Welding Handbook ..............................................................................781F29
MIG Welding Handbook ............................................................................ 791F18
Gas Meter (measures gas ow at the gun) ..............................................19043
Marathon Pak Inlet Adapter (ts QCA 899F50) ......................0558002354
Refer to Marathon Pak brochures for Cap and Conduit selections
50 mm Connectors - quick-acting twist lock connectors for
attaching output power cables or torches to power source:
Male for 1/0 to 4/0 cable ................................................................ 13792513
Female for 1/0 to 4/0 cable ........................................................... 13735631
Male for #2 AWG to 1/0 cable ......................................................13733936
Female for #2 AWG to 1/0 cable ..................................................13735632
Quick connector with 1/2 in. threaded stud .......................... 13735501
Tee connector - 1 male, 2 female ...............................................13792804
Tig/Stick Sets
Includes 15 ft. Electrode Holder, 12.5 ft. or 25 ft. HW-17V-2TL
Torch, Torch Accessory Kit, Remote Control Module, TC-2B
Thumb Control and TIG Handbook.
TIG/Stick Set 12.5 ft. .................................................................0558004449
TIG/Stick Set 25 ft. ..................................................................... 0558004450
Pre/Post Flow/Spot/Burnback module .................................... 0558002889
Inductance Control Module .......................................................... 0558002888
Remote Control Module ................................................................. 0558002605
FC-5C Foot Control - 30 ft. (9.1 m) cable ................................... 0558004234
Provides remote current control and connector (on/o) control and
requires Remote Control Module .............................................. 0558002605
TC-2B Thumb Control - 25 ft. ......................................................................33839
Provides remote current control and connector (on/o) control and
requires Remote Control Module .............................................. 0558002605
Spool Gun Module ............................................................................. 0558002606
MT-250SG Spool Gun ....................................................................................36779
Requires Spool Gun module .................................................. 0558002606
ST-23A Spool Gun ........................................................................................... 19164
Requires Adapter 37301 and Spool Gun module .............. 0558002606
Pulse Module Option ......................................................................... 0558002604
HW-17V-2TL (w/valve) Heliarc
®
Tig Torch 60 deg. 12.5 ft. ...................35857
HW-17V-2TL (w/valve) Heliarc
®
Tig Torch 60 deg. 25 ft. ......................35856
Tig weld without disconnecting the Mig torch.
HW-17 Torch Accessory Kit ......................................................................999126
Work Cable & Clamp (15 ft.) .........................................................................35881
Electrode Holder Assembly - 175 amp (15 ft.) .........................0558001791
(Includes holder, cable and quick connector)
Electrode Holder Assembly - 300 Amp (15 ft.) ................................... 21226
(Includes holder, cable and quick connector)
