25

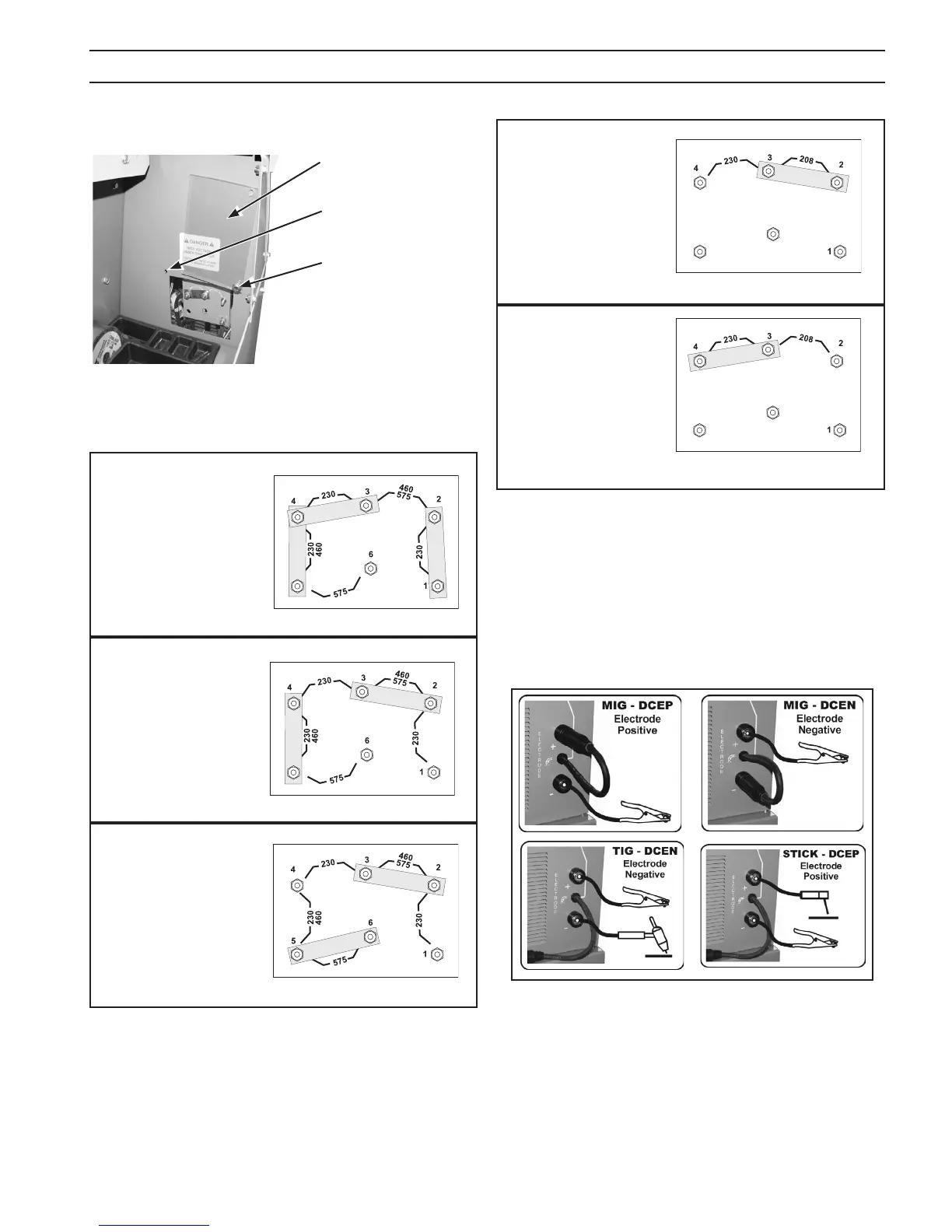

Figure 4 - Voltage Changeover Terminal Board
208/230 Version Shown Installed
Clear Panel Hinges on
corner screw
Remove this screw only
This screw must remain
in place
DO NOT REMOVE
Figure 4A -
Input Terminal Board
230/460/575 Vac Model
230 Vac Conguration
Figure 4B -
Input Terminal Board
230/460/575 Vac Model
460 Vac Conguration
Figure 4C -
Input Terminal Board
230/460/575 Vac Model
575 Vac Conguration
Figure 4D -
Input Terminal Board
208/230 Vac Model
208 Vac Conguration
Figure 4E -
Input Terminal Board
208/230 Vac Model
230 Vac Conguration
3.5 SECONDARY OUTPUT CONNEC TIONS (Figure 5)
The Multimaster 300/300X Welding System is completely self-
contained so that the front panel gun/torch connections are
internally connected to the welding polarity (DCEP or DCEN)
via the secondary output terminals depending on the welding
process being used.
Figure 5 - Polarity Set-up
SECTION 3 INSTALLATION
