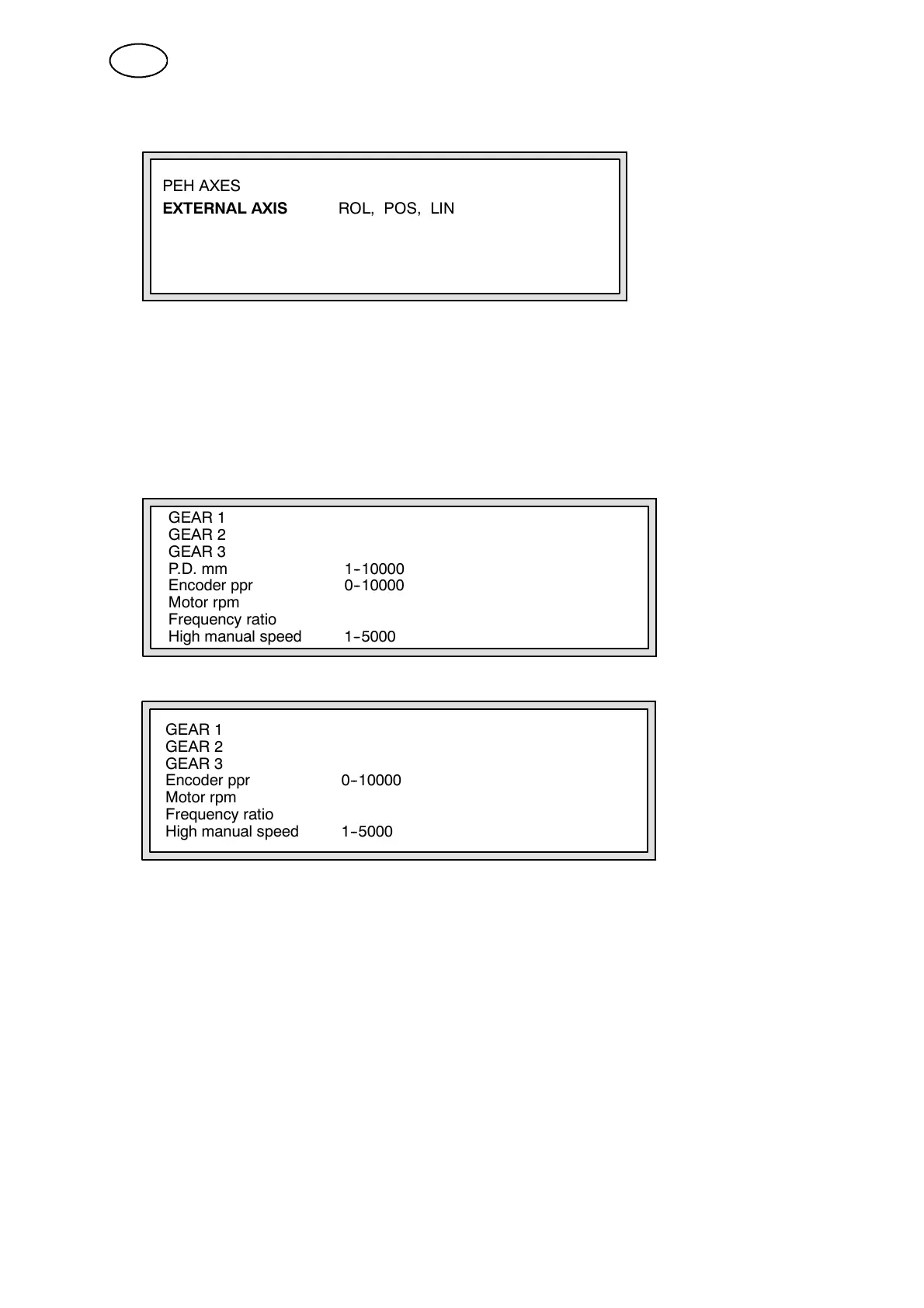

2. EXTERNAL AXIS
PEH AXES
EXTERNAL AXIS ROL, POS, LIN
The following alternatives are available:
S ROL when using external Roller bed
S POS when using external Positioner
S LIN when using external Linear axis
Availab le settings for ROL and LIN:
GEAR 1
GEAR 2
GEAR 3
P.D. mm 1--10000
Encoder ppr 0--10000
Motor rpm
Frequency ratio
High manual speed 1--5000
Available settings for POS:
GEAR 1
GEAR 2
GEAR 3
Encoder ppr 0--10000
Motor rpm
Frequency ratio
High manual speed 1--5000
“GEAR1”, “GEAR2” and “GEAR3”, see on page 33.
P.D. mm is the effective diameter of the gearwheel.
Encoder ppr is the number of pulses per revolution or tacho pulses per
revolution. The default value is 6.
“Motor rpm” is the maximum rpm for the motor.
“Frequency ratio” N1, setting frequency converter values
N2, power supply frequency in Hz
“High manual speed”, is manual travel motion with high speed.
