5 OPERATION
0446 680 001
- 21 -
© ESAB AB 2021
setting may need to be increased. Always check the roller pressure setting on a case-by-case basis by
feeding out the wire against an insulated object as described above. A table showing approximate
settings can also be found on the inside of the left door of the wire feeder.
Wire diameter (in.)
(mm)
.023
0.6
.030
0.8
.070
1.8
5/64
2.0
3/32
2.4
Pressure setting
Wire material Fe, Ss Tensioner unit 1 2.5
Tensioner unit 2 3–3.5
Cored Tensioner unit 1 2
Tensioner unit 2 2.5–3

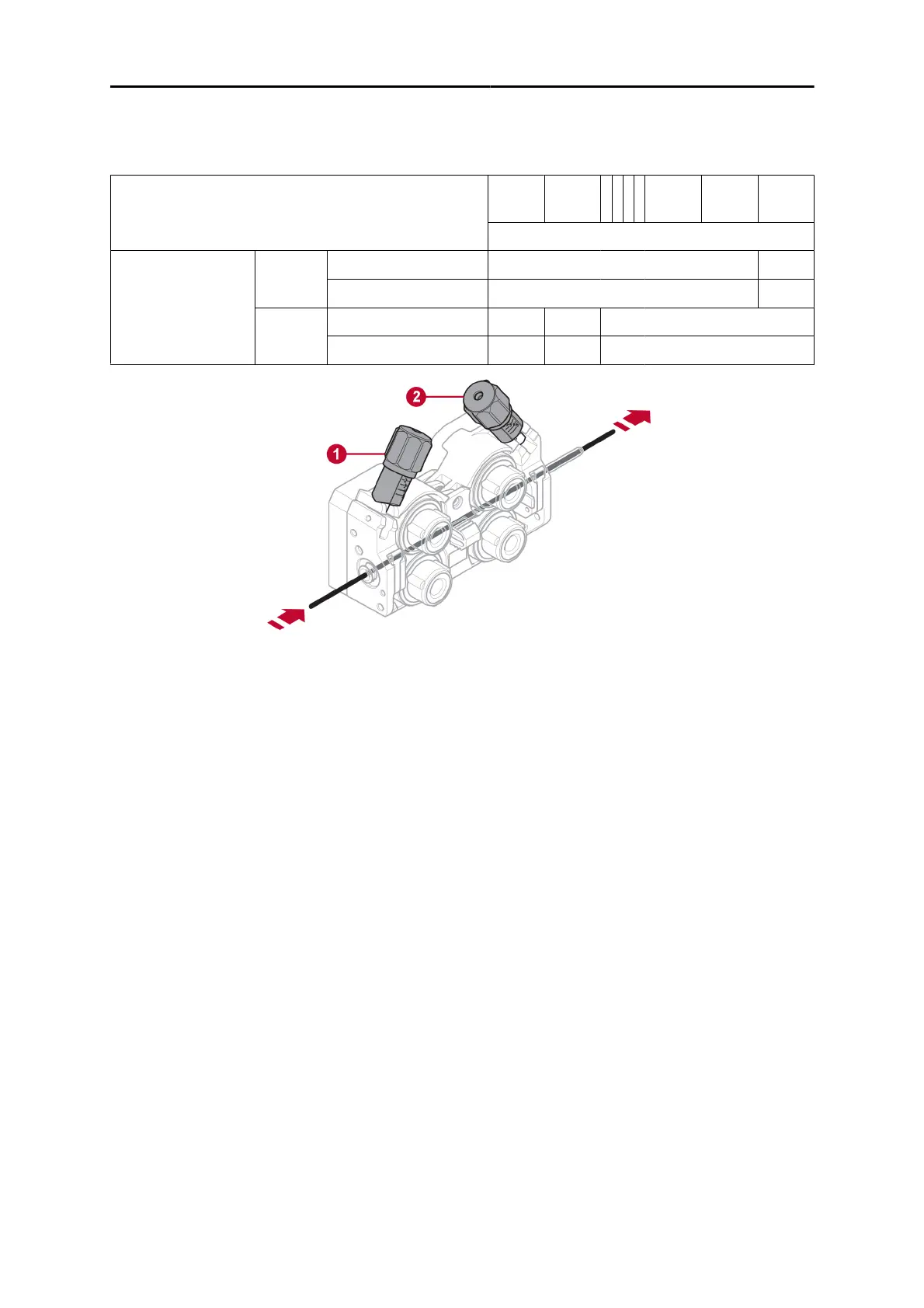

1 Tensioner unit 1 2 Tensioner unit 2
